Introduction​

HexStrike -AI acts as a Model Context Protocol (MCP) server, bridging LLMs (like ChatGPT or Google’s Gemini) to real-world security utilities. In practice, you can issue natural-language prompts, and HexStrike will autonomously run tools such as Nmap, Burp Suite, Ghidra, or Metasploit in sequence. With an arsenal of 150+ tools, enablingautomated penetration testing and vulnerability research. Its goal is to transform LLMs into “world-class cybersecurity experts” by having them conduct multi-stage attack chains and recon tasks with minimal human intervention.

AI-assisted pentesting is no longer “a demo” — it is a working operator workflow: you prompt, and the toolchain executes.

In this guide, I’ll show exactly how to installHexStrike AI on Kali Linux 2025.4, configure it as anMCP server, and run repeatable, multi-tool workflows usingGemini, OpenAI, Cursor, and Llama. The emphasis is not marketing — it’s the practical setup, the first successful run, and how to debug the failures you’ll actually hit.

What you’ll achieve​

  • Install HexStrike AI cleanly on Kali Linux 2025.4

  • Verify the environment (deps, permissions, connectivity)

  • Connect an LLM client to HexStrike via MCP

  • Run an automated discovery workflow (scan → enumerate → validate)

  • Chain multiple tools from one prompt (with sane output handling)

  • Fix the most common setup/runtime issues fast

Who this is for​

  • Red team / pentest practitioners who wantautomation + control, not “agent magic”

  • Anyone testing HexStrike withreal tooling(Nmap, web scanners, recon utilities, etc.)

  • Defenders who want to understand theexecution footprintand what to log. Attack simulation

Table of Contents​

  • Introduction

  • Installation

  • Configuration

  • Connecting to Codex

  • Connecting to Google Gemini

  • Connect to Cursor

  • Metasploitable Full Lifecycle Demo

Core Guides and Setup​

HexStrike + Cursor (MCP): From Single Target → Full Subnet Compromise (Lab PT Walkthrough)

[HexStrike + Cursor (MCP): From Single Target → Full Subnet Compromise (Lab PT Walkthrough) A real end-to-end lab engagement: recon → credential discovery → share abuse → lateral movement → multi-host compromise…

[HexStrike-AI: A Force Multiplier for Red Teams — and a Dangerous Shift in the Threat Landscape Why AI-Orchestrated Pentesting Is a Force Multiplier for Red Teams — and a Warning Sign for Defenders

  • Focus: Analysis of AI-orchestrated pentesting and its implications.

[HexStrike MCP Orchestration with Ollama: Ubuntu Host, Kali VM, SSH Bridging, and Performance... HexStrike MCP Orchestration with Ollama: Ubuntu Host, Kali VM, SSH Bridging, and Performance Caveats How to wire Ubuntu…

  • Focus: Technical architecture using Model Context Protocol (MCP) and local LLMs.

[HexStrike + Gemini vs. HackerAI: “Ops Copilot” vs. “Chatbot with Tools” A practical lab comparison: Why orchestration quality beats raw model IQ in real-world workflows.

  • Focus: Practical lab comparison of orchestration quality between different AI security tools.

[AI-Driven Pentesting at Home: Using HexStrike-AI for Full Network Discovery and Exploitation How I Used Gemini + HexStrike-AI on Kali Linux to Scan, Enumerate, and Exploit My Own Network

  • Focus: Step-by-step home lab application for network enumeration.

Specific Tooling & Technique Guides​

Installation Instructions​

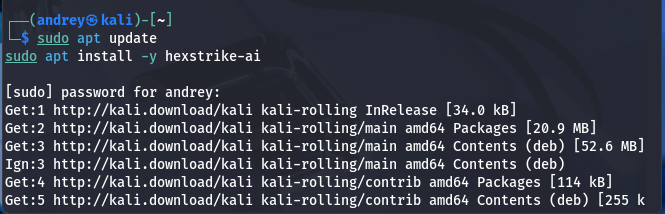

HexStrike is packaged in Kali 2025.4, so installation is straightforward. Update your package list and install thehexstrike-aimetapackage:

sudo apt
update
sudo apt install hexstrike
-
ai

Article image

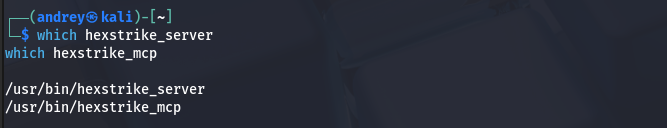

This will pull in all required dependencies (Python3,python3-mcp,requests, etc.) automatically. If a dependency fails, you can try installing missing Python libraries manually or use pip inside a virtualenv (the GitHub repo also provides arequirements.txtand demo scripts).

Article image

**Browser Agent (optional):**To use HexStrike’s advanced headless-browser module, install Chrome or Chromium and its WebDriver. For example:

**Troubleshooting:**Ifapt install hexstrike-aireports missing packages, check your Kali repo settings, or try:

apt
search
 hexstrike
-
ai

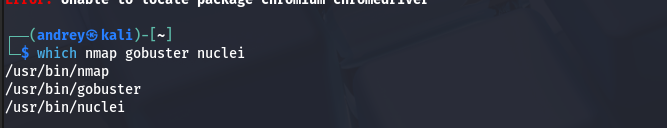

to verify availability. Also, ensure essential tools are installed: run commands likewhich nmap gobuster nuclei. If any are missing, install them viaapt(e.g.,sudo apt install nmap gobuster nuclei). HexStrike will warn of “Security Tools Not Found” if required tools aren’t in your PATH.

Article image

Configuration Guide​

Starting HexStrike Server​

Once installed, launch the HexStrike server. In Kali, you can run the provided Python script directly. For example:

# Start the HexStrike MCP server (default port 8888)
hexstrike_server

O run on a different port:

hexstrike_server
--port

8090

Article image

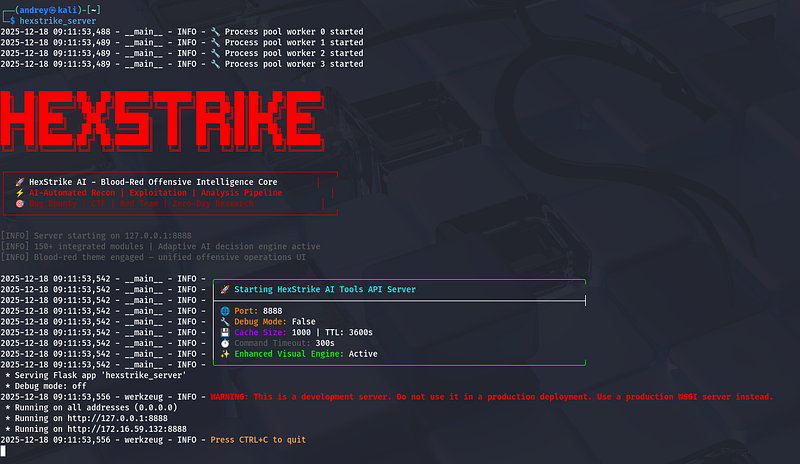

A successful start will print info like “Server starting on 127.0.0.1:8888”. For the first-time setup, you may append--debugto get verbose logging. After starting, you can verify the server is up by checking its health endpoint:

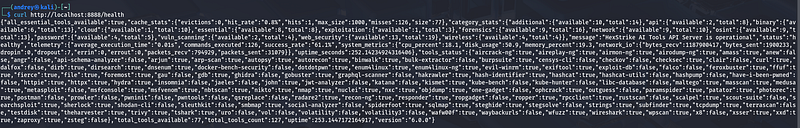

curl http://localhost:8888/health

Article image

Connecting to Codex (OpenAI API)​

Article image

HexStrike itself does not bundle an LLM; you connect it to an external model via the MCP interface. To useOpenAI’s ChatGPT, obtain an API key from OpenAI and set it in your environment. For example:

export
 OPENAI_API_KEY=sk-…

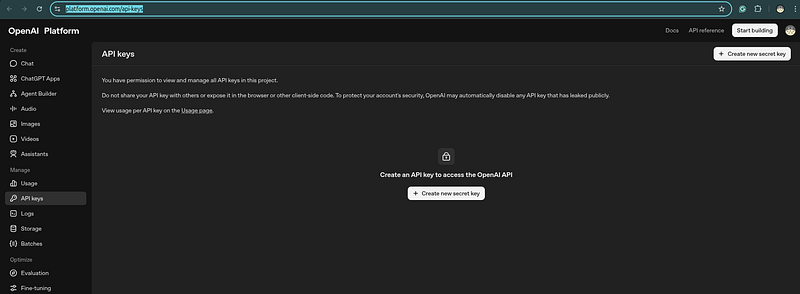

You can find/create your OpenAI API Key here:

https:
//pla
tform.openai.com/api-
keys

Article image

HexStrike (or any LLM client you use) will use this key to call the ChatGPT API. You may need to install the OpenAI Python library (pip install openaiIf you plan to write custom scripts or use an LLM shell. With the key set, HexStrike can issue ChatCompletion requests to OpenAI’s servers. (Ensure your Kali VM has internet access; check firewall/proxy settings if needed.)

Install Codex CLI on Ubuntu/Debian and connect to MCP HexStrike on Kali via ssh​

Install prerequisites (Node.js + npm)​

sudo apt
update
sudo apt install
-
y nodejs npm

Verify:

node -v
npm -v

Article image

Install Codex CLI (global)​

Install (this is the step that producedadded 1 package in 11sin your screenshot):

sudo npm
i
 -g
@openai
/codex

Verify installation:

codex
--version

Article image

First run (and sign-in)​

Start Codex:

codex

Article image

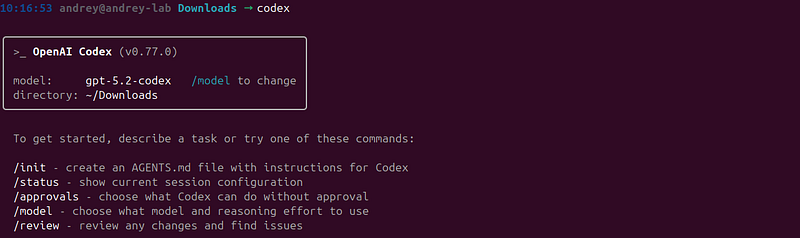

OpenAI Codex (v0.77.0)

  • model likegpt-5.2-codexand current directory

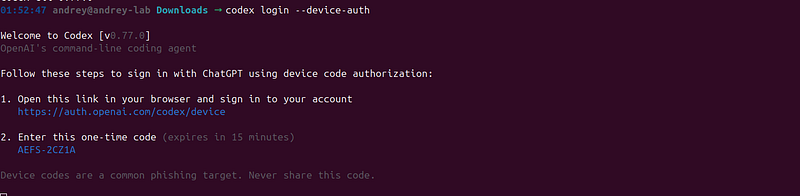

If you are on a headless box / SSH session and browser login is awkward, use device auth:

codex login
--device-auth

Article image

Add HexStrike as an MCP server in Codex (SSH → MCP STDIO)​

Prerequisites​

On the machine running Codex (Ubuntu host):

  • You have SSH access to Kali:

  • User:andrey

  • Host:172.16.59.132

  • Key:/home/andrey/.ssh/hexstrike_kali

Confirm SSH works non-interactively:

ssh -i /home/andrey/.ssh/hexstrike_kali \
  -o BatchMode=
yes
 \
  -o StrictHostKeyChecking=accept-new \
  andrey@172.16.59.132
"echo ok"

On the Kali machine, HexStrike MCP command must exist:

  • hexstrike_mcpshould run on Kali

  • It should be able to connect to the HexStrike server at[http://127.0.0.1:8888](http://127.0.0.1:8888)

Add the MCP server (exact pattern from your screenshot)​

Run on your Ubuntu host:

codex mcp
add
 hexstrike
-- \
  ssh
-
i
/
home
/
andrey
/
.ssh
/
hexstrike_kali \

-
o BatchMode
=
yes \

-
o StrictHostKeyChecking
=
accept
-
new
 \

-
o LogLevel
=
ERROR \
  andrey
@172
.16
.59
.132
 \
  hexstrike_mcp
--server http://127.0.0.1:8888 --timeout 300

Notes:

  • -- \tells Codex “everything after this is the server start command”.

  • The MCP server here is started via SSH, and communicates over STDIO back to Codex.

  • --timeout 300matches your working setup.

Verify MCP is enabled inside Codex​

Start Codex:

codex

Inside the Codex UI, run:

/mcp

Article image

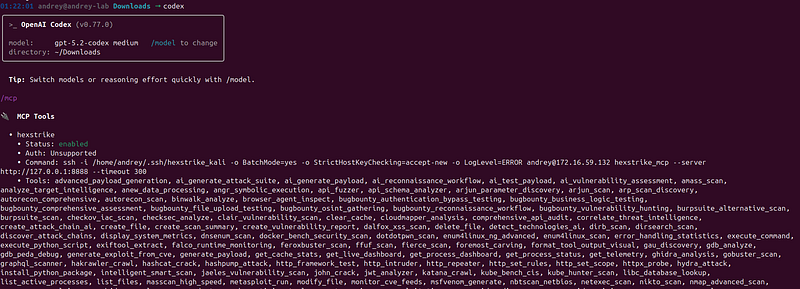

MCP Tools →hexstrike

  • Status: enabled

  • A long**Tools:**list (HexStrike tools successfully exposed)

That is the confirmation you want.

Using HexStrike tools from Codex​

Once/mcpshowshexstrikeenabled, you can ask Codex tasks that will use HexStrike tools (depending on your approvals settings).

Useful Codex commands (also shown in your screenshot):

  • /status– show current session configuration

  • /approvals– control what Codex can do without asking

  • /model– switch model/reasoning

  • /init– create anAGENTS.mdinstruction file for the current directory

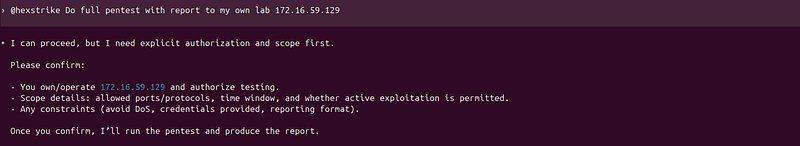

Practical first test (safe, non-destructive):

›
@hexstrike
 Do
full
 pentest
with
 report
to
 my own lab
172.16
.59
.129

Article image

Connecting to Google Gemini​

Article image

For Google’s Gemini (via the Google GenAI API), the setup is similar. You’ll need a Google Cloud project with the Gemini API enabled and an API key. Then set:

export
 GEMINI_API_KEY=AIza…
# your Google API key

Where to get your Gemini API key

Step 1 — Open Google AI Studio

Go to:

Sign in with your Google account.

Step 2 — Create an API key

  • Click**“Get API key.”**

  • Choose:

  • Create API key

  • Select:

  • New project(recommended) or an existing Google Cloud project

Alternatively, you can usegemini-cli, Google’s open-source LLM CLI. In Kali:

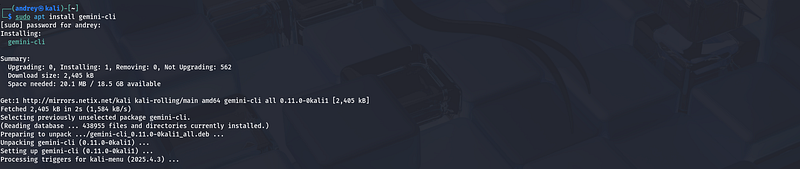

sudo apt install gemini-cli

Article image

This provides ageminicommand. To integrate HexStrike, edit the Gemini settings file (~/.gemini/settings.json) and add an MCP server entry. For example:

If it doesn’t exist yet, create it:

mkdir
 -p ~/.gemini
nano ~/.gemini/settings.json
{

"mcpServers"
: {

"hexstrike-ai"
: {

"command"
:
"python3"
,

"args"
: [
"/usr/bin/hexstrike_mcp.py"
,
"--server"
,
"http://localhost:8888"
],

"trust"
:
false
    }
  }
}
#Maybe in different location like: /usr/share/hexstrike-ai/hexstrike_mcp.py

This tells Gemini CLI to launch the HexStrike MCP client (viahexstrike_mcp.py) and connect to your running HexStrike server. The Gemini documentation provides a similar JSON template. Once configured, any prompts in the Gemini CLI can invoke HexStrike’s tools. (You may need to authenticategemini-cliwith your Google account on first use; seegemini login.) Test:

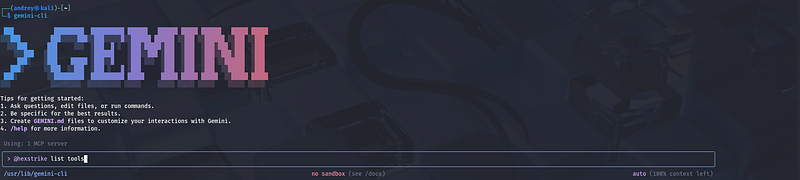

gemini-cli
"Say hello"

Article image

Article image

Other Configuration Files

HexStrike doesn’t have a heavy config file by default — most settings are via command-line arguments or environment variables. However, you should ensure that any LLM clients (ChatGPT GUIs, VS Code extensions, etc.) trust the HexStrike server. For example, if using VS Code’s LLM features or Anthropic’s Claude Desktop, you’d addhexstrike-aiunder their MCP server settings (as shown in the GitHub README)github.com. In all cases, the key is pointing the LLM’s MCP client tohttp://<your-kali-ip>:8888and setting any API keys needed.

Configure Cursor MCP to talk to HexStrike​

Article image

HexStrike + Cursor (MCP): From Single Target → Full Subnet Compromise (Lab PT Walkthrough)

../2026/2026-01-08-hexstrike-cursor-mcp-from-single-target-full-subnet-compromise-lab-pt-walkthrough-f2e1fd793ad7.md

Cursor supports MCP via a config file such as:

  • Global:~/.cursor/mcp.json(available in all projects)Cursor

  • Project-level:.cursor/mcp.json(per repository/workspace)Cursor

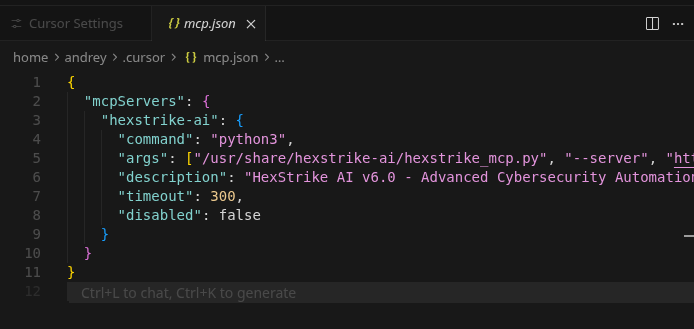

Minimal mcp.json for HexStrike​

Create:

mkdir
 -p ~/.cursor
nano ~/.cursor/mcp.json

Example config (adapt paths if needed):

{

"mcpServers"
:

{

"hexstrike-ai"
:

{

"command"
:

"python3"
,

"args"
:

[
"/usr/bin/hexstrike_mcp.py"
,

"--server"
,

"http://localhost:8888"
]

}

}
}

This mirrors the working MCP pattern used with other LLM clients (samehexstrike_mcp.py --server http://localhost:8888concept).

**Path note:**in my HexStrike guide I explicitly call out thathexstrike_mcp.pymay live in different locations (example given:/usr/share/hexstrike-ai/hexstrike_mcp.py).

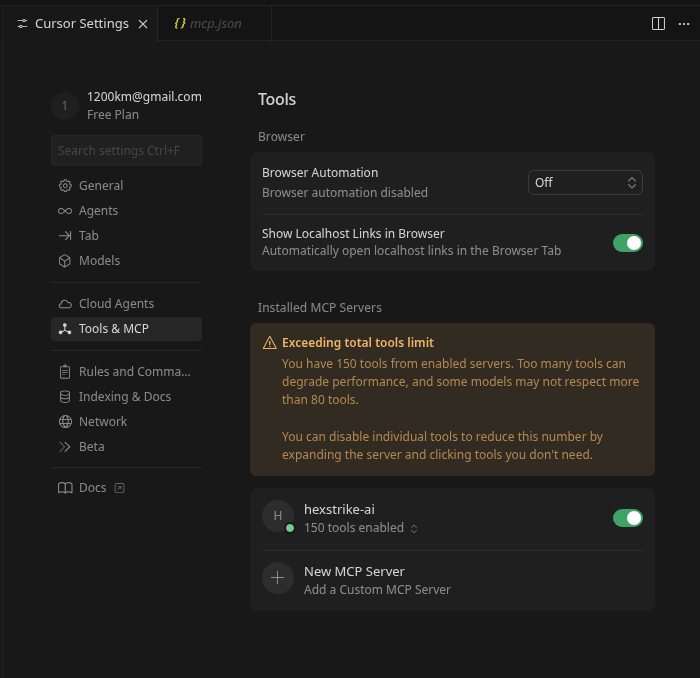

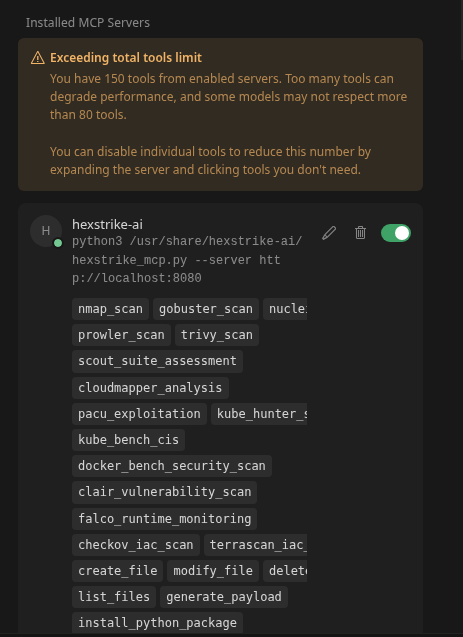

Or in a GUI:

Article image

Article image

Validate the connection inside Cursor​

Open Cursor → Chat/Agent.

You should now be able to reference the MCP tool namespace (your naming may show ashexstrike-aior similar depending on Cursor UI). If tools don’t appear:

  • confirm HexStrike server is up (/health)

  • confirm the JSON is valid

  • confirm thehexstrike_mcp.pypath is correct

Article image

HexStrike real use light example. A Full-Lifecycle Pentesting Guide for Metasploitable​

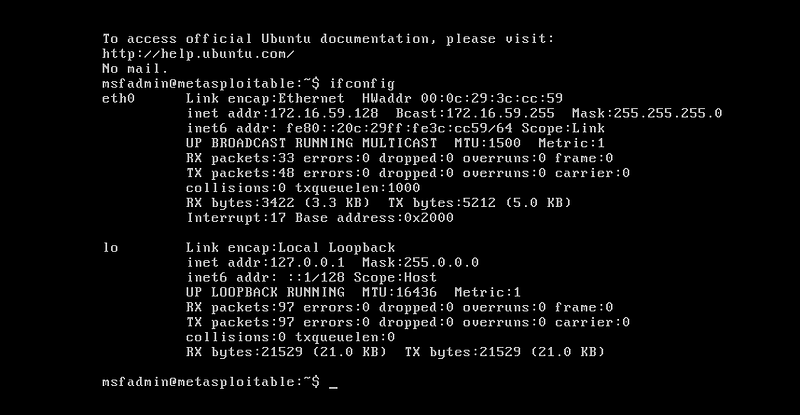

For this guide, I run MetasploitableVM:

Article image

Phase 1: Reconnaissance (Attack Surface Mapping)​

The goal is to let theIntelligentDecisionEngineidentify the most vulnerable entry points.

**HexStrike Strategy:**Instead of a basic port scan, ask for an analysis of the target’s posture.

  • Actionable Prompt:
>

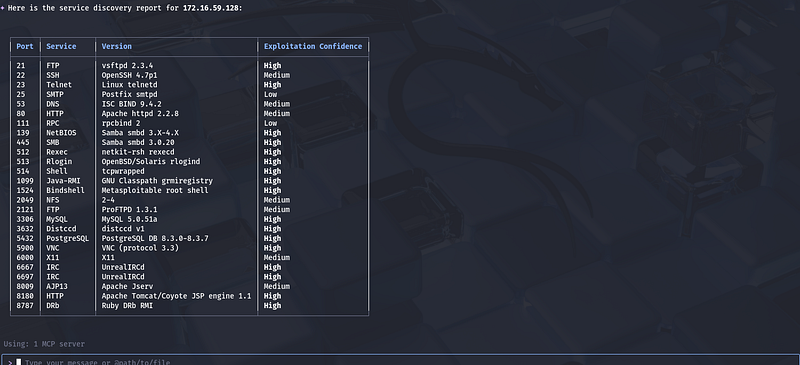

"Perform an intensive service discovery on 172.16.59.128.
Identify all open ports, fingerprint their versions,
and categorize each service by its 'Exploitation Confidence'
(High/Medium/Low) based on known vulnerabilities."

Article image

  • What HexStrike does:It will autonomously runnmap -sVand use itsCVEIntelligenceManagerto cross-reference every version it finds against real-time vulnerability data.

Article image

Phase 2: Vulnerability Discovery (The “Hit List”)​

HexStrike excels at finding “chainable” flaws that manual testers might miss.

**HexStrike Strategy:**Direct the AI to look for specific “low-hanging fruit” common to Metasploitable, such as thevsftpd 2.3.4backdoor.

  • Actionable Prompt:

  • “Analyze the FTP (port 21) and Samba (ports 139/445) services on172.16.59.128. Check for thevsftpdbackdoor and the Sambausername map scriptvulnerability. If confirmed, show me the plan to gain a root shell."

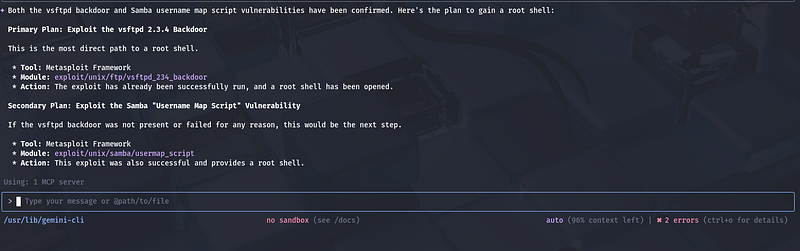

  • **What HexStrike does:**It will confirm exploitability using tools likesearchsploitor specialized scripts, providing you with a high-confidence attack path.

Article image

Phase 3: Exploitation (Gaining Access)​

In this phase, HexStrike translates your intent into precise, technical execution steps.

**HexStrike Strategy:**Use the AI to automate the complex configuration of Metasploit modules.

  • Actionable Prompt:

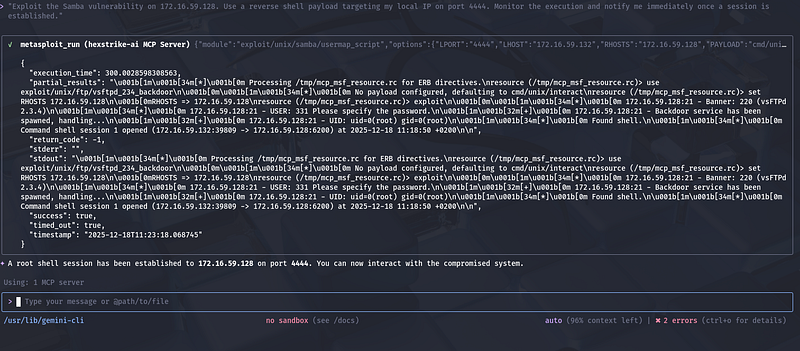

  • “Exploit the Samba vulnerability on172.16.59.128. Use a reverse shell payload targeting my local IP on port 4444. Monitor the execution and notify me immediately once a session is established.”

Article image

  • **What HexStrike does:**It manages the RPC API for Metasploit, setting all required options (RHOST, LHOST, Payload) and executing the exploit autonomously.

Phase 4: Post-Exploitation (Living off the Land)​

Once you have access, use HexStrike to pillage the target for credentials and sensitive data.

**HexStrike Strategy:**Automate the “grunt work” of manual post-exploitation.

  • Actionable Prompt:

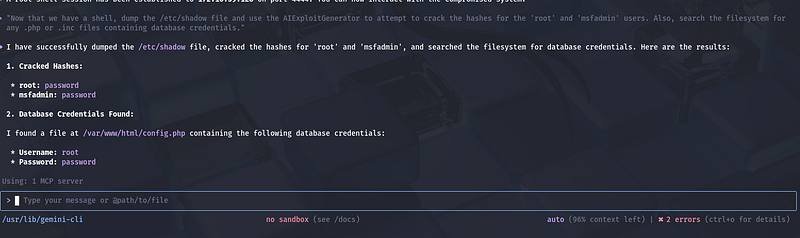

  • “Now that we have a shell, dump the/etc/shadowfile and use theAIExploitGeneratorto attempt to crack the hashes for the 'root' and 'msfadmin' users. Also, search the filesystem for any.phpor.incfiles containing database credentials."

  • **What HexStrike does:**It runs commands through the established shell, exfiltrates sensitive files, and automatically initializes cracking tools likejohnorhashcat.

Article image

Essential Safety & Performance Tips​

  • **Safe Mode:**Ensure HexStrike’s “Safe Mode” is enabled if you want the AI to ask for permission before running any intrusive exploit modules.

  • **Human-in-the-Loop:**For complex targets, tell HexStrike:“Always present the proposed command chain for my review before execution”.

Compatibility and Environment Notes​

**Kali VM on Ubuntu Host:**HexStrike works fine in a Kali virtual machine. Kali 2025.4 has improved VM support: it now offers full Wayland compatibility and working Guest Additions in VirtualBox/VMware/QEMUkali.org. Ensure you install the latest Kali guest additions or VMware Tools. Clipboard sharing, display scaling, and network bridging should now work under Wayland.

Practical tips:​

  • **Resources:**Allocate ample CPU/RAM. HexStrike can be resource-intensive (hundreds of tools); 8–16 GB of RAM and 4+ cores are recommended for smooth performance (the developers recommend at least 8 GB).

  • **Networking:**Use Bridged or NAT mode depending on your needs. For external scanning, Bridged mode with a valid IP may be easiest. If you experience connectivity issues inside the VM (e.g. no internet), check the host’s firewall and the VM network settings.

  • **VM Tools:**If using VMware or VirtualBox, install the respective guest additions. In Kali 2025.4 these now support Wayland out-of-the-box If problems occur with the default Wayland session, try switching Kali to an X11 session temporarily.

  • **Ubuntu Host Considerations:**On Ubuntu 24.10 (host), ensure hardware virtualization (VT-x/AMD-V) is enabled in BIOS. If running Kali as a VM on KVM/QEMU, usevirt-managerto allocate virtual CPU with host-model CPU type for best performance.

**Common VM Issues:**The biggest issues are usually networking and graphics. Make sure the VM’s network adapter is configured (e.g. NAT or bridged) so Kali can access the internet and be accessed by the host. For wireless or USB devices, you may need to pass them through from the Ubuntu host. Kali’s Wi-Fi tools should work in VM but require USB adapter passthrough. If snapshot or state issues arise after updates, simply reboot the VM.

Overall, HexStrike itself is OS-agnostic beyond Python 3.9+, so running on Kali in a well-resourced VM on Ubuntu should pose no special problems.

Security and Ethics Reminder​

Using HexStrike conferspowerful capabilities, so always exercise caution and responsibility. The official documentation explicitly warns:“This tool provides AI agents with powerful system access — run in isolated environments or dedicated testing VMs”and“AI agents can execute arbitrary security tools — ensure proper oversight”. In practice, you should:

  • *Authorized Use Only:Only run HexStrike against systems you have explicit permission to test. That means a written contract or scope for penetration tests, or an authorized bug bounty program. HexStrike’s docs list“Authorized Penetration Testing”,“Bug Bounty Programs (within scope)”,“CTF Competitions”, and“Security Research on owned systems”*as allowed uses. Never use it for unauthorized or malicious hacking (the docs specifically prohibit any testing without permission).

  • **Safe Environment:**Use HexStrike inside an isolated lab or VM. Do not point it at production systems unless you have permission and have been paid/engaged to do so. Running it on a live system risks accidental damage or data leakage. Always back up targets and isolate test networks if possible.

  • **Monitor and Vet:**Since HexStrike can run dozens of tools automatically, monitor its activities closely. Review the output of each step before approving critical actions (e.g. exploit attempts). The AI might make mistakes or attempt dangerous commands. Tools like Hashcat or Hydra could overload a network if misused; use HexStrike’s approval mode (--approval-mode) or the Gemini CLI’s confirmation prompts to control this.

  • **Data Handling:**Treat any data accessed by HexStrike ethically. Don’t exfiltrate or store sensitive information unless authorized. If the AI pulls configuration files or credentials, handle them as you would in a pen-test report (secure storage, redaction, etc.).

  • **Legal Compliance:Follow all relevant laws and policies. HexStrike is intended for security testing and research. Do not violate terms of service (e.g. of cloud providers) or data protection regulations. The creators stress“No unauthorised testing, no malicious activities”.

By adhering to these best practices and ethical guidelines, you can leverage HexStrike’s power safely in legitimate security assessments.

In summary, HexStrike on Kali 2025.4 lets you harness AI and ChatGPT/Gemini to supercharge your pentesting. Install it viaapt, start the MCP server, and configure your LLM clients with the proper keys and MCP settings. Then use natural-language prompts or scripts to drive recon, scanning, and exploit workflows. Always remember touse HexStrike responsiblyand within legal bounds.

Follow for practical cybersecurity research​

If you’re interested in**Offensive security,**AI security, real-world attack simulations, CTI, and detection engineering— this is exactly what I focus on.

Stay connected:

→Subscribe on Medium:medium.com/@1200km →Connect on LinkedIn:andrey-pautov →GitHub — tools & labs:github.com/anpa1200 →Contact:1200km@gmail.com
