Deploying Fluent Bit as a Windows Service for Centralized Log Forwarding

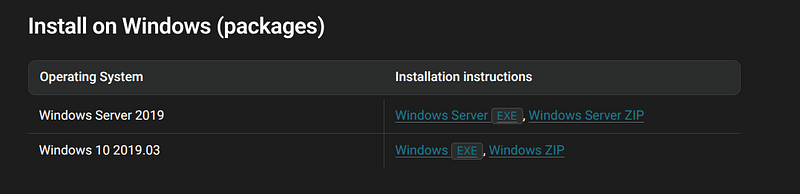

Cover image

Article Metadata

Ecosystem Fit​

This page mirrors the original Medium article into the 1200km.com Docusaurus ecosystem. The original article flow, images, screenshots, infographics, and technical blocks are preserved from the export.

A step-by-step guide to collecting Windows Event Logs and securely shipping them to PortX — XPLG (other log collector) using Fluent Bit​

Overview​

Fluent Bit is a lightweight log forwarder that can collect, filter, and ship logs from Windows to your central logging platform (PortX/XpoLog in your case).

You’ll install it as aWindows serviceso that it starts automatically and continuously forwards logs.

1. Folder Structure​

Create the following structure under C:\fluent-bit:

C:
\fluent-bit\
│
├── bin\
│   └── fluent-bit.exe
│
├── conf\
│   ├── fluent-bit.conf       ← (your main config file: fb.conf)
│   ├── parsers.conf          ←
optional
,
if
 you define extra parsers
│   └── plugins.conf          ←
optional
,
for
 external plugins
│
└── storage\
    └── (
auto
-created
by
 Fluent Bit)

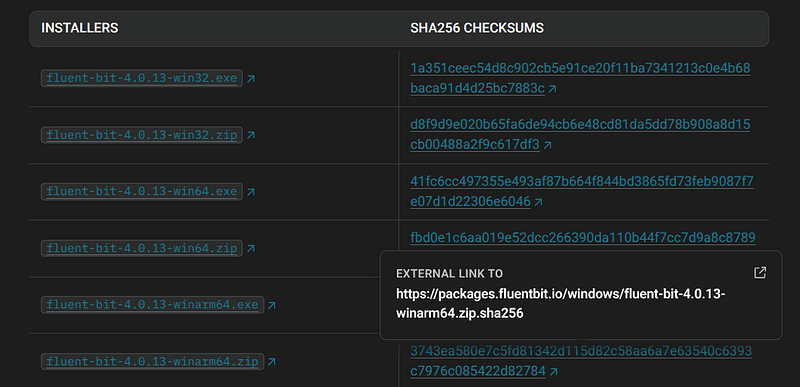

2. Install Fluent Bit​

Article image

Article image

  1. Extract the archive intoC:\fluent-bit\.

  2. Confirm thatC:\fluent-bit\bin\fluent-bit.exeexists.

  3. Configure your FluentBit

For example, my configuration:

[
SERVICE
]

# Flush

# =====

# set an interval of seconds before to flush records to a destination
    flush
5

# Daemon

# ======

# instruct Fluent Bit to run in foreground or background mode.
    daemon       Off

# Log_Level

# =========

# Set the verbosity level of the service, values can be:

#

# - error

# - warning

# - info

# - debug

# - trace

#

# by default 'info' is set, that means it includes 'error' and 'warning'.
    log_level    info

# Parsers File

# ============

# specify an optional 'Parsers' configuration file
    parsers_file parsers.conf

# Plugins File

# ============

# specify an optional 'Plugins' configuration file to load external plugins.
    plugins_file plugins.conf

# HTTP Server

# ===========

# Enable/Disable the built-in HTTP Server for metrics
    http_server
On
    http_listen
0.0
.
0.0
    http_port
2020

# Storage

# =======

# Fluent Bit can use memory and filesystem buffering based mechanisms

#

# - https://docs.fluentbit.io/manual/administration/buffering-and-storage

#

# storage metrics

# ---------------

# publish storage pipeline metrics in '/api/v1/storage'. The metrics are

# exported only if the 'http_server' option is enabled.

#
    storage.metrics
on

# storage.path

# ------------

# absolute file system path to store filesystem data buffers (chunks).

#
    storage.path
C
:
\fluent-bit\storage

# storage.sync

# ------------

# configure the synchronization mode used to store the data into the

# filesystem. It can take the values normal or full.

#
    storage.sync full

# storage.checksum

# ----------------

# enable the data integrity check when writing and reading data from the

# filesystem. The storage layer uses the CRC32 algorithm.

#

# storage.checksum off

# storage.backlog.mem_limit

# -------------------------

# if storage.path is set, Fluent Bit will look for data chunks that were

# not delivered and are still in the storage layer, these are called

# backlog data. This option configure a hint of maximum value of memory

# to use when processing these records.

#
    storage.backlog.mem_limit
128
M
[
INPUT
]
    Name         winlog
    tag          winlog
    Channels     Security,Application,System
    Interval_Sec
1
    DB
C
:
\fluent-bit\winlog.sqlite
    storage.
type
 filesystem
    Mem_Buf_Limit
128
M
#[INPUT]
#    name      tail
#    path      [ENTER_ABSOLUTE_PATH_TO_LOGS]
#    storage.type filesystem
#    DB           C:\fluent-bit\tail.sqlite
#    Path_key    filepath
#    Mem_Buf_Limit 128M
#[FILTER]
#    Name modify
#    Match tail
#    Add fluentbittype tail
[
FILTER
]
    Name modify
    Match winlog
    Add fluentbittype winlog
    Copy Channel filepath
[
OUTPUT
]
    Name http
    Match *
    Host
172.16
.
11.1
    Port
30443
    URI /logeye/api/logger.jsp?token
=
53
db5aff-
207
b-
457
e-
9
a19-
5
db73e24a864
    Format json
    header_tag message
    tls
On
    tls.verify Off
    Retry_Limit
False
    storage.total_limit_size
10
G
  1. Copy yourfb.conffile into C:\fluent-bit\conf\fluent-bit.conf.

3. Verify Configuration​

Run this command manually to ensure the configuration is valid:

cd
 C:\fluent-bit\bin
.\fluent-bit.exe -c
"C:\fluent-bit\conf\fluent-bit.conf"

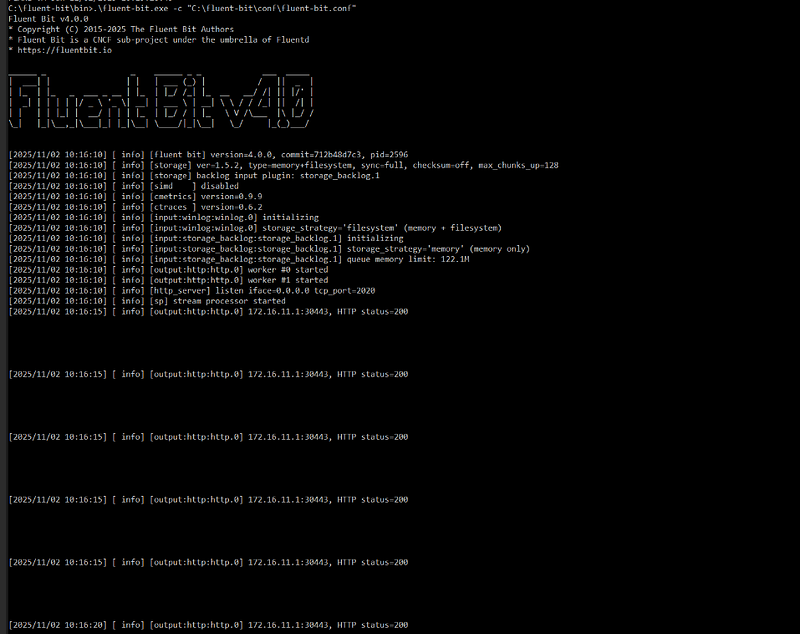

You should see log lines like:

Article image

Stop withCtrl + Cwhen ready.

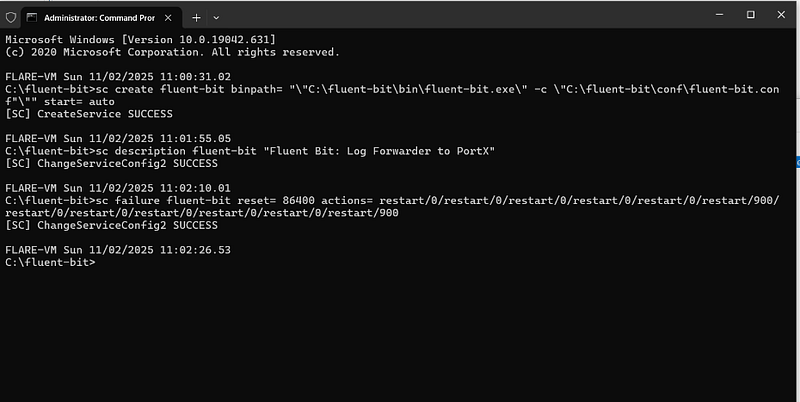

4. Install as a Windows Service​

Run the followingin an elevated PowerShell or CMD(as Administrator):

sc
create
 fluent
-
bit binpath
=
 "\"C:\fluent
-
bit\bin\fluent
-
bit.exe\" -c \"C:\fluent
-
bit\conf\fluent
-
bit.conf\""
start
=
 auto
sc description fluent
-
bit "Fluent Bit: Log Forwarder to PortX"
sc failure fluent
-
bit reset
=

86400
 actions
=
 restart
/
0
/
restart
/
0
/
restart
/
900

Article image

Then start it:

sc
start
 fluent
-
bit

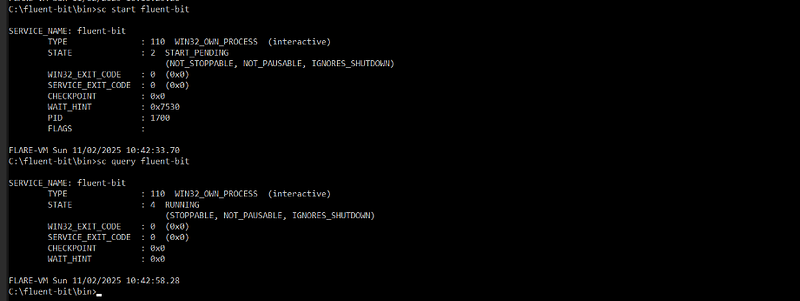

Check status:

sc
query
 fluent-bit

You should see:

Article image

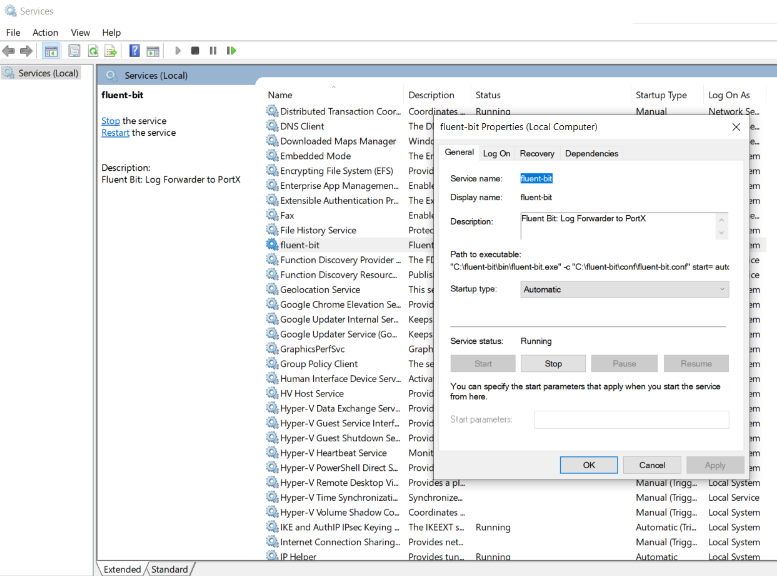

5. GUI Verification​

OpenServices (services.msc)→ locatefluent-bit → ensure:

  • Startup Type= Automatic

  • Service Status= Running

  • Path to executable= “C:\fluent-bit\bin\fluent-bit.exe” -c “C:\fluent-bit\conf\fluent-bit.conf”

Article image

Troubleshooting: Error 1057 / Error 1067​

1. Check your Fluent Bit configuration​

  • Run interactively to reveal the real error:
cd
 C:\fluent-bit\bin .\fluent-bit.exe -c
"C:\fluent-bit\conf\fluent-bit.conf"

  • Look for syntax issues, wrong indentation, or unsupported parameters.

  • Common problems: wrong section names ([SERVICE],[INPUT], etc.), missing paths, or duplicate directives.

2. Check HTTPS output configuration​

If you send logs via HTTPS, confirm these lines are correct:

[
OUTPUT
]
    Name  http
    tls
On
    tls.verify Off
# or On if you have valid CA chain

  • A wrong or unreachable HTTPS endpoint can make Fluent Bit exit instantly → error 1067.

  • Test reachability:

Test-NetConnection
172.16
.11
.1
 -Port
30443
 curl -k https:
//172.16.11.1:30443/

3. If you copied the Fluent Bit working directory from another machine​

Remove anypersistent databefore starting the service:

del
 /Q
"C:\fluent-bit\storage\*"
del
 /Q
"C:\fluent-bit\*.sqlite"
  • Old checkpoint or DB files (e.g.,winlog.sqlite,tail.sqlite) tied to another system path can crash initialization.

4. Verify all file paths​

Ensure every referenced path exists and is accessible by the service account:

  • C:\fluent-bit\bin\fluent-bit.exe

  • C:\fluent-bit\conf\fluent-bit.conf

  • C:\fluent-bit\storage\

  • C:\fluent-bit\winlog.sqlite(auto-created but needs folder write rights)

  • Optional:C:\fluent-bit\tail.sqlite

Useabsolute pathsonly — relative paths often cause Error 1057 (bad command line) or Error 1067 (crash).

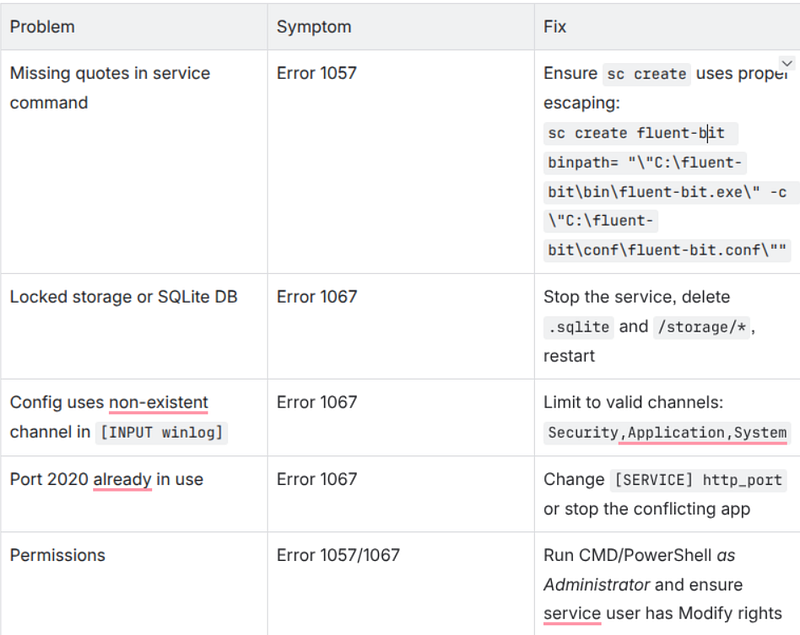

Extra quick checks​

Article image

If all above fails​

  • Delete and recreate the service cleanly:
sc stop fluent
-
bit sc
delete
 fluent
-
bit sc
create
 fluent
-
bit binpath
=
 "\"C:\fluent
-
bit\bin\fluent
-
bit.exe\" -c \"C:\fluent
-
bit\conf\fluent
-
bit.conf\""
start
=
 auto sc
start
 fluent
-
bit
  1. Watch live logs interactively again to pinpoint the crash reason.
