Ecosystem Fit
This page mirrors the original Medium article into the 1200km.com Docusaurus ecosystem. The original article flow, images, screenshots, infographics, and technical blocks are preserved from the export.
Deploy Fluent Bit as a DaemonSet with full metadata enrichment, RBAC, and HTTP output to XPLG for real-time observability
What is Fluent Bit?
Fluent Bitis a lightweight and high-performance log processor and forwarder. It collects logs from files, systemd, or containers (like Docker or Kubernetes pods), enriches them with metadata, transforms if needed, and routes them to various destinations (e.g., Elasticsearch, S3, HTTP APIs).
Key Features:
-
Resource-efficient (~450KB memory)
-
Built-in support for Kubernetes metadata enrichment
-
Pluggable architecture (inputs, filters, outputs)
-
Supports log forwarding to HTTP, Elasticsearch, Kafka, and more
-
Cloud-native and optimized for Kubernetes (via DaemonSet or Sidecar)
In our setup, Fluent Bit:
-
Tails logs from all containers
-
Enriches them with Kubernetes metadata (namespace, pod, labels, etc.)
-
Sends them via HTTP directly to XPLG
What is XPLG?
XPLGis an advanced observability and log analytics platform built to provide full visibility into your applications, infrastructure, and security landscape. It enables real-time log collection, storage, search, visualization, and alerting across hybrid and cloud-native environments.
Key Capabilities:
-
High-performance log indexing and querying
-
Real-time anomaly and threat detection
-
Interactive dashboards and alerting
-
Agentless log collection or via Fluent Bit, Fluentd, Syslog, and API
-
Supports cloud, on-prem, and hybrid deployments
-
Built-in support for MITRE ATT&CK mapping and security detection rules
In this guide, we useFluent Bit to push logs from EKSdirectly to XPLG’sHTTP Listener API, enabling powerful monitoring and detection based on Kubernetes logs.
Prerequisites
-
Access to an AWS account with permission to configure EKS
-
EKS cluster deployed (fluentbit-andrey in this case)
-
kubectl, aws-cli and eksctl installed
-
Fluent Bit-compatible XPLG listener with a valid token
-
Kubernetes >= 1.32
-
VPC and networking set up for cluster internal communication
What is a DaemonSet in AWS EKS?
DaemonSetis a core Kubernetes controller that ensuresexactly one copy of a specific Pod is running on every nodein your Amazon EKS cluster. As new nodes join the EKS cluster, the DaemonSetautomatically deploys Fluent Biton them. If nodes are removed, Kubernetescleans up the associated Fluent Bit Pods.
Reference:http://kubernetes.io

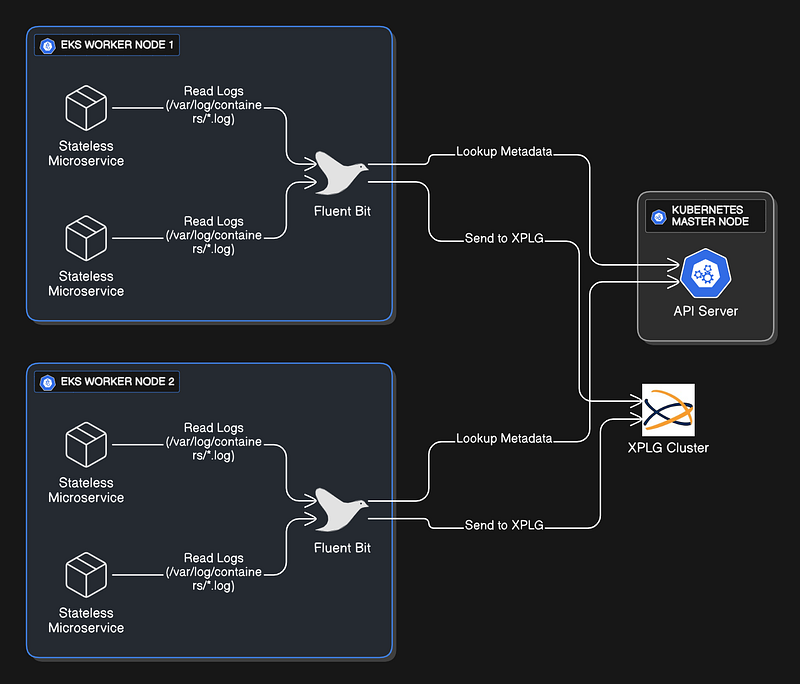

Why Fluent Bit Uses a DaemonSet in EKS
In Amazon EKS, logs generated by containers (running on EC2 or Fargate nodes) arestored locallyon each node in these paths:
-
/var/log/containers/*.log — symbolic links to container logs
-
/var/log/pods/<namespace><pod><uid>/ — pod-level directories
-
/var/lib/docker/containers/<cid>/<cid>-json.log — legacy Docker format
Becauselogs live on the node that runs the pod, Fluent Bit needsnode-local accessto read them. That’s why the DaemonSet pattern is essential: it runs one Fluent Bit agentper node, ensuring it can directly tail and ship logs from local disk to your logging backend.
Deploying Fluent Bit as a DaemonSet in EKS is the officially recommended and production-ready pattern for scalable, reliable, and secure log collection.
Important:
If you operate multiple EKS clusters, you must deploy the Fluent Bit DaemonSet separately on each cluster.
Kubernetes objects like DaemonSets are cluster-scoped and cannot be shared across clusters.
Even if all your clusters send logs to a centralized log destination (like XPLG, CloudWatch, or S3), each cluster still requires its own Fluent Bit DaemonSet to collect logs from local nodes.
1. Connect to AWS & Your Cluster

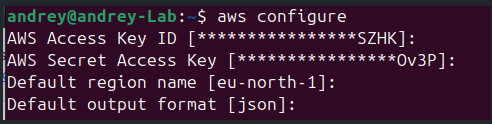

Configure AWS credentials:
aws configure
2. Connect kubectl to EKS:
aws eks update-kubeconfig
--region
<cluster_region>
--name
<cluster_name>
Optional: Set environment variables:
export
CLUSTER
=
"fluentbit-andrey"
export
REGION=
"eu-north-1"
export
ACCOUNT_ID=
"655536767854"

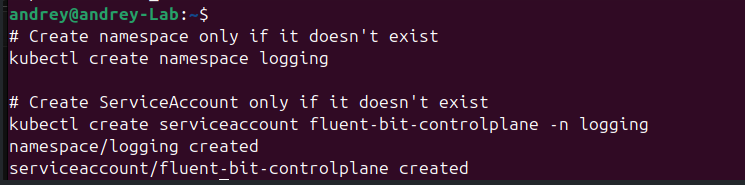

3. Create (or verify) the Kubernetes namespace and Service Account.
# Create namespace only if it doesn't exist
kubectl create namespace logging
# Create ServiceAccount only if it doesn't exist
kubectl create serviceaccount fluent-bit-controlplane -n logging
4. Configure RBAC
RBAC (Role-Based Access Control) ensures Fluent Bit can read Kubernetes metadata like pod names and labels, but without giving it write access.
-
ClusterRole: Grants read-only access to pods and namespaces.
-
ServiceAccount: Identity for Fluent Bit pods.
-
ClusterRoleBinding: Links the role to the ServiceAccount.
Create RBAC config for Fluent Bit
apiVersion:
rbac.authorization.k8s.io/v1
kind:
ClusterRole
metadata:
name:
fluent-bit-read
rules:
-
apiGroups:
[
""
]
resources:
[
"pods"
,
"namespaces"
]
verbs:
[
"get"
,
"list"
,
"watch"
]
---
apiVersion:
rbac.authorization.k8s.io/v1
kind:
ClusterRoleBinding
metadata:
name:
fluent-bit-read
roleRef:
apiGroup:
rbac.authorization.k8s.io
kind:
ClusterRole
name:
fluent-bit-read
subjects:
-
kind:
ServiceAccount
name:
fluent-bit
namespace:
logging
Apply it:
kubectl apply -f rbac.
yaml
5. Create Fluent Bit Configuration (ConfigMap)
nano fluent-bit-
config
.yaml
Full yaml includes RBAC. Just change the token and requirements
# --- NAMESPACE ---
apiVersion:
v1
kind:
Namespace
metadata:
name:
logging
# Create a dedicated namespace for Fluent Bit and logging components
# --- SERVICE ACCOUNT ---
---
apiVersion:
v1
kind:
ServiceAccount
metadata:
name:
fluent-bit
# Service account Fluent Bit will use
namespace:
logging
# Must be in the same namespace as the DaemonSet
# --- RBAC: Role and Binding ---
---
apiVersion:
rbac.authorization.k8s.io/v1
kind:
ClusterRole
metadata:
name:
fluent-bit-read
rules:
-
apiGroups:
[
""
]
resources:
-
namespaces
-
pods
# Needed to get metadata for enrichment
verbs:
[
"get"
,
"list"
,
"watch"
]
# Read-only permissions
---
apiVersion:
rbac.authorization.k8s.io/v1
kind:
ClusterRoleBinding
metadata:
name:
fluent-bit-read
roleRef:
apiGroup:
rbac.authorization.k8s.io
kind:
ClusterRole
name:
fluent-bit-read
subjects:
-
kind:
ServiceAccount
name:
fluent-bit
namespace:
logging
# Binds the role to our ServiceAccount
# --- CONFIGMAP: Fluent Bit Configuration Files ---
---
apiVersion:
v1
kind:
ConfigMap
metadata:
name:
fluent-bit-config
namespace:
logging
labels:
app.kubernetes.io/name:
fluent-bit
data:
fluent-bit.conf:
|
[SERVICE]
Flush 5 # Flush logs every 5 seconds
Daemon Off # Run in foreground
Log_Level info # Log verbosity
Parsers_File parsers.conf # Use custom parser
HTTP_Server On # Enable health check server
HTTP_Listen 0.0.0.0
HTTP_Port 2020 # Health check port
@INCLUDE
inputs.conf
# Include log input config
@INCLUDE
filters.conf
# Include filter config (e.g., enrich with metadata)
@INCLUDE
outputs.conf
# Include output config (e.g., send logs to XPLG)
inputs.conf:
|
[INPUT]
Name tail # Tail log files
Tag kube.* # Tag format for filtering
Path /var/log/containers/*.log # Path to container logs
Parser docker # Use docker-style parser
Mem_Buf_Limit 5MB # Buffer limit per file
Skip_Long_Lines On # Skip lines too long
Refresh_Interval 10 # Check for new files every 10 sec
filters.conf:
|
[FILTER]
Name kubernetes
Match kube.* # Match logs from inputs with kube.* tag
Kube_Tag_Prefix kube.var.log.containers. # Strip this prefix
Merge_Log On # Merge log line with Kubernetes metadata
Merge_Log_Key log # Field name for original log line
Keep_Log Off # Discard original log if merged
outputs.conf:
|
[OUTPUT]
Name http # Output plugin (HTTP)
Match * # Send all logs
Host xpolog-service.default.svc.cluster.local # XPLG service DNS name in-cluster
Port 30303 # Port XPLG listens on
URI /logeye/api/logger.jsp?token=d450a348-6353-405c-a980-27c51f5f7131 # Auth token in URI
Format json_lines # Format logs as newline-delimited JSON
Json_date_key time # Key for timestamp
Json_date_format iso8601 # Format timestamps in ISO8601
Header X-Xpolog-Sender eks-pod-logs # Custom HTTP header
Retry_Limit 5 # Retry up to 5 times on failure
parsers.conf:
|
[PARSER]
Name docker # Parser name
Format json # Input format
Time_Key time # Field to use as timestamp
Time_Format %Y-%m-%dT%H:%M:%S.%L%z # Timestamp format (ISO8601 with ms and timezone)
Time_Keep On # Preserve original time
Decode_Field_As escaped log do_next # Decode any escaped characters in log
Decode_Field_As json log # Parse nested JSON from "log" field
# --- DAEMONSET: Deploy Fluent Bit on Each Node ---
---
apiVersion:
apps/v1
kind:
DaemonSet
metadata:
name:
fluent-bit
namespace:
logging
labels:
app.kubernetes.io/name:
fluent-bit
spec:
selector:
matchLabels:
app.kubernetes.io/name:
fluent-bit
template:
metadata:
labels:
app.kubernetes.io/name:
fluent-bit
spec:
serviceAccountName:
fluent-bit
# Use previously created service account
tolerations:
-
operator:
Exists
# Run on any tainted node (master, control-plane, etc.)
containers:
-
name:
fluent-bit
image:
public.ecr.aws/aws-observability/aws-for-fluent-bit:2.32.0
# AWS-optimized Fluent Bit image
resources:
requests:
cpu:
50m
memory:
100Mi
# Minimal required resources
limits:
cpu:
100m
memory:
200Mi
# Maximum allowed usage
volumeMounts:
-
name:
config
mountPath:
/fluent-bit/etc/
# Mount config from ConfigMap
-
name:
varlog
mountPath:
/var/log
# Mount logs directory
readOnly:
true
-
name:
varlibdockercontainers
mountPath:
/var/lib/docker/containers
readOnly:
true
# For container log metadata
livenessProbe:
httpGet:
path:
/api/v1/health
# Health check endpoint
port:
2020
initialDelaySeconds:
10
periodSeconds:
60
volumes:
-
name:
config
configMap:
name:
fluent-bit-config
# Reference to the above ConfigMap
-
name:
varlog
hostPath:
path:
/var/log
# Mount node log path
-
name:
varlibdockercontainers
hostPath:
path:
/var/lib/docker/containers
# Mount container metadata
Apply it:
kubectl apply -f fluent-bit-
config
.yaml
Optional
Deploy Fluent Bit from Private Image in EKS (or any K8s)
Push Your Fluent Bit Image to Your Registry (e.g., Amazon ECR)
If you’re using ECR:
aws ecr create-repository --repository-name fluent-bit-
custom
# Tag
and
push your image
docker tag fluent-bit:
custom
123456789012
.dkr.ecr.eu-north-
1
.amazonaws.com/fluent-bit-
custom
aws ecr
get
-login-password | docker login --username AWS --password-stdin
123456789012
.dkr.ecr.eu-north-
1
.amazonaws.com
docker push
123456789012
.dkr.ecr.eu-north-
1
.amazonaws.com/fluent-bit-
custom
Update Your DaemonSet (or Pod) with Custom Image
In your Fluent Bit DaemonSet YAML:
containers:
-
name:
fluent-bit
image:
123456789012.
dkr.ecr.eu-north-1.amazonaws.com/fluent-bit-custom:latest
6. Deploy Fluent Bit as a DaemonSet(separated from ConfigMap)
nano fluent-bit-daemonset.
yaml
apiVersion:
apps/v1
kind:
DaemonSet
metadata:
name:
fluent-bit
namespace:
logging
labels:
app.kubernetes.io/name:
fluent-bit
spec:
selector:
matchLabels:
app.kubernetes.io/name:
fluent-bit
template:
metadata:
labels:
app.kubernetes.io/name:
fluent-bit
spec:
serviceAccountName:
fluent-bit
tolerations:
-
operator:
Exists
containers:
-
name:
fluent-bit
image:
public.ecr.aws/aws-observability/aws-for-fluent-bit:2.32.0
resources:
requests:
cpu:
50m
memory:
100Mi
limits:
cpu:
100m
memory:
200Mi
volumeMounts:
-
name:
config
mountPath:
/fluent-bit/etc/
-
name:
varlog
mountPath:
/var/log
readOnly:
true
-
name:
varlibdockercontainers
mountPath:
/var/lib/docker/containers
readOnly:
true
livenessProbe:
httpGet:
path:
/api/v1/health
port:
2020
initialDelaySeconds:
10
periodSeconds:
60
volumes:
-
name:
config
configMap:
name:
fluent-bit-config
-
name:
varlog
hostPath:
path:
/var/log
-
name:
varlibdockercontainers
hostPath:
path:
/var/lib/docker/containers
kubectl apply -f fluent-bit-daemonset.
yaml
References
XPLG Official site:
Home *Log management & analysis automations. Simple, optimized & cost-effective. Try free log parser, collectors, forwarding…*xplg.com
**XPLG Official Documentation: **https://xpolog.atlassian.net/wiki/spaces/XPOL/overview
Fluent Bit Official Documentation https://docs.fluentbit.io
- Full configuration options for inputs, filters, outputs, parsers, and service settings.
AWS for Fluent Bit (AWS Distro) https://github.com/aws/aws-for-fluent-bit
- Official Fluent Bit image optimized for AWS with pre-installed plugins and performance tuning.
Amazon EKS Documentation https://docs.aws.amazon.com/eks/latest/userguide/what-is-eks.html
- Guides for managing and connecting to EKS clusters.
Kubernetes RBAC Authorization https://kubernetes.io/docs/reference/access-authn-authz/rbac/
- Role, ClusterRole, RoleBinding, and ClusterRoleBinding explained.
Kubernetes DaemonSet https://kubernetes.io/docs/concepts/workloads/controllers/daemonset/
- Explains the controller that ensures a pod runs on every node.
Kubernetes ConfigMap https://kubernetes.io/docs/concepts/configuration/configmap/
- How to inject configuration into your containers via ConfigMaps.
kubectl command-line tool https://kubernetes.io/docs/reference/kubectl/
- Reference for all kubectl commands used during deployment.
AWS CLI — eks update-kubeconfig https://docs.aws.amazon.com/cli/latest/reference/eks/update-kubeconfig.html
