Building a USB Rubber Ducky with Arduino Leonardo with Cursor.

Cover image

Article Metadata

Ecosystem Fit​

This page mirrors the original Medium article into the 1200km.com Docusaurus ecosystem. The original article flow, images, screenshots, infographics, and technical blocks are preserved from the export.

Integrating Cursor AI into your hardware hacking workflow is a game-changer. From Human Prompt to Working Code​

Article image

Introduction​

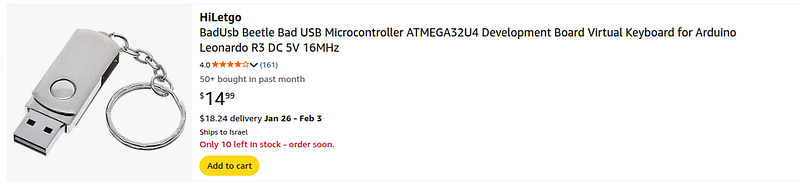

The USB Rubber Ducky is a well-known penetration testing tool that emulates a USB keyboard to execute keystroke-based attacks. While the original Hak5 USB Rubber Ducky is a commercial device, you can build your own using an Arduino Leonardo or Arduino Micro for a fraction of the cost. Like this:

Article image

In this comprehensive guide, we’ll explore how to set up an Arduino-based Rubber Ducky, integrate it with Cursor IDE for seamless development, and discuss its applications in penetration testing.

What is a USB Rubber Ducky?​

A USB Rubber Ducky is a Human Interface Device (HID) that appears to the operating system as a standard USB keyboard. When plugged into a computer, it can execute pre-programmed keystrokes at incredible speed (up to 1000 words per minute), making it an effective tool for:

  • Penetration Testing: Testing physical security and social engineering defenses

  • Security Audits: Demonstrating vulnerabilities in system configurations

  • Red Team Exercises: Simulating real-world attack scenarios

  • Educational Purposes: Understanding HID attacks and defenses

Why Arduino Leonardo/Micro?​

The Arduino Leonardo and Arduino Micro are ideal for building a DIY Rubber Ducky because:

  • Native USB Support: Both boards use the ATmega32u4 microcontroller with built-in USB functionality

  • HID Capability: Can natively act as a keyboard, mouse, or other HID device

  • Cost-Effective: Significantly cheaper than commercial alternatives

  • Customizable: Fully programmable and adaptable to specific needs

  • Open Source: Complete control over the firmware and payloads

Complete Setup Guide​

Project Initialization​

Create a new directory for your Rubber Ducky project:

mkdir
 RubberDucky
cd
 RubberDucky

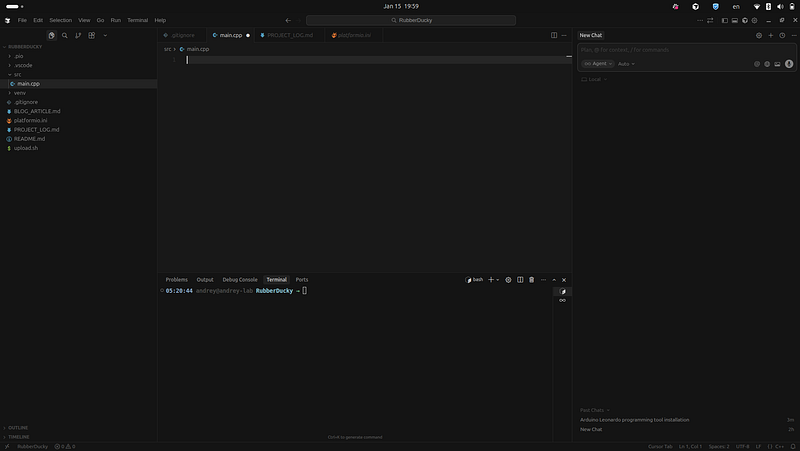

  • OpenCursor IDEand create a new Arduino project (or open your existing sketch).
cursor
 .

  • Connect yourArduino Leonardoto your computer using a USB data cable.

  • In Cursor, useplain-language promptsto generate or improve your sketch.

Article image

Project Timeline: From Human Prompt to Working Code​

You can review the complete original action log below:​

Pay Attention to User requests!​

## Phase 1: Initial Setup Request
### User Request
> "Install to this directory tool for Arduino Leonardo programming"
### Actions Taken
1.

**Directory Check**
   -
 Checked
`/home/andrey/RubberDucky`
 directory
   -
 Confirmed directory was empty
2.

**PlatformIO Installation Decision**
   -
 Selected PlatformIO as the development tool
   -
 Chose virtual environment approach for isolation
3.

**Project Structure Creation**
   -
 Created
`platformio.ini`
 configuration file
   -
 Created
`src/main.cpp`
 with basic Arduino template
   -
 Created
`.gitignore`
 for build artifacts
   -
 Created
`README.md`
 with setup instructions
### Files Created
**platformio.ini**
 (Initial version):
```ini
[env:leonardo]
platform = atmelavr
board = leonardo
framework = arduino
monitor_speed = 9600
upload_protocol = avr109
upload_port = /dev/ttyACM0
build_flags =
    -DUSB_VID=0x2341
    -DUSB_PID=0x0036

src/main.cpp (Initial template):

#include <Arduino.h>
void setup() {
  Serial.begin(9600);
  while (!Serial) {
    ; // wait for serial port to connect
  }
  Serial.println("Arduino Leonardo initialized!");
}
void loop() {
  Serial.println("Hello from Arduino Leonardo!");
  delay(1000);
}

Commands Executed​

# Created virtual environment
python3 -m venv venv
# Installed PlatformIO
source venv/bin/activate
pip install platformio
# Verified installation
pio --version
# Output: PlatformIO Core, version 6.1.18

Result​

✅ PlatformIO successfully installed and configured for Arduino Leonardo​

Phase 2: Device Detection and IDE Integration​

User Request​

"Run the tool. Now I have one device connected to my host, open it or add option to program this device via Cursor IDE"

Actions Taken​

Device Detection

   pio device list

Detected Arduino Micro at /dev/ttyACM0​

Confirmed compatibility with Leonardo configuration 2.

Build Test

   pio run

Successfully compiled project​

Installed required toolchains and frameworks 3.

Cursor IDE Integration​

Created .vscode/ directory​

Created .vscode/settings.json for PlatformIO integration​

Created .vscode/tasks.json with build/upload tasks​

Created .vscode/extensions.json with PlatformIO recommendation

Files Created​

.vscode/settings.json :

{
    "platformio-ide.autoCleanBeforeBuild": true,
    "platformio-ide.useBuiltinPIOCore": false,
    "platformio-ide.customPATH": "${workspaceFolder}/venv/bin",
    "files.associations": {
        "*.ino": "cpp",
        "*.h": "c"
    }
}

.vscode/tasks.json :

{
    "version": "2.0.0",
    "tasks": [
        {
            "label": "PlatformIO: Build",
            "type": "shell",
            "command": "${workspaceFolder}/venv/bin/pio",
            "args": ["run"],
            "group": {"kind": "build", "isDefault": true}
        },
        {
            "label": "PlatformIO: Upload",
            "type": "shell",
            "command": "${workspaceFolder}/venv/bin/pio",
            "args": ["run", "--target", "upload"]
        }
    ]
}

Result​

✅ Device detected and Cursor IDE fully configured for programming​

Phase 3: First Code Upload​

User Request​

"Upload this code to my device"

Actions Taken​

Permission Issue Encountered​

Error: Permission denied on /dev/ttyACM0​

User not in dialout group 2.

Permission Fix

   sudo usermod -a -G dialout $USER

Added user to dialout group​

Created upload.sh helper script for sudo access 3.

Successful Upload

   sudo -E env "PATH=$PATH" bash -c "source venv/bin/activate && pio run --target upload"

Uploaded successfully using sudo​

Firmware verified: 3,694 bytes

Files Created​

upload.sh :

#!/bin/bash
cd "$(dirname "$0")"
source venv/bin/activate
pio run --target upload

Result​

✅ Code successfully uploaded to Arduino Micro device​

Phase 4: Rubber Ducky Payload Development​

User Request​

"Create and upload to device new script: Connect as Standard Keyboard," "After connection open the terminal on Linux, and write Hello world to terminal"

Actions Taken​

Initial Attempt - Standard Keyboard Library​

Tried to use #include <Keyboard.h>​

Error : Keyboard.h: No such file or directory​

PlatformIO doesn't include standard Arduino Keyboard library for Leonardo 2.

Library Research​

Searched for HID libraries compatible with PlatformIO​

Found HID-Project library as solution 3.

HID-Project Library Integration​

Updated platformio.ini to include library:

lib_deps =
    nicohood/HID-Project@^2.8.4
  • Updated code to use BootKeyboard from HID-Project

Code Development​

Implemented keyboard initialization​

Added delays for system recognition​

Implemented Ctrl+Alt+T for terminal opening​

Added "Hello world" typing functionality

Files Modified​

platformio.ini (Updated):

[env:leonardo]
platform = atmelavr
board = leonardo
framework = arduino
; USB Configuration
board_build.usb_product = "Arduino Leonardo"
board_build.usb_vid = 0x2341
board_build.usb_pid = 0x0036
; Libraries
lib_deps =
    nicohood/HID-Project@^2.8.4
monitor_speed = 9600
upload_protocol = avr109
upload_port = /dev/ttyACM0

src/main.cpp (Rubber Ducky Payload):

#include &lt;Arduino.h&gt;
#include &lt;HID-Project.h&gt;
#include &lt;HID-Settings.h&gt;
void setup() {
  // Initialize keyboard
  BootKeyboard.begin();

  // Wait for the system to recognize the keyboard
  delay(2000);

  // Open terminal: Ctrl+Alt+T (on most Linux systems)
  BootKeyboard.press(KEY_LEFT_CTRL);
  BootKeyboard.press(KEY_LEFT_ALT);
  BootKeyboard.press('t');
  delay(100);
  BootKeyboard.releaseAll();

  // Wait for terminal to open
  delay(1000);

  // Type "Hello world"
  BootKeyboard.print("Hello world");

  // Press Enter to execute
  BootKeyboard.press(KEY_RETURN);
  delay(100);
  BootKeyboard.releaseAll();

  // End keyboard control
  BootKeyboard.end();
}
void loop() {
  // Do nothing - script runs once
  delay(1000);
}

Commands Executed​

# Library installation
pio lib install "nicohood/HID-Project@^2.8.4"
# Build test
pio run
# Output: [SUCCESS] - 5,980 bytes compiled
# Upload with sudo
echo '****' | sudo -S env "PATH=$PATH" bash -c \
  "source venv/bin/activate && pio run --target upload"
# Output: [SUCCESS] - Firmware uploaded and verified

Key Learnings​

Library Selection : Standard Arduino Keyboard library not available in PlatformIO 2.

HID-Project : Provides BootKeyboard class with similar API 3.

Key Constants : Uses KEY_LEFT_CTRL , KEY_LEFT_ALT , KEY_RETURN from HID-Project 4.

Timing : Delays crucial for system to recognize HID device

Result​

✅ Rubber Ducky payload successfully created and uploaded​


## ✅ Rubber Ducky payload successfully created and uploaded!

## Stay tuned for my next posts on how to use a Rubber Ducky for penetration testing, including mobile penetration testing.
