Setup (10 Minutes)

Prerequisites​

  • Docker + Docker Compose
  • An API key for at least one of: Anthropic (Claude), OpenAI, Google Gemini, MiniMax

Step 1: Clone and configure​

git clone https://github.com/anpa1200/adversarygraph.git
cd adversarygraph
cp .env.example .env
warning

You must create .env before running docker compose up. Without it the container starts with empty API keys and AI Analysis returns 500.

Open .env and add your keys. You only need one:

ANTHROPIC_API_KEY=sk-ant-...
# OPENAI_API_KEY=sk-...
# GEMINI_API_KEY=AIza...
# MINIMAX_API_KEY=sk-...
# MINIMAX_MODEL=MiniMax-M3
# MINIMAX_BASE_URL=https://api.minimax.io/v1

DB_PASS=choose_a_strong_password

For local/private LLM analysis, use an OpenAI-compatible endpoint:

LOCAL_LLM_BASE_URL=http://host.docker.internal:11434/v1
LOCAL_LLM_API_KEY=local
LOCAL_LLM_MODEL=llama3.1:8b

Optional enrichment platform keys:

# abuse.ch ThreatFox recent IOC sync
THREATFOX_AUTH_KEY=your_abuse_ch_auth_key
AUTO_THREATFOX_SYNC_ON_STARTUP=true
AUTO_THREATFOX_SYNC_DAYS=7

# AlienVault OTX actor-attributed pulse enrichment
OTX_API_KEY=your_otx_key

# VirusTotal on-demand IOC reputation and relationship lookup
VIRUSTOTAL_API_KEY=your_virustotal_key

# Daily dynamic DB refresh schedule in UTC
DYNAMIC_DB_SYNC_HOUR=3
DYNAMIC_DB_SYNC_MINUTE=30
DYNAMIC_DB_IOC_SYNC_DAYS=7

These enrichment keys are optional. MITRE ATT&CK / ATLAS reference sync and the built-in public MISP Galaxy metadata sync do not require API keys. MISP JSON exports, STIX/TAXII collection URLs, custom JSON/CSV/TXT feeds, Sigma/YARA feeds, and sandbox behavior feeds are connected later from the UI/API as source URLs or tokens.

warning

Never commit a filled .env file. For team deployments, inject secrets through your deployment platform or secret manager.

If you want a faster first start and only need Enterprise ATT&CK, set:

ATTCK_DOMAINS=enterprise-attack

This downloads ~35 MB instead of ~105 MB.

Step 2: Start​

docker compose up

The first start downloads and ingests ATT&CK data automatically. Watch progress:

docker compose logs -f api

You'll see something like:

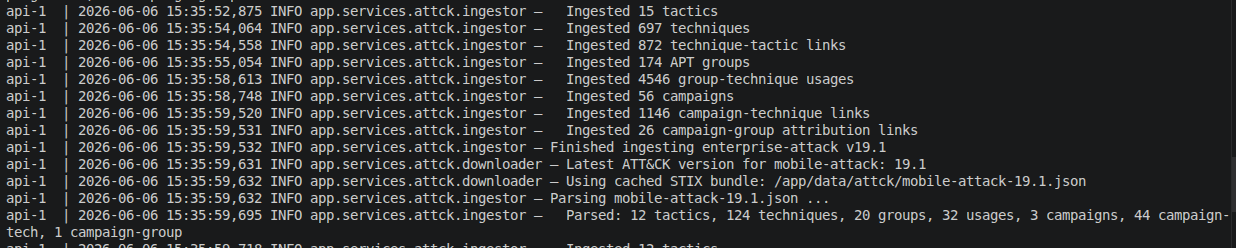

docker compose up — first start with ATT&CK ingestion in progress

Parsing enterprise-attack-19.1.json ...
  Parsed: current tactics, techniques, groups, campaigns, and relationships
Finished ingesting enterprise-attack v19.1
INFO:     Application startup complete.

This takes 5–15 minutes depending on your network speed. Subsequent startups are instant — data is cached in the PostgreSQL volume.

Step 3: Open​

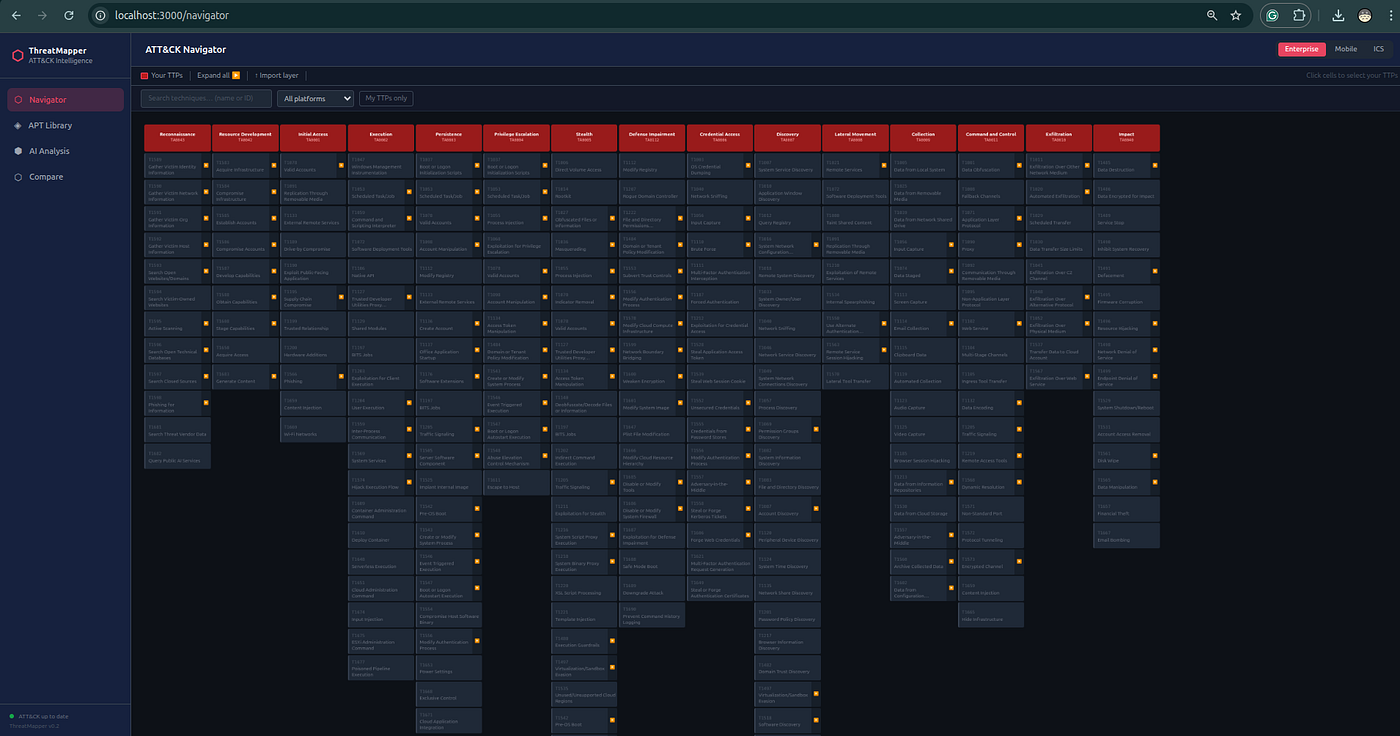

Frontend: http://localhost:3000

AdversaryGraph frontend — Navigator ready after ingestion

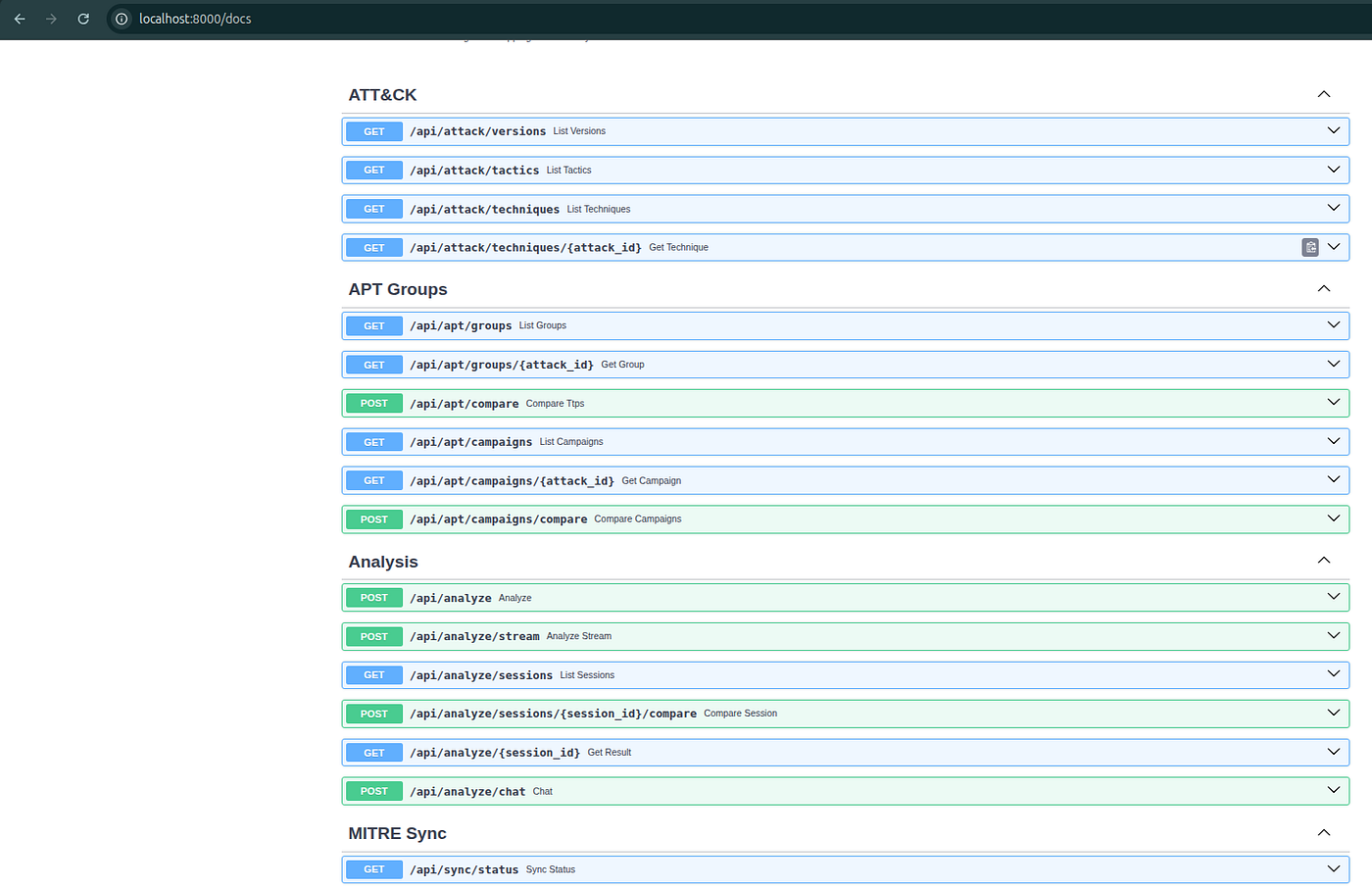

API docs (Swagger UI): http://localhost:8000/docs

AdversaryGraph API docs — Swagger UI for headless access

What's Ready​

Once the ingestion log shows Application startup complete, you have:

  • The currently ingested MITRE ATT&CK Enterprise release; counts depend on the release
  • The ATT&CK Navigator ready for technique selection
  • The AI Analysis endpoint ready (as long as at least one API key is set)
  • Jaccard comparison against all ATT&CK groups and campaigns

Troubleshooting​

AI Analysis returns 500 — check that your API key is set correctly in .env and the container was restarted after you added it.

Navigator shows no data — the ingestion is still running. Check docker compose logs -f api and wait for the Finished ingesting message.

Port 3000 is taken — edit docker-compose.yml and change the host port mapping for the frontend service.

Next: Core Workflow: AI Analysis →
