ThreatMapper v2.0 Visual Guide

Screenshots, diagrams, and workflow infographics from the published ThreatMapper v2.0 article. These assets are mirrored locally in the official docs so the guide does not depend on Medium image hosting.

Read the ecosystem article: ThreatMapper v2.0 - Self-Hosted AI CTI Platform.

Overview​

ThreatMapper v2.0 article cover

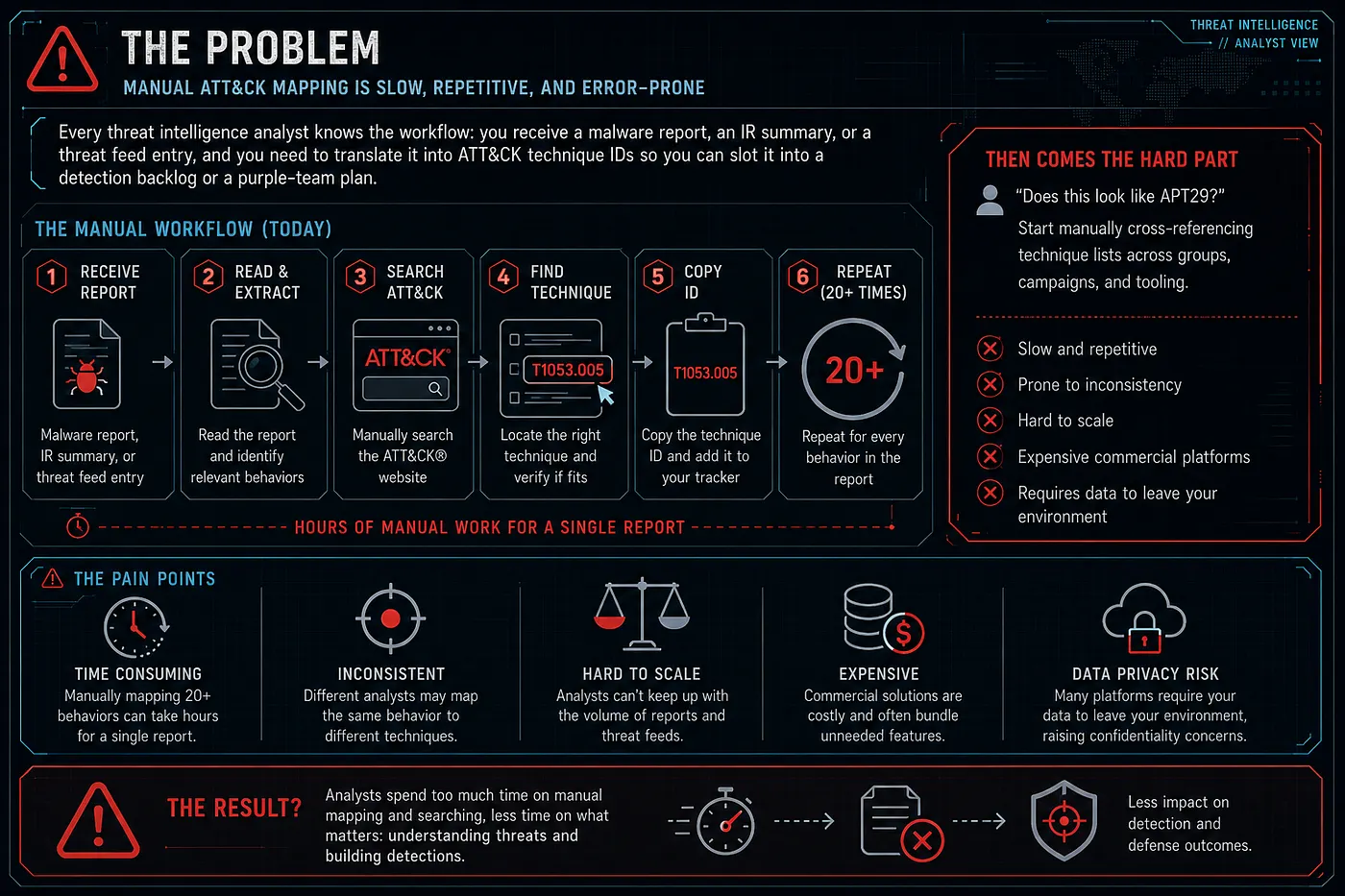

Problem overview: CTI reports to ATT&CK evidence

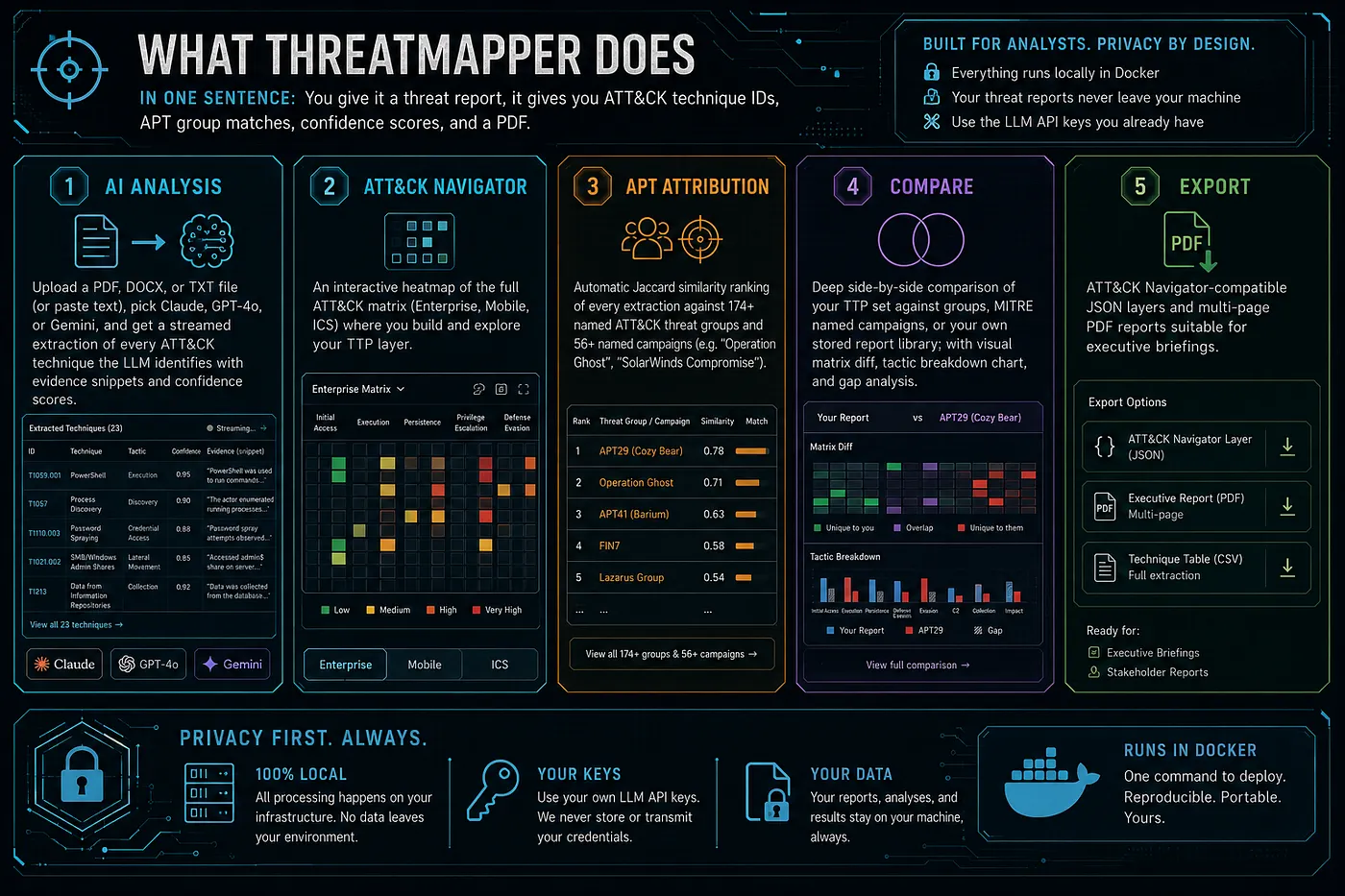

ThreatMapper page and feature map

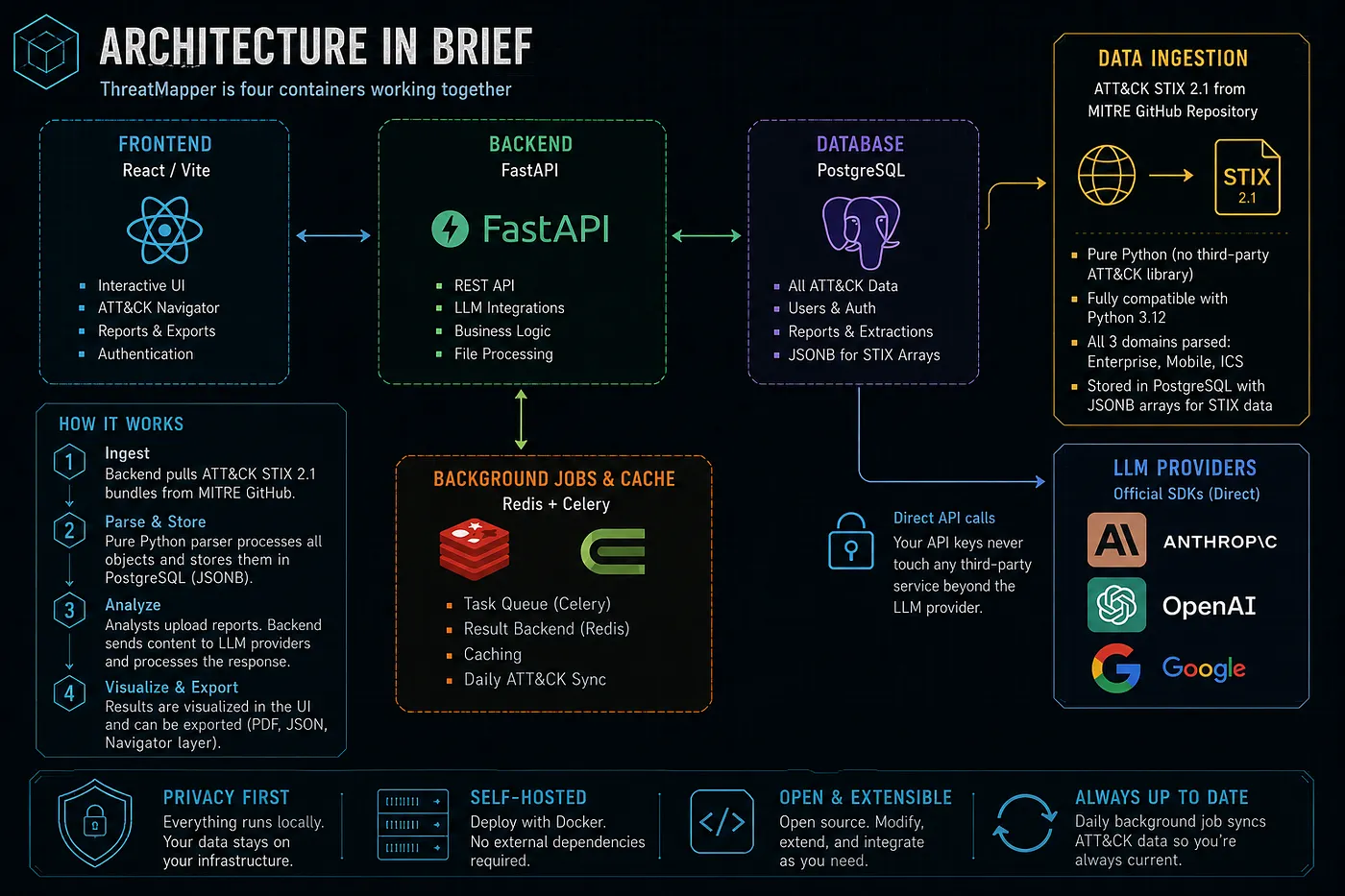

Self-hosted Docker architecture

Setup And API​

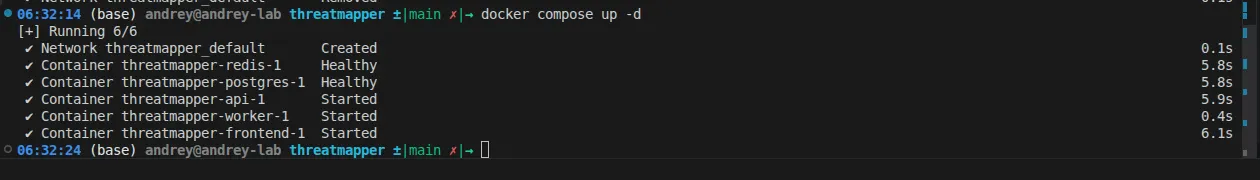

Terminal command output

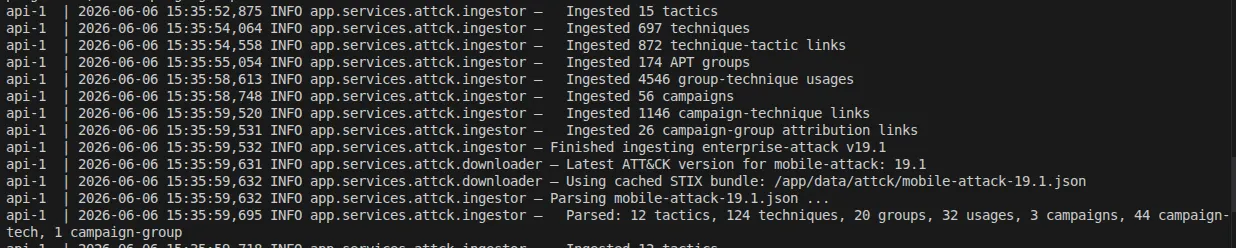

Docker Compose startup logs

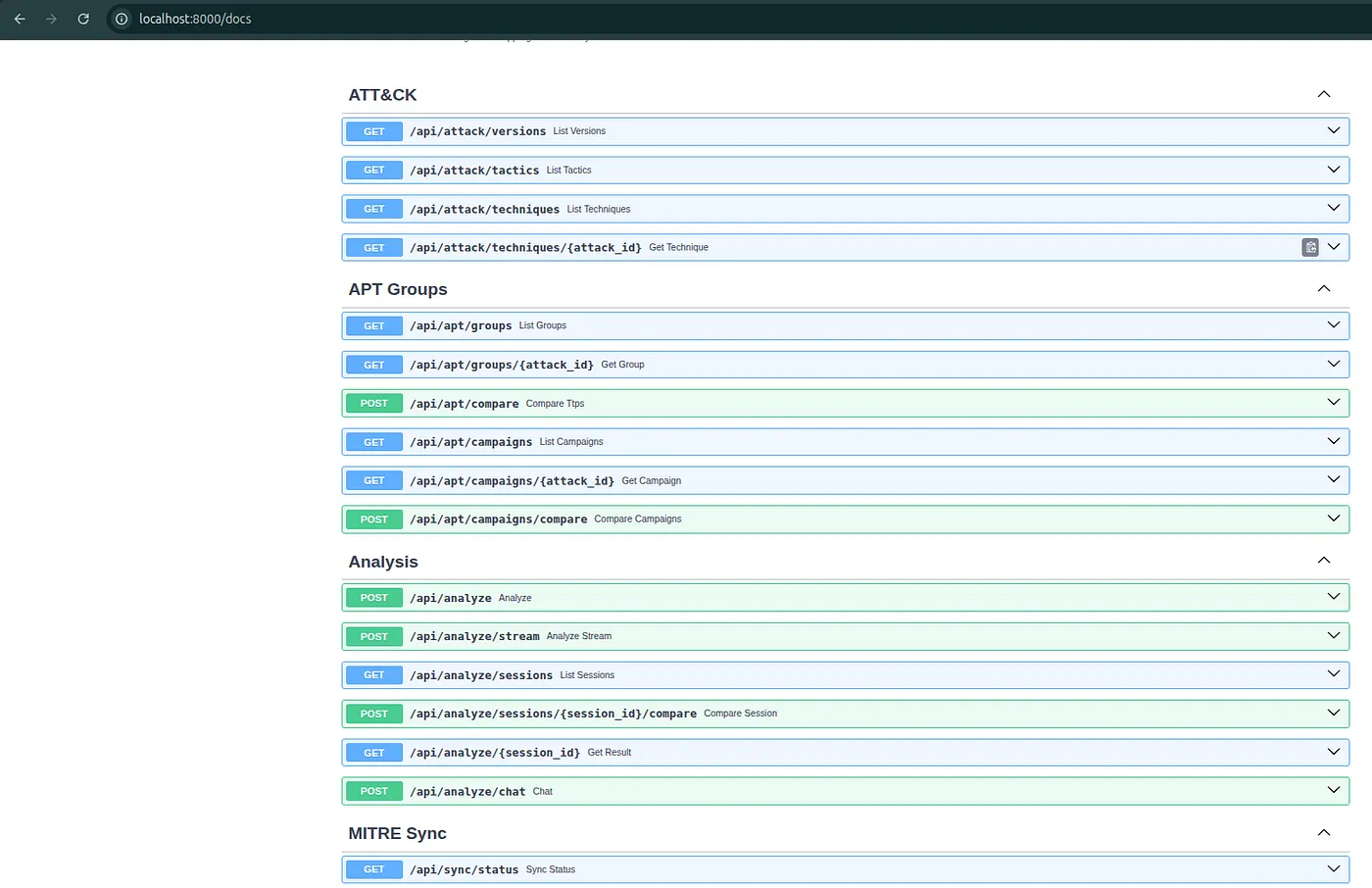

FastAPI Swagger documentation

Discover And AI Analysis​

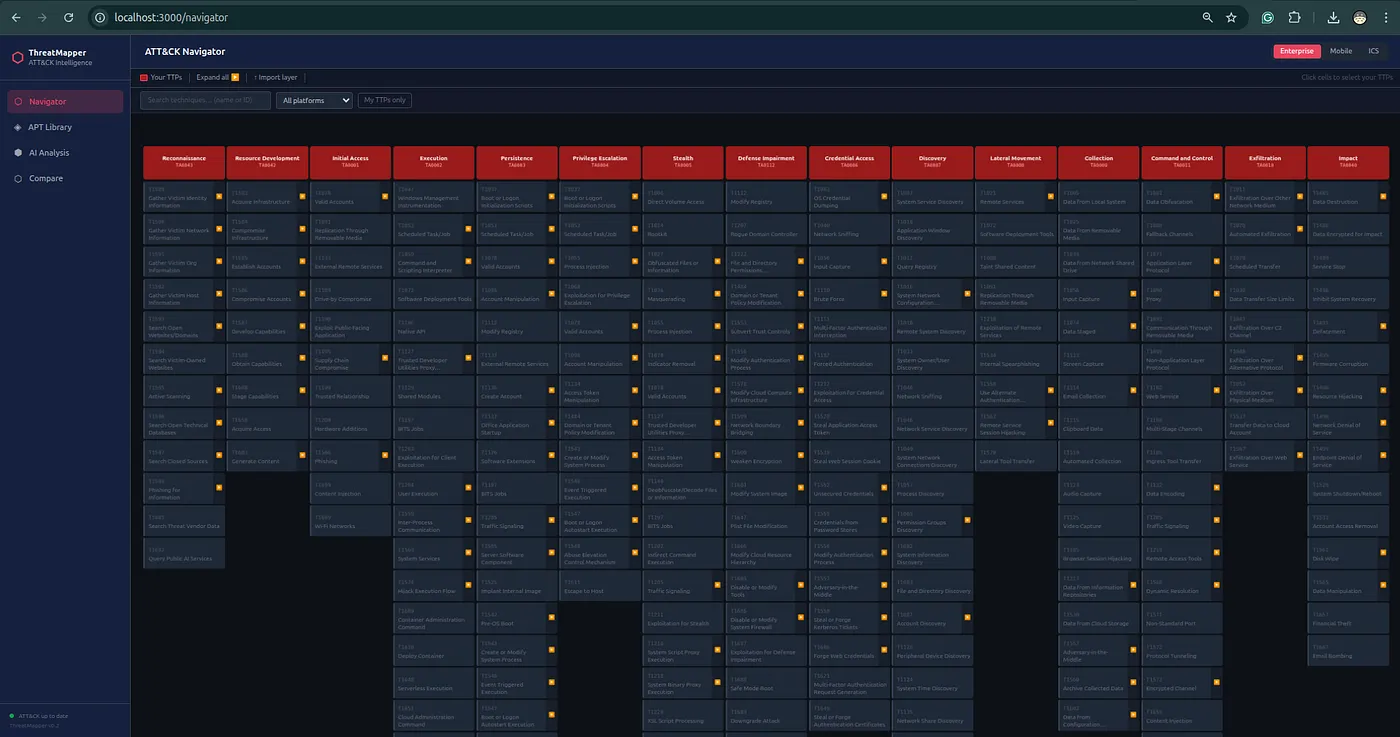

Discover Intelligence dashboard

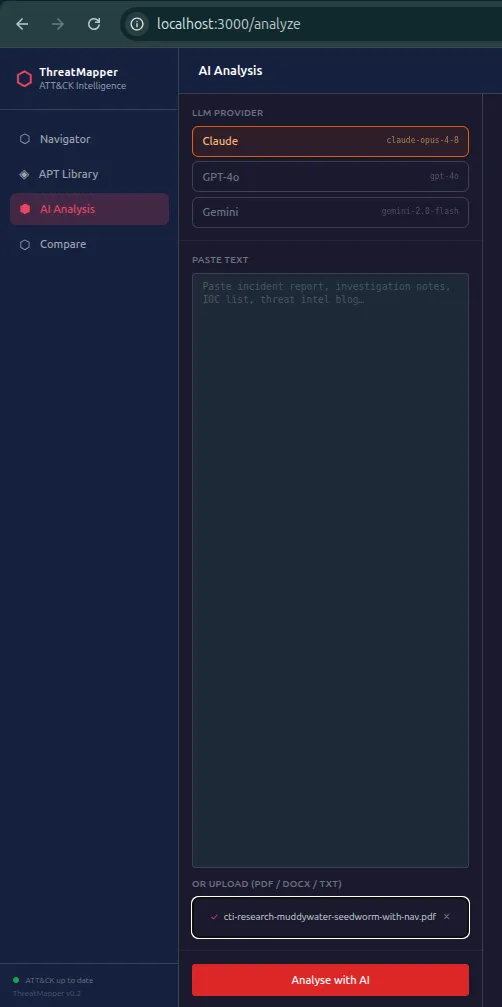

AI Analysis provider and upload panel

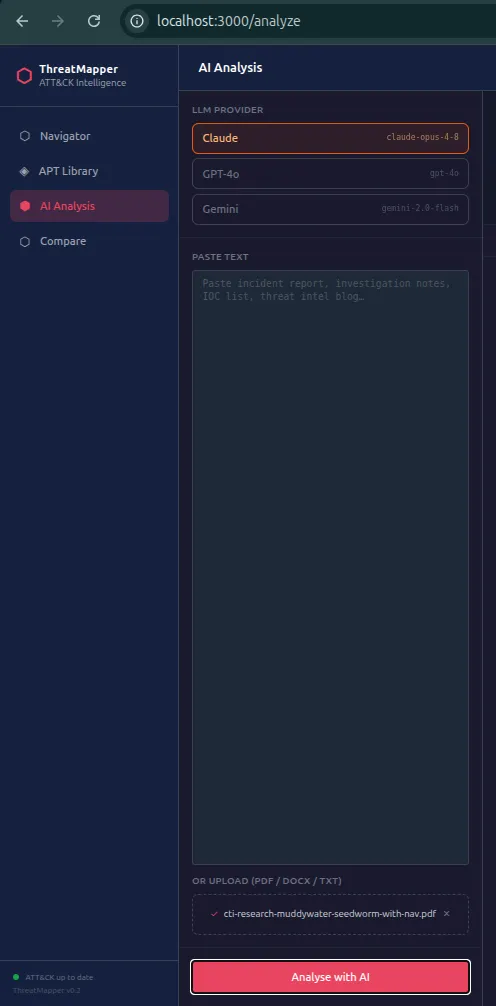

Local LLM provider option

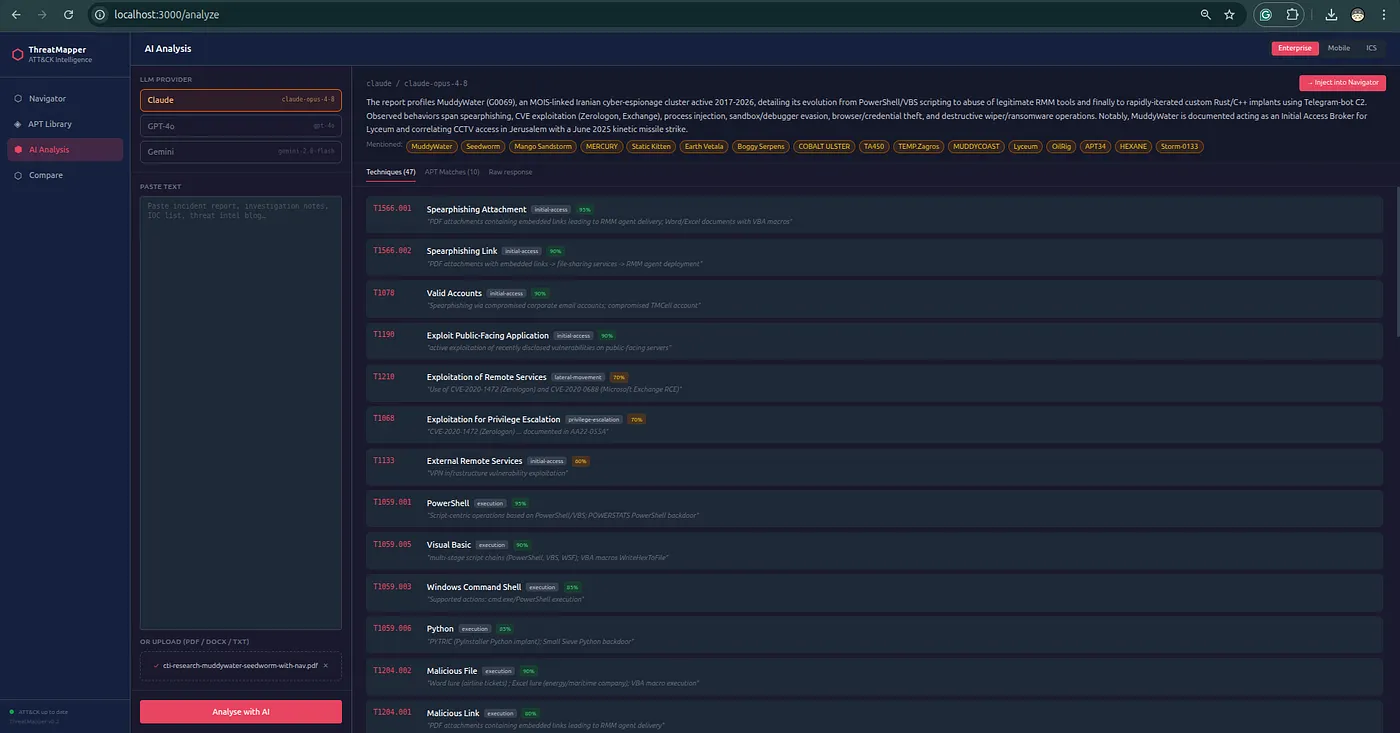

AI Analysis extracted structured output

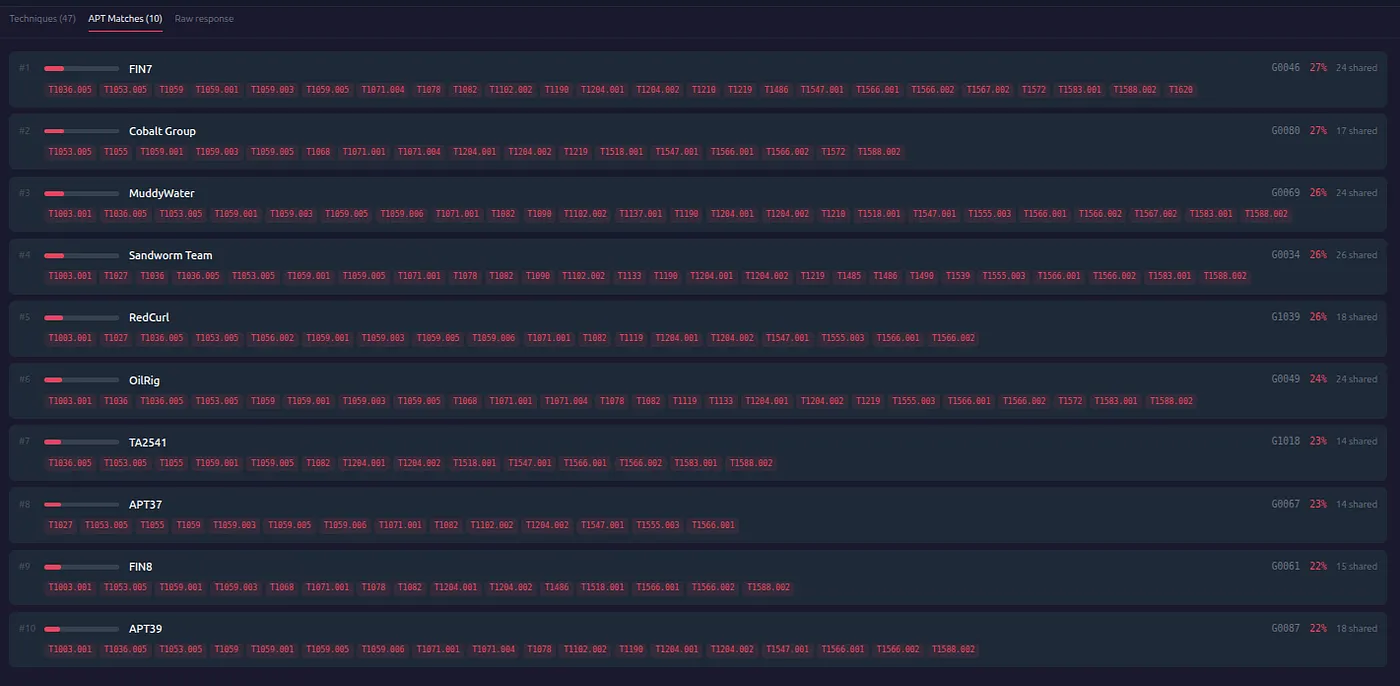

APT matches tab

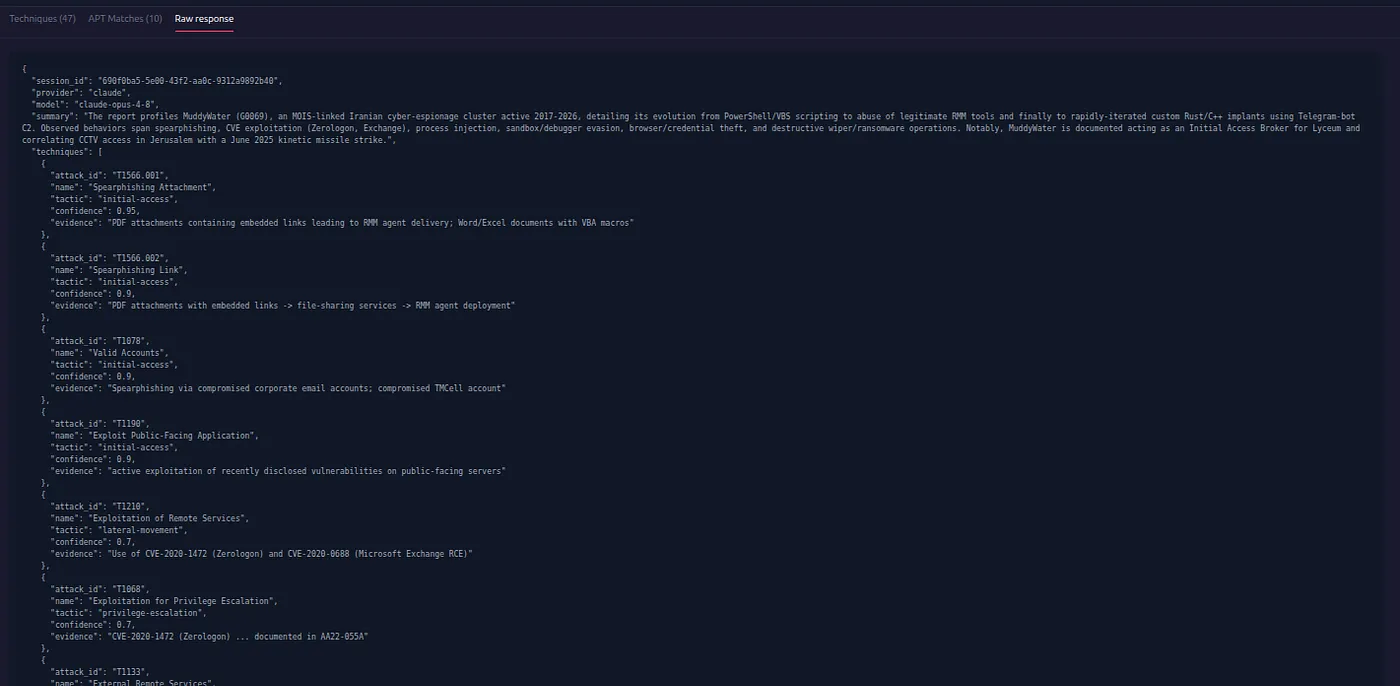

Raw AI analysis response

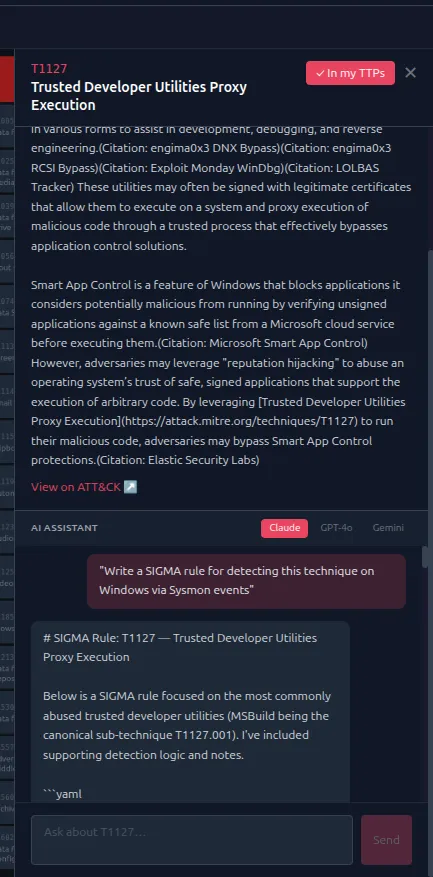

Review status controls

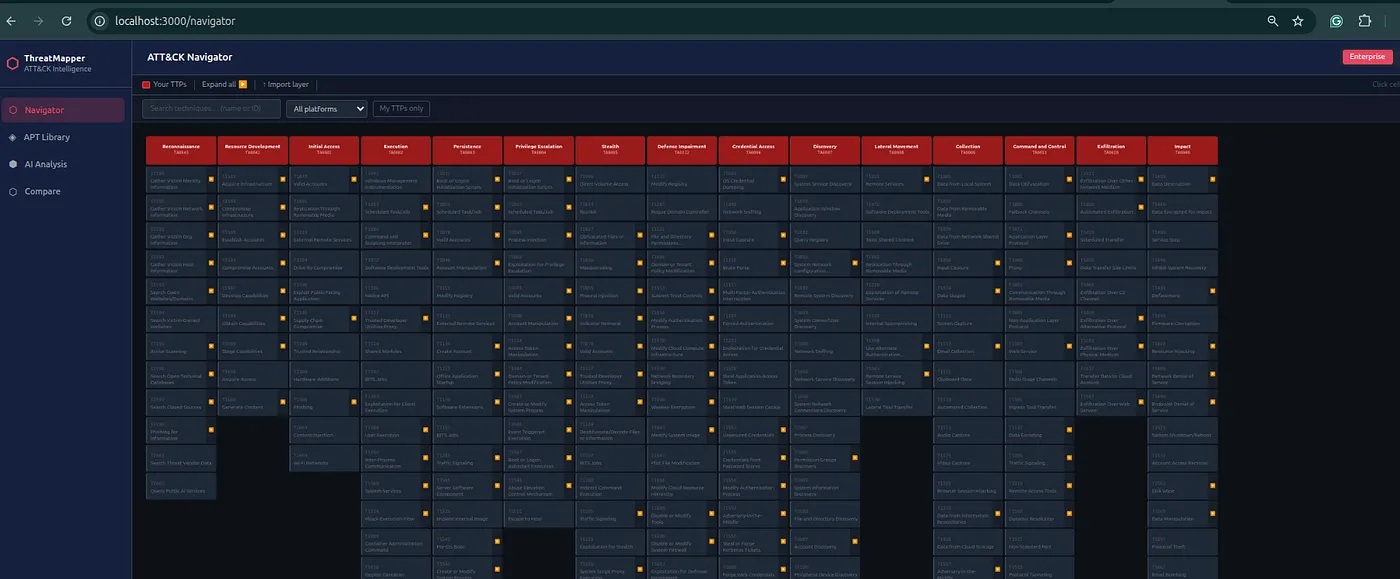

Navigator matrix workspace

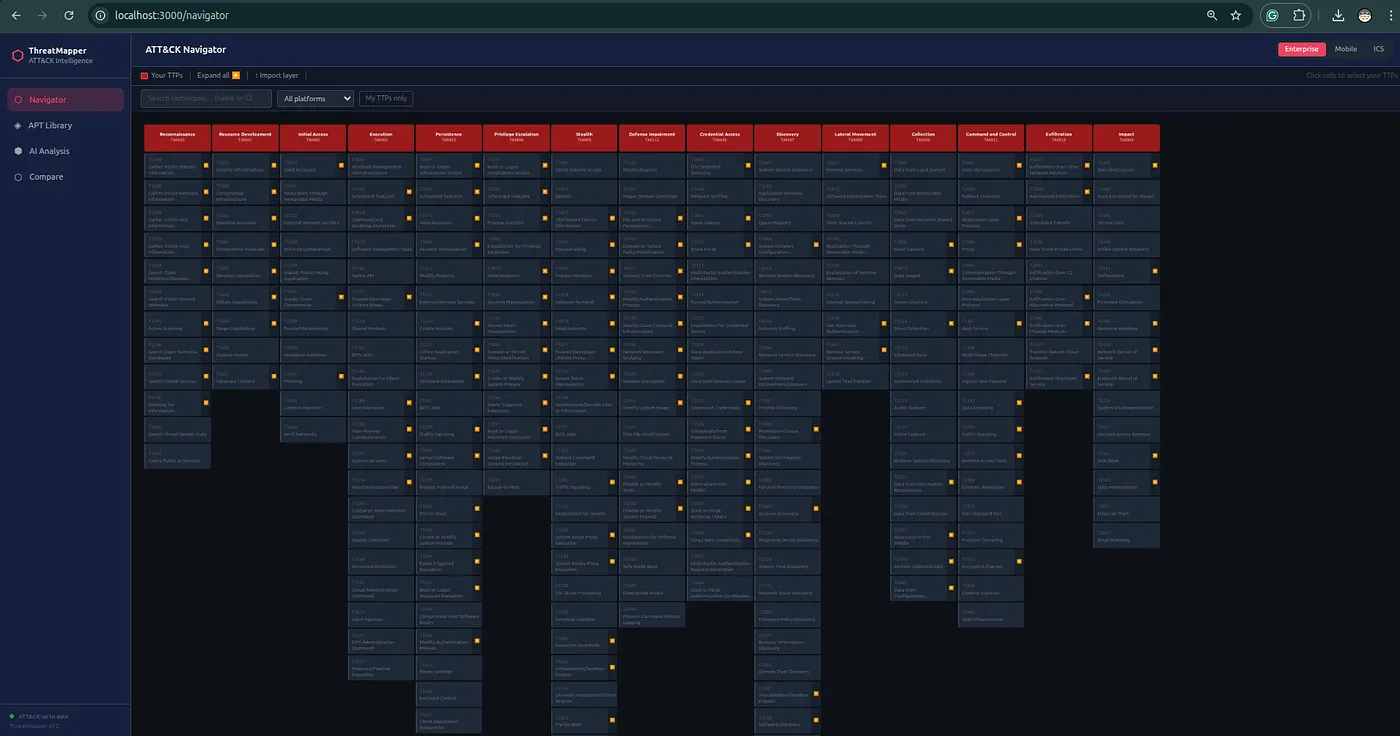

Discover matrix view

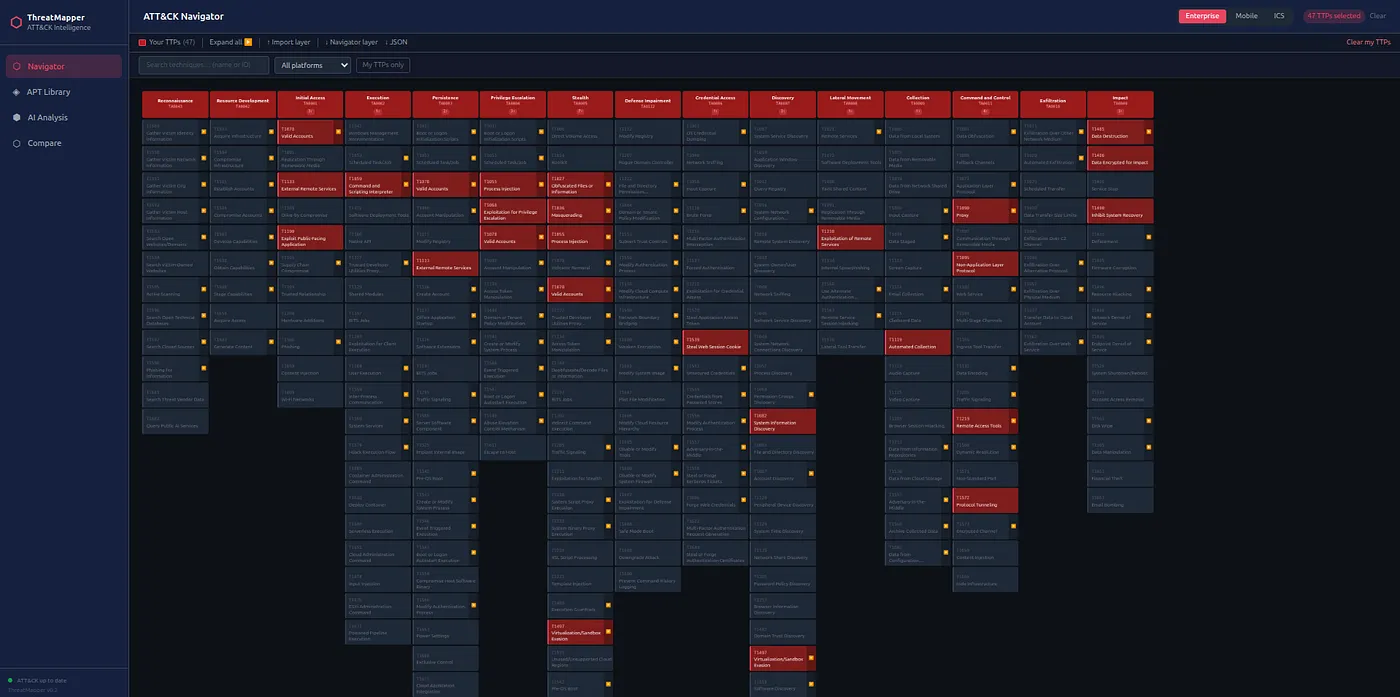

Navigator selected TTP layer

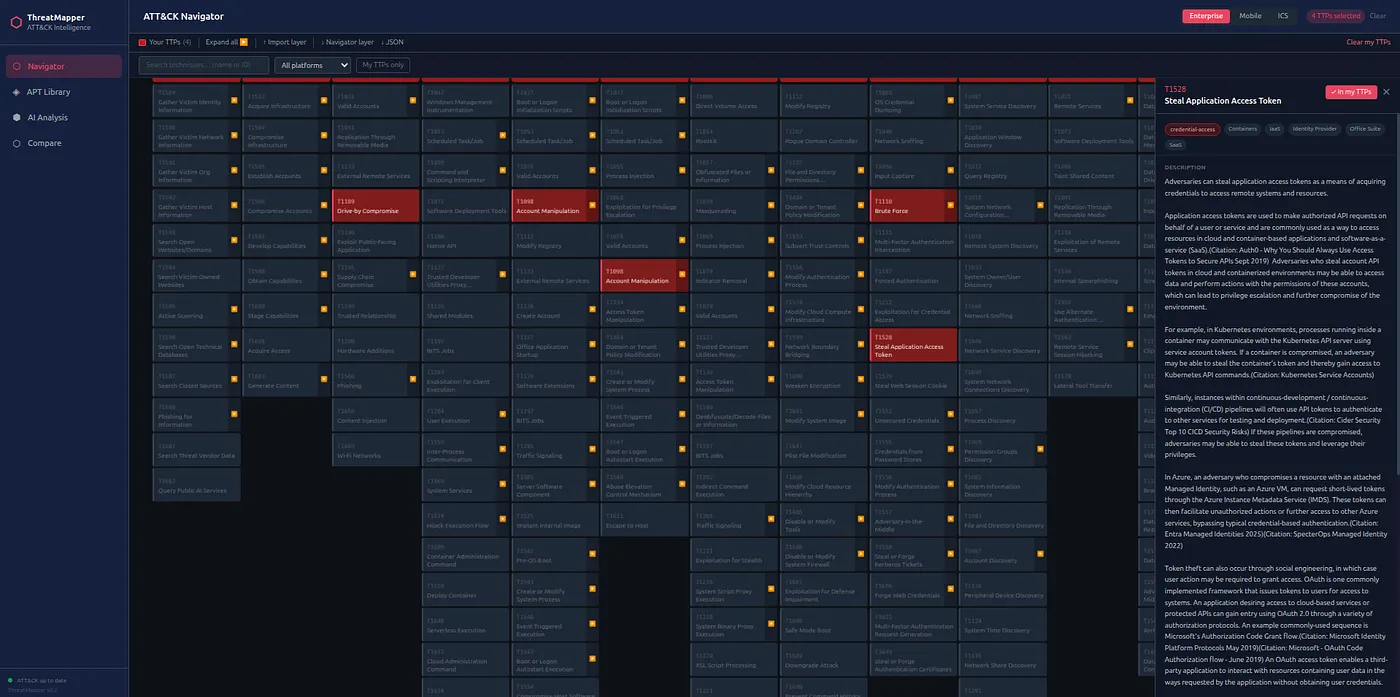

Navigator overlay and technique detail

Domain and selected TTP controls

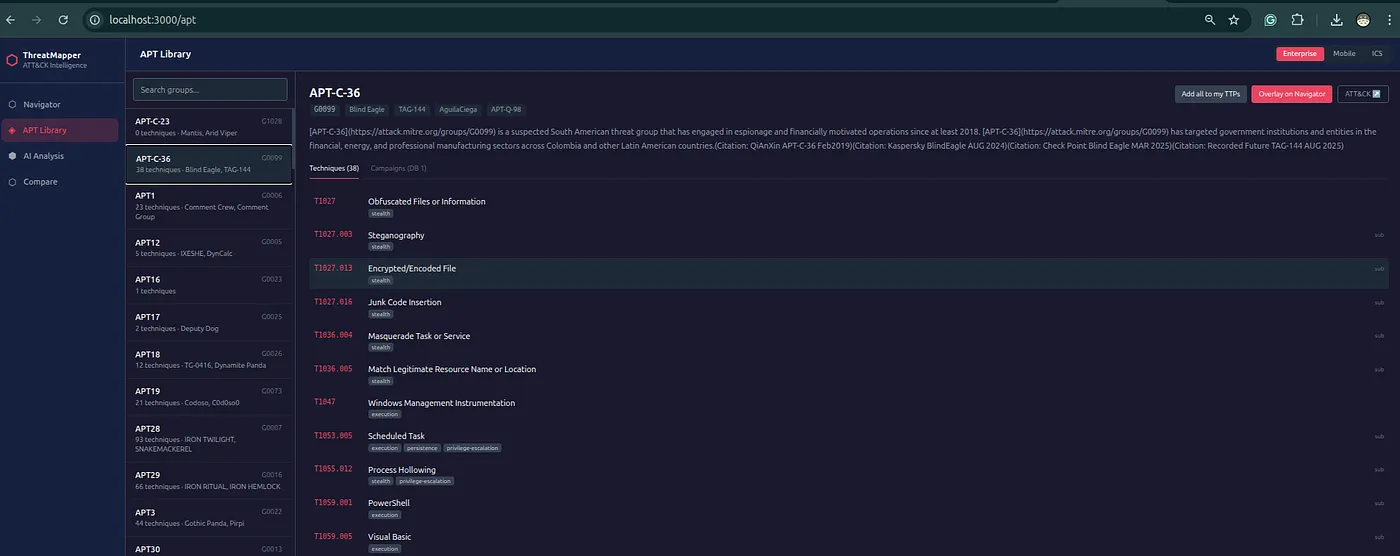

ATT&CK Group Library actor profile

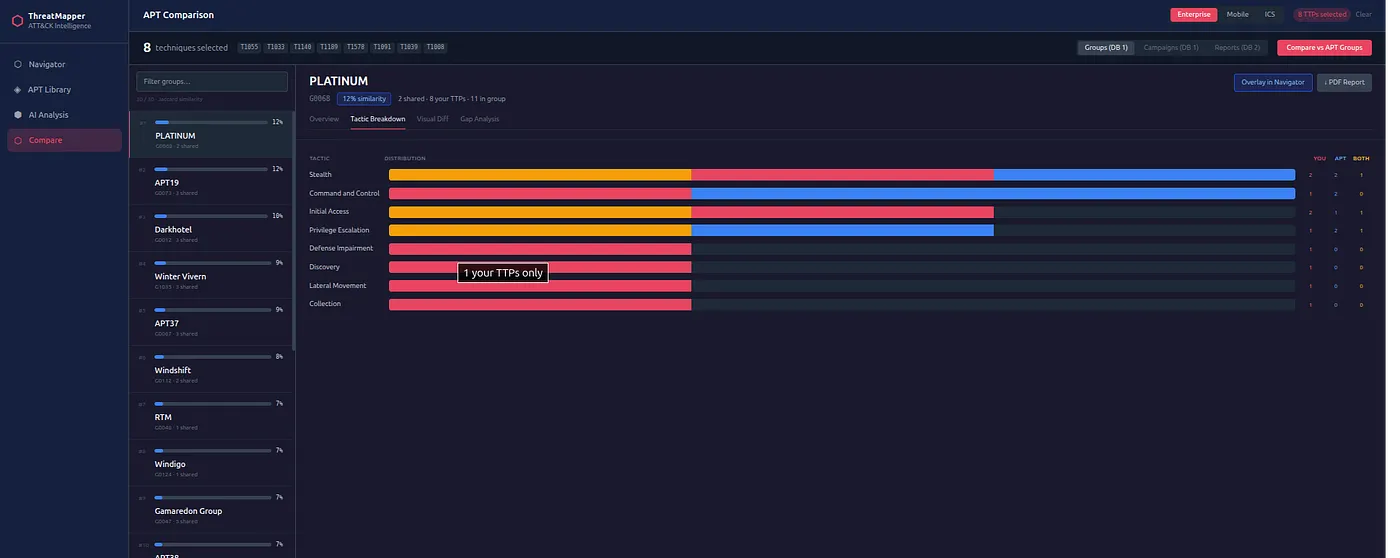

Tactic coverage chart

Comparison Workflows​

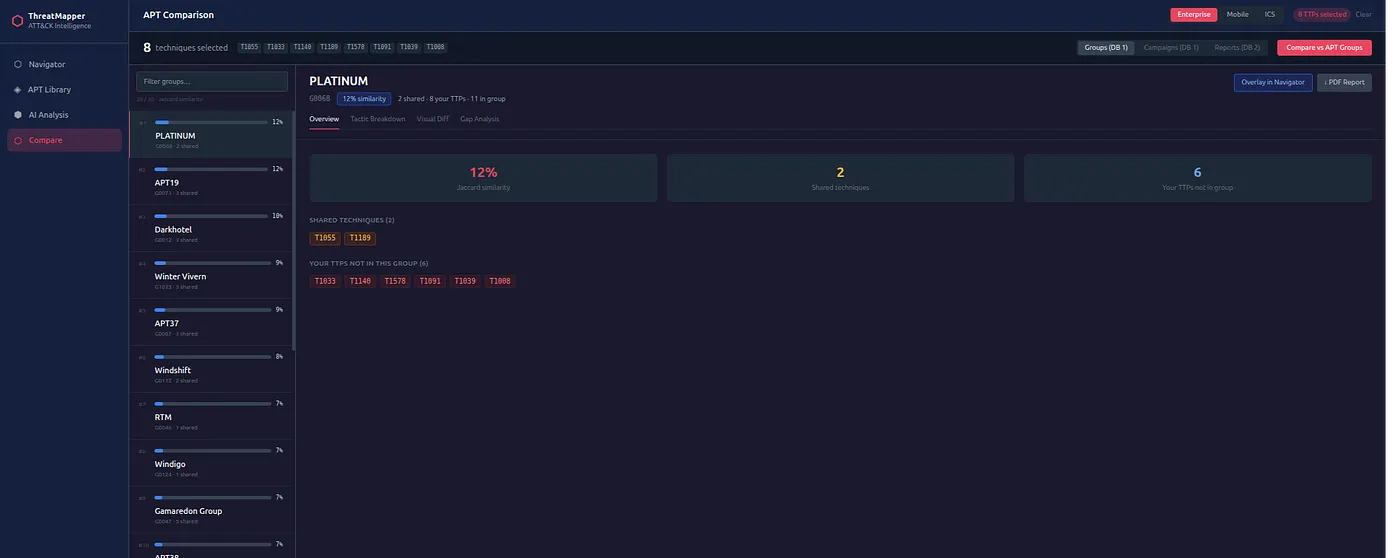

Compare mode landing page

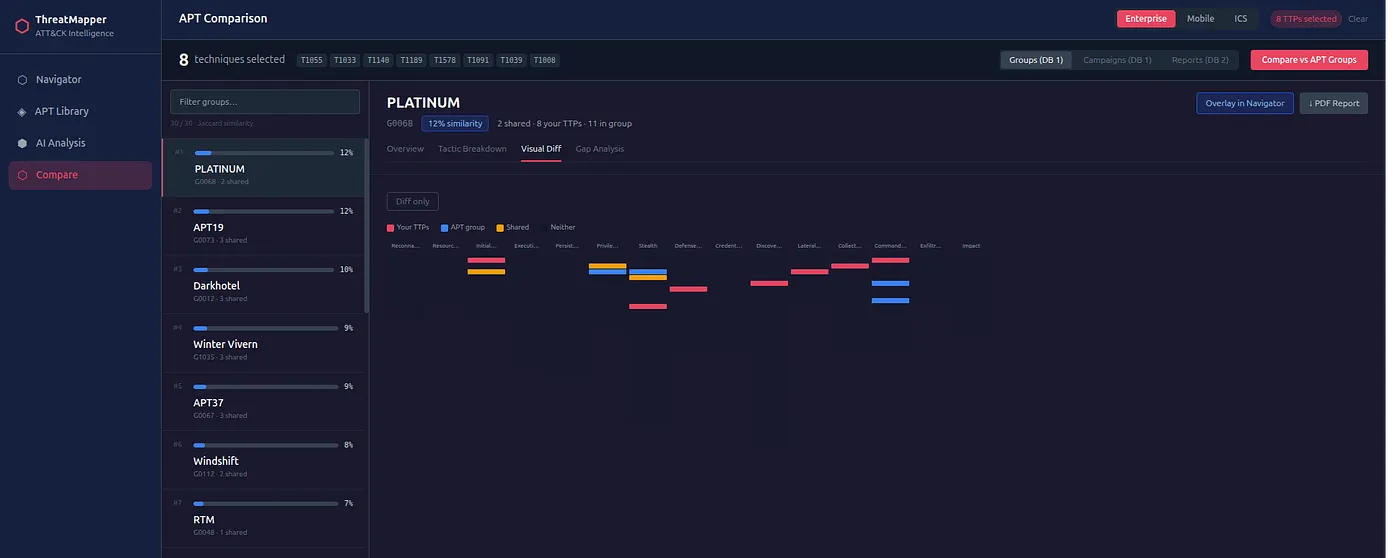

Group comparison graph

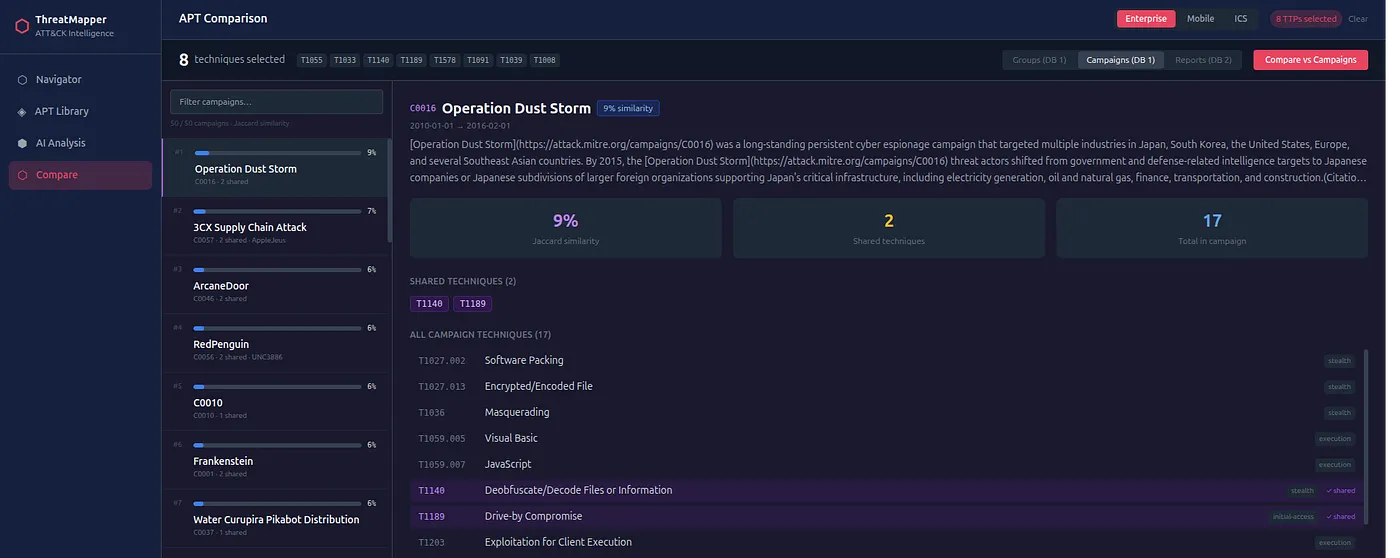

Campaign comparison page

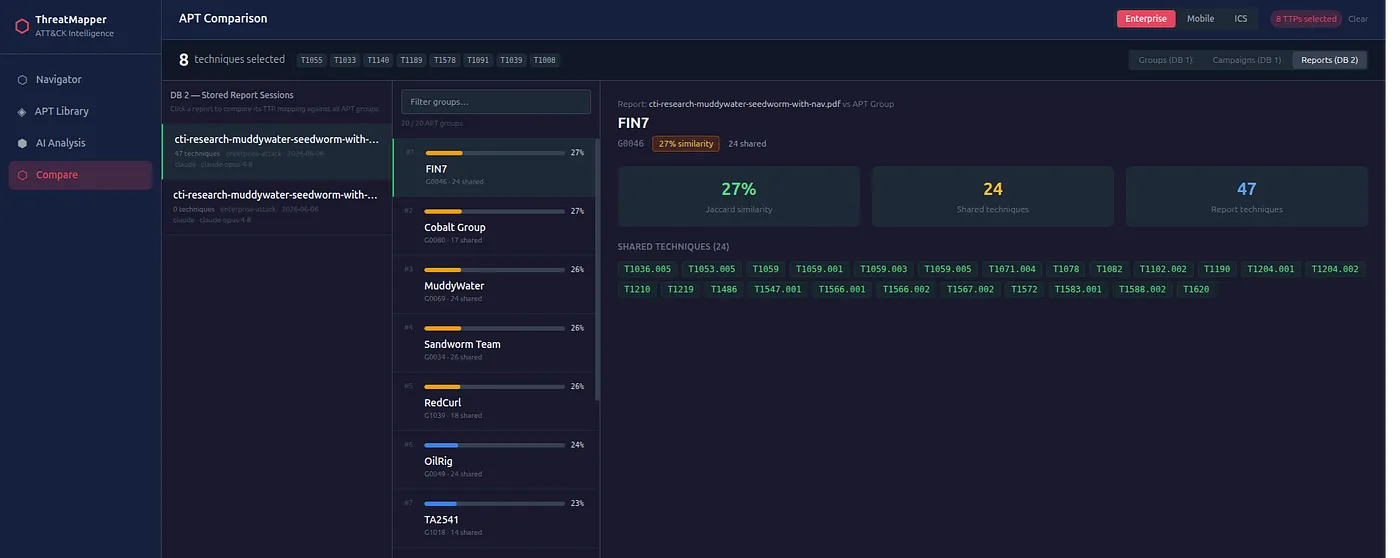

Stored report comparison

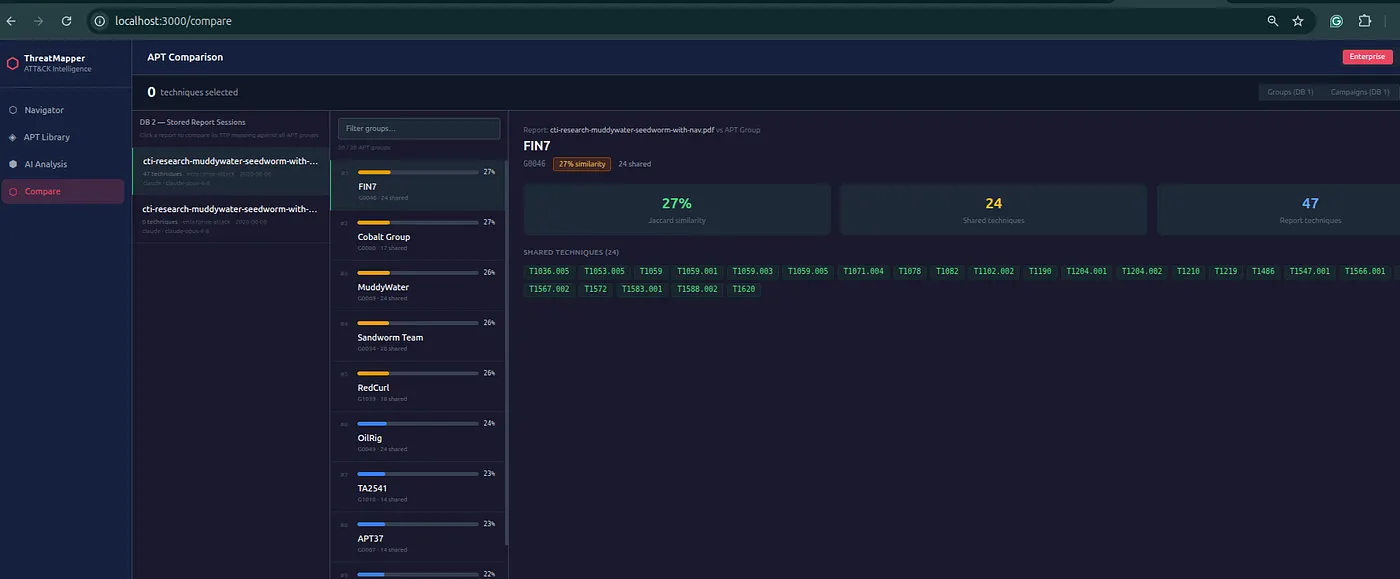

Group vs Group comparison

DFIR Examples And Reference Sync​

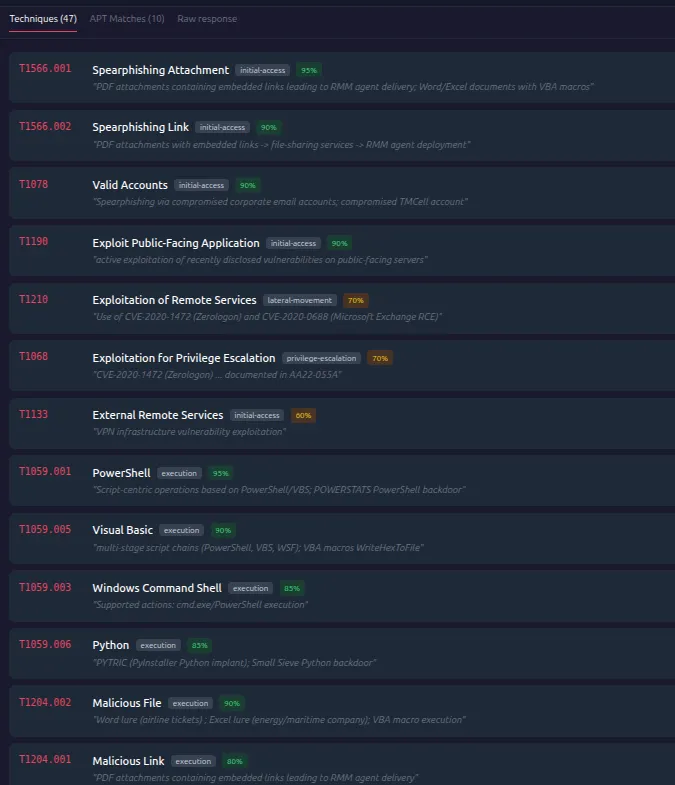

DFIR Examples list

DFIR report analysis workflow

Reference Sync page

Exports​

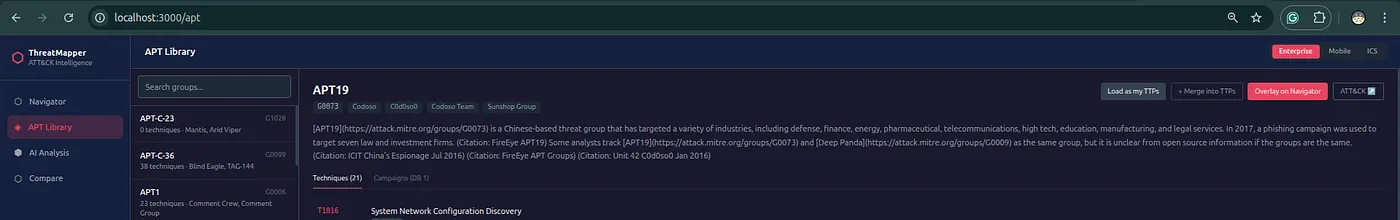

PDF export control

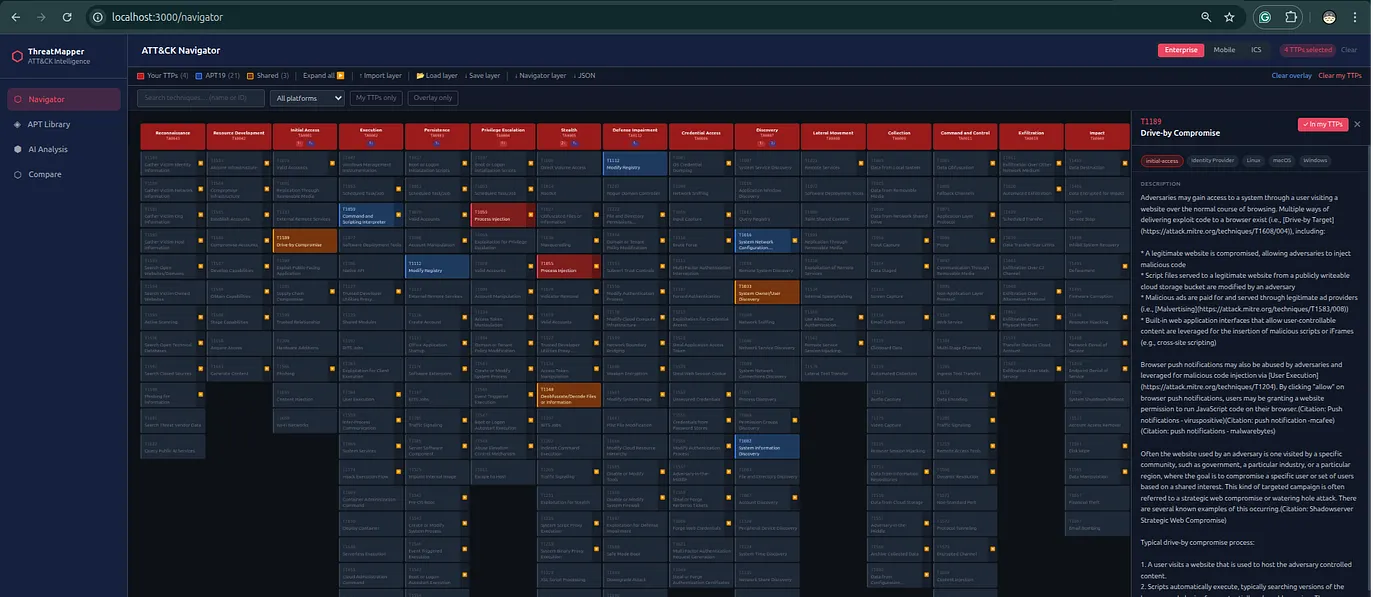

STIX/OpenCTI export flow

ATT&CK Navigator export controls

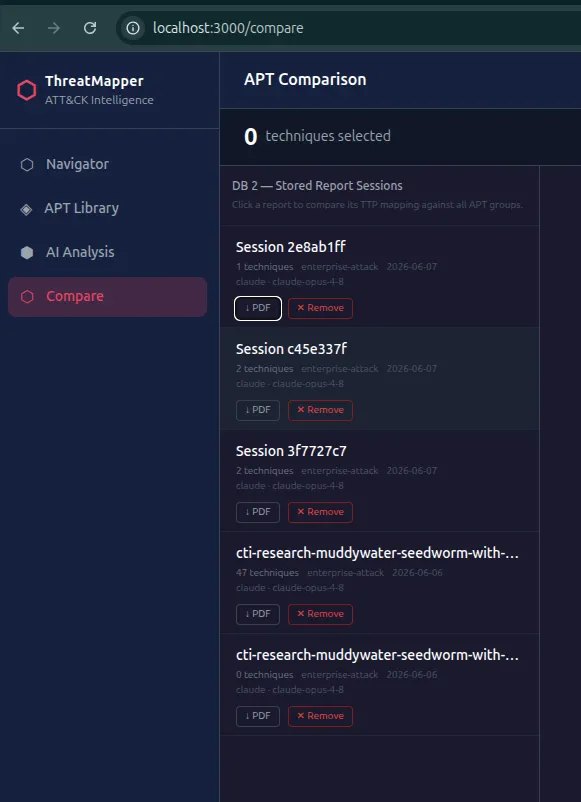

Previous report PDF actions

End-to-End Workflow​

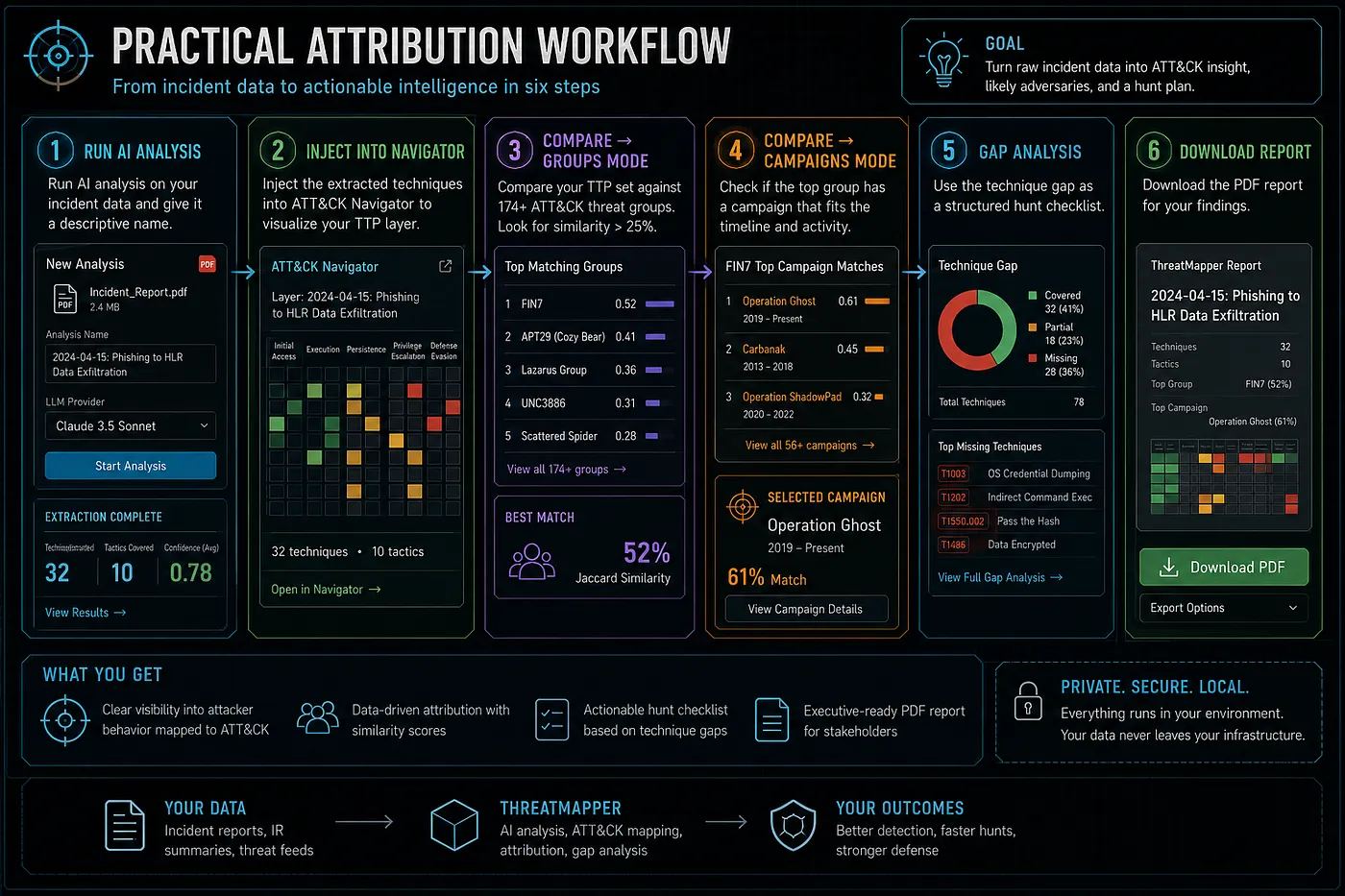

Practical attribution workflow infographic
