2024-09-04: AdversaryGraph live-instance PCAP report

Actual deployment: [local-workspace], HTTP [local-instance]. This is a regression validation, not an independent blind trial. No malware was executed and no malicious endpoint was contacted.

Executive assessment

Decoded 5091 packets across 42 IP endpoints and 221 transport flows. Observed 173 DNS events, 57 HTTP requests, 72 TLS ClientHello events, and 6 exported HTTP object(s). Deterministic rules produced 8 finding(s): 0 high, 1 medium, and 7 low. Findings are evidence-bound candidates and require analyst review; encrypted payload contents remain unavailable.

These findings identify observations and review priorities, not a proven malware family, actor, or causal infection chain. Source-frame evidence takes precedence over exercise answer typos.

Capture and execution evidence

Capture window: 2024-09-04T17:32:31.318609+00:00 to 2024-09-04T18:32:07.478593+00:00 UTC. Capture SHA-256: 8fee06d0b1686faab4364f5b7a741e736ad7e713d5ca9299ff9161a4b4d4862e. Analysis ID: faf041c3-70e0-4a01-8780-10917e5e187c; review session: df6c55a2-3630-4e95-82d0-0eebb41c3b51. First real HTTP upload/analysis: 3.557 seconds. Fresh uncached decoder repeat: 4.924 seconds. Prior isolated upload: 3.919 seconds. The fresh repeat ran while builds/tests were active; these timings are not a controlled performance comparison. Native packet analysis used zero LLM calls and zero LLM tokens. Coding-agent token usage was not instrumented.

Packet result equals prior isolated result: True; fresh repeat exact: True; retained capture checksum valid: True; API retrieval identical: True; idempotent upload: True.

Internal host identities

Address MAC addresses Frame-backed identities
172.17.0.17 00:23:ae:50:ba:fd
172.17.0.255 ff:ff:ff:ff:ff:ff
172.17.0.99 18:3d:a2:b6:8d:c4 account: afletcher; full-name: Andrew Fletcher; hostname: DESKTOP-RNVO9AT

Evidence timeline

UTC Frame Candidate observation
2024-09-04T17:32:31.433000+00:00 31 low: Directory-service protocol activity
2024-09-04T17:32:31.433776+00:00 33 low: Directory-service protocol activity
2024-09-04T17:32:31.819563+00:00 41 low: Repeated unsuccessful DNS resolution
2024-09-04T17:34:35.487359+00:00 382 low: Directory-service protocol activity
2024-09-04T17:34:35.487796+00:00 384 low: Directory-service protocol activity
2024-09-04T17:34:35.491823+00:00 409 low: Directory-service protocol activity
2024-09-04T17:34:35.492327+00:00 410 low: Directory-service protocol activity
2024-09-04T17:35:07.211814+00:00 1668 medium: Repeated outbound HTTP POST activity

Highest-volume conversations

Wire volume includes overhead/retransmissions. A large or periodic flow is not automatically exfiltration or C2.

Initiator Responder Stream Wire bytes First frame
172.17.0.99:49815 46.254.34.201:443 tcp 50 491,261 1699
172.17.0.99:49806 46.254.34.201:443 tcp 41 228,410 1276
172.17.0.99:64936 23.221.24.69:443 udp 40 170,909 2593
172.17.0.99:49792 23.221.24.58:443 tcp 27 93,715 620
172.17.0.99:49793 23.45.119.144:443 tcp 28 79,806 804
172.17.0.99:54541 23.45.119.144:443 udp 32 47,749 2493
172.17.0.99:49824 204.79.197.203:443 tcp 59 25,967 2441
172.17.0.99:49785 172.17.0.17:445 tcp 20 22,539 471
172.17.0.99:49791 204.79.197.203:443 tcp 26 19,999 603
172.17.0.99:49778 172.17.0.17:445 tcp 13 16,831 329
172.17.0.99:49773 20.42.73.28:443 tcp 8 15,792 245
172.17.0.99:49872 23.45.119.144:443 tcp 105 15,076 3919
172.17.0.99:49825 204.79.197.203:443 tcp 60 14,416 2492
172.17.0.99:49851 20.60.228.1:443 tcp 84 14,115 3391
172.17.0.99:49827 23.220.251.153:443 tcp 62 13,960 2626
172.17.0.99:49812 23.195.212.189:443 tcp 47 12,590 1631
172.17.0.99:49862 23.195.212.189:443 tcp 95 12,529 3648
172.17.0.99:49804 23.195.212.189:443 tcp 39 12,469 1200
172.17.0.99:49878 52.113.194.132:443 tcp 111 12,075 4079
172.17.0.99:55398 23.45.119.144:443 udp 35 11,629 2556

Native packet findings, artifacts and limitations

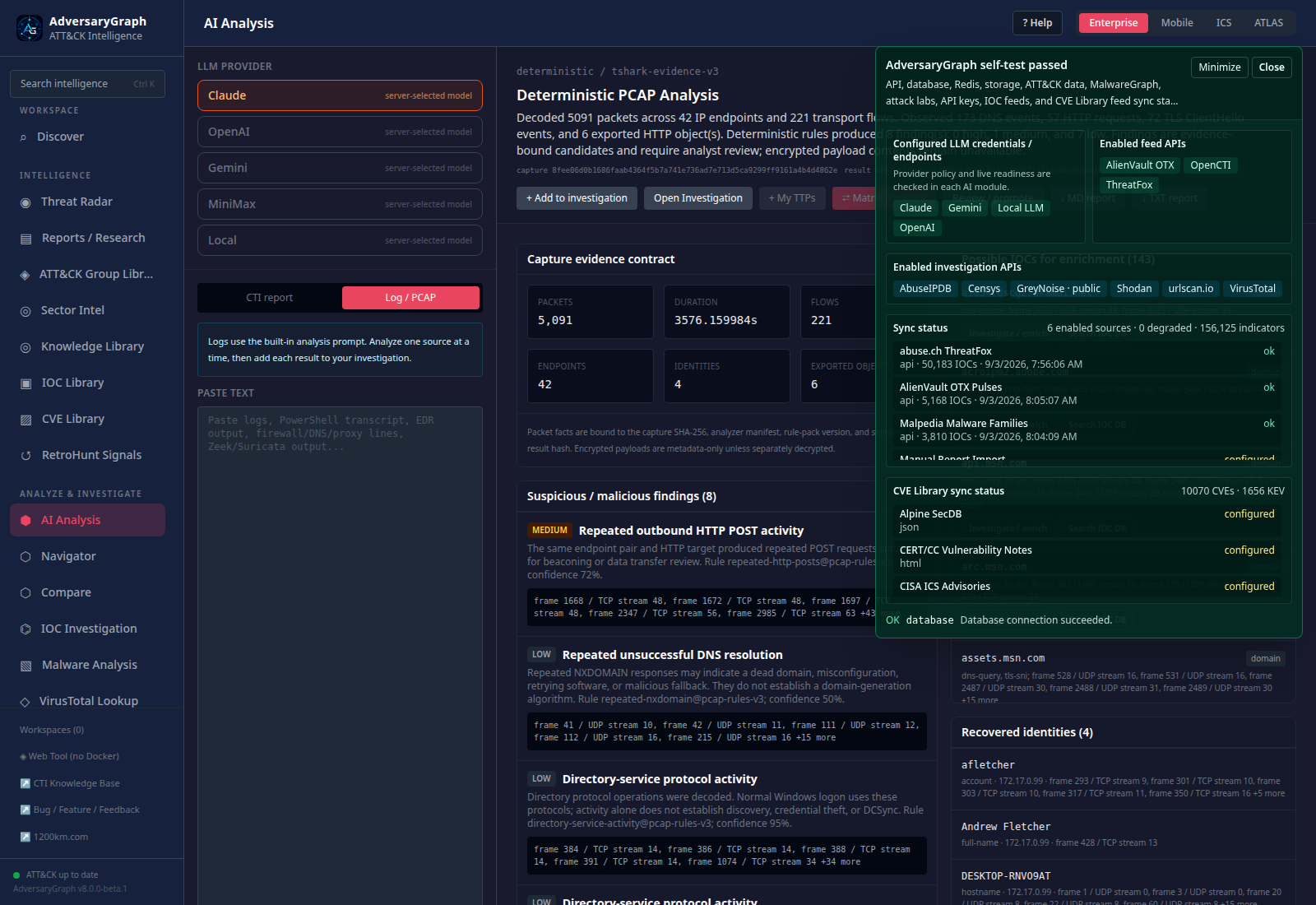

AdversaryGraph Deterministic PCAP Analysis

Source: 2024-09-04-traffic-analysis-exercise.pcap Capture SHA-256: 8fee06d0b1686faab4364f5b7a741e736ad7e713d5ca9299ff9161a4b4d4862e Semantic result SHA-256: 4897ba23edbbda370beb304db04a336b3872d332b86d9834b16bb29e87c6d8b5 Analyzer manifest SHA-256: ee952aeb7cdc6958f4ae5178c54c274a1e4f0aec4d42f3bdb95baaff063b3dde

Executive summary

Decoded 5091 packets across 42 IP endpoints and 221 transport flows. Observed 173 DNS events, 57 HTTP requests, 72 TLS ClientHello events, and 6 exported HTTP object(s). Deterministic rules produced 8 finding(s): 0 high, 1 medium, and 7 low. Findings are evidence-bound candidates and require analyst review; encrypted payload contents remain unavailable.

Capture facts

Deterministic findings

MEDIUM — Repeated outbound HTTP POST activity

The same endpoint pair and HTTP target produced repeated POST requests suitable for beaconing or data transfer review.

Rule: repeated-http-posts@pcap-rules-v3; confidence: 0.72; evidence: frame 1668 / TCP stream 48, frame 1672 / TCP stream 48, frame 1697 / TCP stream 48, frame 2347 / TCP stream 56, frame 2985 / TCP stream 63.

Metrics: {"declared_body_bytes":2046,"destination":"79.124.78.197","host":"79.124.78.197","port":80,"request_count":48,"source":"172.17.0.99","uri":"/foots.php"}

LOW — Repeated unsuccessful DNS resolution

Repeated NXDOMAIN responses may indicate a dead domain, misconfiguration, retrying software, or malicious fallback. They do not establish a domain-generation algorithm.

Rule: repeated-nxdomain@pcap-rules-v3; confidence: 0.5; evidence: frame 41, frame 42, frame 111, frame 112, frame 215.

Metrics: {"domain":"wpad.bepositive.com","response_count":20,"source":"172.17.0.99"}

LOW — Directory-service protocol activity

Directory protocol operations were decoded. Normal Windows logon uses these protocols; activity alone does not establish discovery, credential theft, or DCSync.

Rule: directory-service-activity@pcap-rules-v3; confidence: 0.95; evidence: frame 384 / TCP stream 14, frame 386 / TCP stream 14, frame 388 / TCP stream 14, frame 391 / TCP stream 14, frame 1074 / TCP stream 34.

Metrics: {"destination":"172.17.0.99","event_count":39,"operation_numbers":["0","1","12"],"protocol":"drsuapi","source":"172.17.0.17"}

LOW — Directory-service protocol activity

Directory protocol operations were decoded. Normal Windows logon uses these protocols; activity alone does not establish discovery, credential theft, or DCSync.

Rule: directory-service-activity@pcap-rules-v3; confidence: 0.95; evidence: frame 33 / TCP stream 0, frame 419 / TCP stream 18, frame 431 / TCP stream 18, frame 452 / TCP stream 19, frame 455 / TCP stream 19.

Metrics: {"destination":"172.17.0.99","event_count":66,"operation_numbers":["","1","4,19,19,19,5","4,5","5"],"protocol":"ldap","source":"172.17.0.17"}

LOW — Directory-service protocol activity

Directory protocol operations were decoded. Normal Windows logon uses these protocols; activity alone does not establish discovery, credential theft, or DCSync.

Rule: directory-service-activity@pcap-rules-v3; confidence: 0.95; evidence: frame 410 / TCP stream 13, frame 415 / TCP stream 13, frame 417 / TCP stream 13, frame 420 / TCP stream 13, frame 422 / TCP stream 13.

Metrics: {"destination":"172.17.0.99","event_count":15,"operation_numbers":["1","16","17","3","34","36","39","5","6","64","7"],"protocol":"samr","source":"172.17.0.17"}

LOW — Directory-service protocol activity

Directory protocol operations were decoded. Normal Windows logon uses these protocols; activity alone does not establish discovery, credential theft, or DCSync.

Rule: directory-service-activity@pcap-rules-v3; confidence: 0.95; evidence: frame 382 / TCP stream 14, frame 385 / TCP stream 14, frame 387 / TCP stream 14, frame 389 / TCP stream 14, frame 1073 / TCP stream 34.

Metrics: {"destination":"172.17.0.17","event_count":39,"operation_numbers":["0","1","12"],"protocol":"drsuapi","source":"172.17.0.99"}

LOW — Directory-service protocol activity

Directory protocol operations were decoded. Normal Windows logon uses these protocols; activity alone does not establish discovery, credential theft, or DCSync.

Rule: directory-service-activity@pcap-rules-v3; confidence: 0.95; evidence: frame 31 / TCP stream 0, frame 34 / TCP stream 0, frame 412 / TCP stream 18, frame 430 / TCP stream 18, frame 443 / TCP stream 19.

Metrics: {"destination":"172.17.0.17","event_count":84,"operation_numbers":["","0","2","3"],"protocol":"ldap","source":"172.17.0.99"}

LOW — Directory-service protocol activity

Directory protocol operations were decoded. Normal Windows logon uses these protocols; activity alone does not establish discovery, credential theft, or DCSync.

Rule: directory-service-activity@pcap-rules-v3; confidence: 0.95; evidence: frame 409 / TCP stream 13, frame 413 / TCP stream 13, frame 416 / TCP stream 13, frame 418 / TCP stream 13, frame 421 / TCP stream 13.

Metrics: {"destination":"172.17.0.17","event_count":15,"operation_numbers":["1","16","17","3","34","36","39","5","6","64","7"],"protocol":"samr","source":"172.17.0.99"}

ATT&CK candidates

Identities

IOC and artifact candidates

Actor similarity leads

Local enrichment and correlations

No match means unknown in this corpus. Local CTI may postdate the capture. Matches and shared infrastructure require review; no automatic promotion or attribution. Snapshot: 99bf9b0d5c90e5eb36c1f5a055241fc0beb1b677bd448cb59545c1ac1d629049; recorded 2026-09-19T12:08:45.501397+00:00; mode: local-only. Coverage: {"matched_observables":0,"no_exact_match":147,"observable_limit":5000,"observables_checked":147,"observables_total":147,"prior_case_limit_reached":false,"prior_cases_checked":7,"truncated":false}

Coverage and limitations

Live enrichment and correlation validation

The actual IOC library contained 156,125 records. Exact typed matches: 0; source actor assertions: 0. Independent SQL agrees: IOC=True, actors=True. A miss is unknown in this corpus, not evidence of benignness. The earlier isolated corpus included publisher-reference records; its positive matches were not live-provider detections and are not comparable to natural coverage here. ATT&CK catalog candidates: 0; current-version catalog checks passed: True. Detection-strategy joins were checked independently. Cross-case links: 7; independently verified: True. These are shared observations, predominantly common service infrastructure, not common-campaign assertions.

Passive local lookup target Type Local matches
79.124.78.197 ipv4 0
ed0855c1637e5f93be7d54acb2cb8872683a0e5eb670258abb1ebc41bfbf4591 sha256 0
736f0cb5cc23435dad920dbe447efcf102e61c8691fa8528f5f39f386537f43e sha256 0

Approved external passive enrichment

Completed 3/3 planned case indicators. Shared indicators reuse one saved lookup rather than consume provider quota repeatedly.

These lookups used the actual local application and were explicitly authorized. No PCAP or payload was uploaded, no private address was disclosed, no target was scanned, and no AI provider was invoked. Tier-two/three pivots query the local corpus only.

Provider intelligence was retrieved after the captures: current reputation, hosting and service observations do not establish historical causality. not_found means absent from that provider, not benign. Family labels and ATT&CK/actor leads remain source assertions awaiting review.

Historical coverage caveat: ThreatFox documents a six-month IOC expiration policy for its API since May 2025. That can limit these older exercises; it does not prove why any particular lookup missed. ThreatFox API policy.

79.124.78.197

Type: ip; request: 6.462 seconds; completed: 2026-09-19T14:15:15.423320+00:00. Persistence reread identical: True. Public provider summary. Platform triage score: 78/100 (highly suspicious); a heuristic priority, not calibrated probability. Graph: 13 nodes, 17 edges; local deeper-tier matches: 0/0.

Provider Outcome Returned context / limitation
local-db ok Found 0 local IOC record(s).
virustotal ok 1 engines marked malicious and 0 suspicious; 53 harmless, 35 undetected.
threatfox not_found ThreatFox returned 0 record(s). Query status: no_result
malwarebazaar skipped MalwareBazaar is hash-focused; input is not a hash.
otx ok OTX returned 1 pulse(s).
urlscan ok urlscan returned 10 scan result(s). urlscan activity analysis found 2 suspicious pattern(s).
greynoise not_found GreyNoise classification: unknown. Query status: not_found
abuseipdb ok AbuseIPDB confidence score: 0/100.
shodan not_found Shodan returned 0 open port(s). Query status: not_found
censys ok Censys host lookup returned 0 service(s).

Provider ATT&CK leads (not packet-observed execution):

ID Name Source / scope
T1005 Data from Local System otx (submitted indicator; provider-reported lead, not packet execution proof)
T1027 Obfuscated Files or Information otx (submitted indicator; provider-reported lead, not packet execution proof)
T1041 Exfiltration Over C2 Channel otx (submitted indicator; provider-reported lead, not packet execution proof)
T1053.005 Scheduled Task otx (submitted indicator; provider-reported lead, not packet execution proof)
T1105 Ingress Tool Transfer otx (submitted indicator; provider-reported lead, not packet execution proof)
T1106 Native API otx (submitted indicator; provider-reported lead, not packet execution proof)
T1204.002 Malicious File otx (submitted indicator; provider-reported lead, not packet execution proof)
T1497 Virtualization/Sandbox Evasion otx (submitted indicator; provider-reported lead, not packet execution proof)
T1543.001 Launch Agent otx (submitted indicator; provider-reported lead, not packet execution proof)
T1547 Boot or Logon Autostart Execution otx (submitted indicator; provider-reported lead, not packet execution proof)

No actor lead returned. This does not establish absence of an actor.

ed0855c1637e5f93be7d54acb2cb8872683a0e5eb670258abb1ebc41bfbf4591

Type: hash; request: 3.578 seconds; completed: 2026-09-19T14:15:32.530883+00:00. Persistence reread identical: True. Public provider summary. Platform triage score: 0/100 (low signal); a heuristic priority, not calibrated probability. Graph: 1 nodes, 0 edges; local deeper-tier matches: 0/0.

Provider Outcome Returned context / limitation
local-db ok Found 0 local IOC record(s).
virustotal ok No malicious detections in last analysis; 0 harmless, 60 undetected.
VirusTotal classification/name hints unreviewed; may include benign filenames index.php
threatfox not_found ThreatFox returned 0 record(s). Query status: no_result
malwarebazaar not_found MalwareBazaar returned 0 sample record(s). Query status: hash_not_found
otx ok OTX returned 0 pulse(s).
urlscan ok urlscan returned 0 scan result(s). urlscan activity analysis found no obvious suspicious pattern.
greynoise skipped GreyNoise is IP-focused; input is not an IP.
abuseipdb skipped AbuseIPDB is IP-focused; input is not an IP.
shodan skipped Shodan host lookup is IP-focused; input is not an IP.
censys skipped Censys host and search pivots support IP, domain, and URL inputs.

No actor lead returned. This does not establish absence of an actor.

736f0cb5cc23435dad920dbe447efcf102e61c8691fa8528f5f39f386537f43e

Type: hash; request: 4.736 seconds; completed: 2026-09-19T14:15:53.691324+00:00. Persistence reread identical: True. Public provider summary. Platform triage score: 21/100 (needs review); a heuristic priority, not calibrated probability. Graph: 4 nodes, 4 edges; local deeper-tier matches: 0/0.

Provider Outcome Returned context / limitation
local-db ok Found 0 local IOC record(s).
virustotal ok No malicious detections in last analysis; 0 harmless, 61 undetected.
VirusTotal classification/name hints unreviewed; may include benign filenames index.php%3fid=&subid=qIOuKk7U
threatfox not_found ThreatFox returned 0 record(s). Query status: no_result
malwarebazaar not_found MalwareBazaar returned 0 sample record(s). Query status: hash_not_found
otx ok OTX returned 0 pulse(s).
urlscan ok urlscan returned 2 scan result(s). urlscan activity analysis found no obvious suspicious pattern.
greynoise skipped GreyNoise is IP-focused; input is not an IP.
abuseipdb skipped AbuseIPDB is IP-focused; input is not an IP.
shodan skipped Shodan host lookup is IP-focused; input is not an IP.
censys skipped Censys host and search pivots support IP, domain, and URL inputs.

Provider ATT&CK leads (not packet-observed execution):

ID Name Source / scope
T1033 System Owner/User Discovery virustotal (submitted indicator; provider-reported lead, not packet execution proof)
T1055 Process Injection virustotal (submitted indicator; provider-reported lead, not packet execution proof)
T1064 virustotal (submitted indicator; provider-reported lead, not packet execution proof)
T1082 System Information Discovery virustotal (submitted indicator; provider-reported lead, not packet execution proof)

No actor lead returned. This does not establish absence of an actor.

The live case contains 3 explicitly linked, exact-type/value PCAP observables. 1 retain frame references; remaining exported-object hashes retain native object IDs and capture-export provenance, not an exact packet-frame map. Every link retains the capture checksum, points to a saved provider investigation, and was reread from the real API. Case actor associations remain empty. Verified graph links.

Current ATT&CK catalog and detection-strategy joins

These are read-only joins against the actual database, not generated detections or proof that the victim executed the technique. A valid catalog join cannot validate the original provider assertion.

Technique Current catalog match Available detection strategies
T1005 True Detection of Local Data Collection Prior to Exfiltration (x-mitre-detection-strategy--36bb5edf-e7b6-4d36-8ccc-1a18ddc573da)
T1027 True Behavioral Detection of Obfuscated Files or Information (x-mitre-detection-strategy--e3758cbb-5dd9-4aad-b848-0539a8c56307)
T1033 True Behavioral Detection of User Discovery via Local and Remote Enumeration (x-mitre-detection-strategy--050d236f-745a-4801-add6-50cb58248615)
T1041 True Detection Strategy for Exfiltration Over C2 Channel (x-mitre-detection-strategy--beb3a98c-f1a4-434a-81e7-29d178b14db2)
T1053.005 True Detection of Suspicious Scheduled Task Creation and Execution on Windows (x-mitre-detection-strategy--c7bdd7d7-19dc-4042-8565-5e0cf4656102)
T1055 True Behavioral Detection of Process Injection Across Platforms (x-mitre-detection-strategy--9833b57b-4c83-4f58-b4cf-76f041b29273)
T1064 False None returned
T1082 True System Discovery via Native and Remote Utilities (x-mitre-detection-strategy--75161d5e-2b6d-4112-ab4d-338f70ea97f0)
T1105 True Detect Ingress Tool Transfers via Behavioral Chain (x-mitre-detection-strategy--67677c4c-5778-49eb-ae74-1920645b8554)
T1106 True Behavioral Detection of Native API Invocation via Unusual DLL Loads and Direct Syscalls (x-mitre-detection-strategy--36654ec6-5019-4e79-b299-1fbf3a03e064)
T1204.002 True User Execution – Malicious File via download/open → spawn chain (T1204.002) (x-mitre-detection-strategy--e2023eb5-d813-4a08-985e-e8c998672037)
T1497 True Detection Strategy for T1497 Virtualization/Sandbox Evasion (x-mitre-detection-strategy--7f5dde79-7872-48dd-8718-cd2e10d7cbfc)
T1543.001 True Detection of Launch Agent Creation or Modification on macOS (x-mitre-detection-strategy--4dbd7441-627f-4d5a-a060-28fe6a8cbb9e)
T1547 True Boot or Logon Autostart Execution Detection Strategy (x-mitre-detection-strategy--a9796458-df5d-467f-b037-acad6c261f25)
Prior analysis Shared count Example observations
08324647-35af-4af2-8d82-4387eec03918 38 a1834.dscg2.akamai.net, acroipm2.adobe.com, api.msn.com, assets.msn.com, client.wns.windows.com
616a90fa-f15e-4fcb-8d56-7b8e0eff5785 12 fd.api.iris.microsoft.com, login.microsoftonline.com, mobile.events.data.microsoft.com, odc.officeapps.live.com, settings-win.data.microsoft.com
459e119d-191f-49e8-85ea-c78f9de41826 31 a1834.dscg2.akamai.net, api.msn.com, assets.msn.com, client.wns.windows.com, ctldl.windowsupdate.com
7a2cfe72-f48d-4894-8a2d-8889cb3b11b2 47 a1834.dscg2.akamai.net, acroipm2.adobe.com, api.msn.com, assets.msn.com, client.wns.windows.com
81373b30-6a59-49d1-89b0-bad73ed19eaa 26 a1834.dscg2.akamai.net, api.msn.com, assets.msn.com, client.wns.windows.com, dns.msftncsi.com
38851ad7-b3a0-423d-ae89-3b7be4e4b908 26 acroipm2.adobe.com, api.msn.com, assets.msn.com, client.wns.windows.com, ctldl.windowsupdate.com
bfccc426-aa9b-4007-8558-a66d37ecb90c 56 a1834.dscg2.akamai.net, api.msn.com, assets.msn.com, client.wns.windows.com, ctldl.windowsupdate.com

Comparison with publisher answers and earlier runs

The following comparison is separate from native inference. It measures availability of selected facts, not 100% incident-diagnosis accuracy.

Publisher answer.

The engine retains the three PHP request paths and repeated POST activity, but does not independently identify Koi Stealer. The publisher bases that label on supplied ETPRO alerts, which were not fed to this PCAP-only run.

Client Field Packet-verified expected value Live
172.17.0.99 ip 172.17.0.99 True
172.17.0.99 mac 18:3d:a2:b6:8d:c4 True
172.17.0.99 hostname DESKTOP-RNVO9AT True
172.17.0.99 account afletcher True

Declared IOC subset available: 1/1. Not exhaustive recall.

Browser history/open, Markdown export and investigation transfer: True. Investigation ID: 51b8fd21-ce38-44fb-9a74-86602c0275db. Investigation transfers preserve a bounded preview, total count, source-analysis URL and hashes. Complete evidence remains server-side. TTP-overlap leads are not inserted into actor associations. PDF export: HTTP 200, including an explicitly non-authoritative packet-evidence appendix. STIX export remains HTTP 409 until a human completes review/promotion; this is a successful safety check.

Follow-up priorities

Validate high/medium findings using frame/stream evidence; obtain process and endpoint telemetry for execution, persistence and credential-theft hypotheses. Provider data above is current-time external context, not historical execution evidence. Review shared-CDN matches for specificity. Do not execute exported objects or treat encrypted payload metadata as decrypted evidence.
