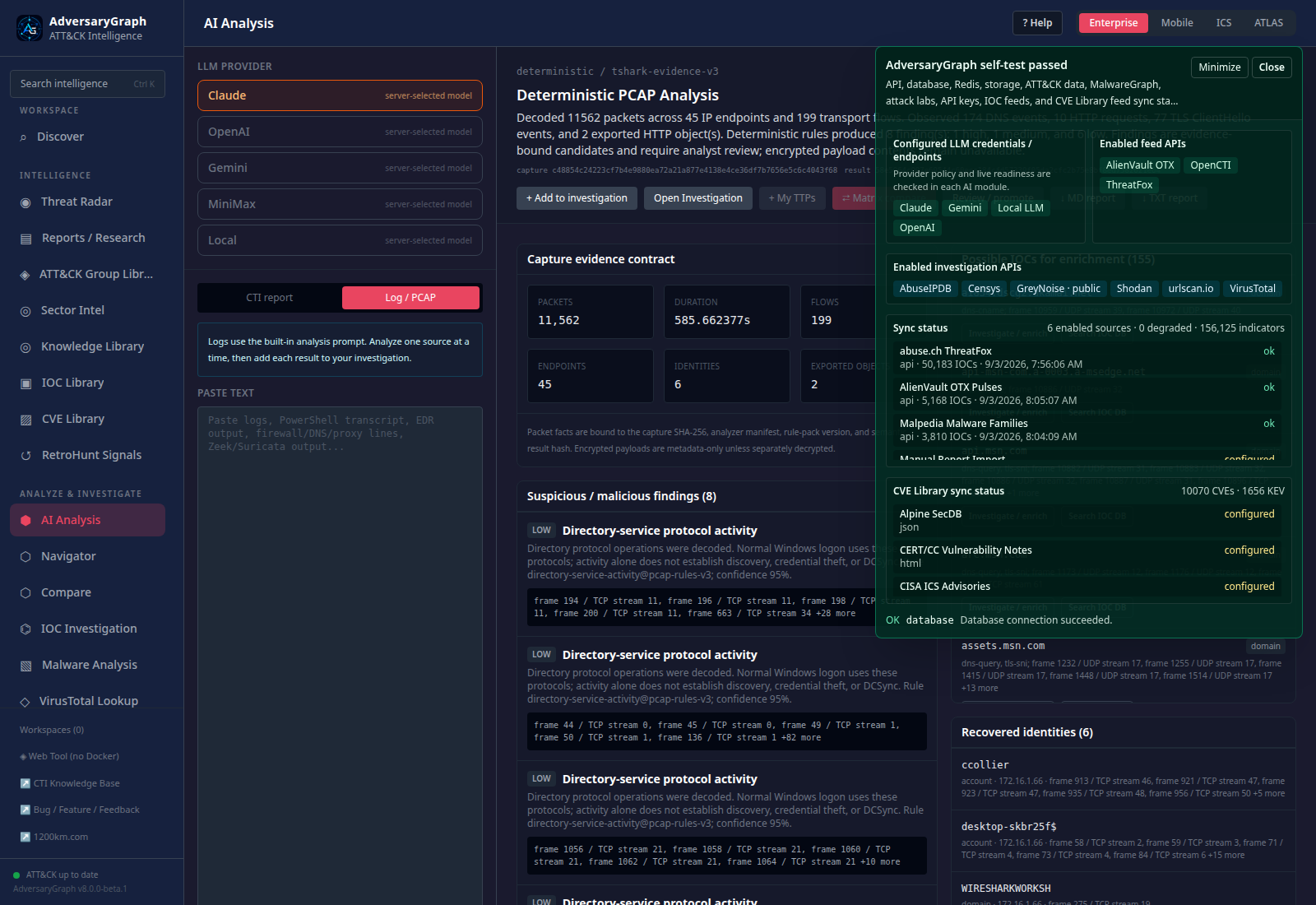

2024-07-30: AdversaryGraph live-instance PCAP report
Actual deployment: [local-workspace], HTTP [local-instance]. This is a regression validation, not an independent blind trial. No malware was executed and no malicious endpoint was contacted.
Executive assessment
Decoded 11562 packets across 45 IP endpoints and 199 transport flows. Observed 174 DNS events, 10 HTTP requests, 77 TLS ClientHello events, and 2 exported HTTP object(s). Deterministic rules produced 8 finding(s): 1 high, 1 medium, and 6 low. Findings are evidence-bound candidates and require analyst review; encrypted payload contents remain unavailable.
These findings identify observations and review priorities, not a proven malware family, actor, or causal infection chain. Source-frame evidence takes precedence over exercise answer typos.
Capture and execution evidence
Capture window: 2024-07-30T02:38:48.960835+00:00 to 2024-07-30T02:48:34.623212+00:00 UTC.
Capture SHA-256: c48854c24223cf7b4e9880ea72a21a877e4138e4ce36df7b7656e5c6c4043f68.
Analysis ID: 29aa3ef8-47c9-4c47-b4cc-1ff3e0708142; review session: ce8cf5b8-2927-4b30-804c-2fedaec840f1.
First real HTTP upload/analysis: 5.405 seconds. Fresh uncached decoder repeat: 9.262 seconds. Prior isolated upload: 5.743 seconds.
The fresh repeat ran while builds/tests were active; these timings are not a controlled performance comparison. Native packet analysis used zero LLM calls and zero LLM tokens. Coding-agent token usage was not instrumented.
Packet result equals prior isolated result: True; fresh repeat exact: True; retained capture checksum valid: True; API retrieval identical: True; idempotent upload: True.
Internal host identities
| Address | MAC addresses | Frame-backed identities |
|---|---|---|
| 172.16.1.255 | ff:ff:ff:ff:ff:ff | |
| 172.16.1.4 | 5c:f9:dd:8c:97:35 | |
| 172.16.1.66 | 00:1e:64:ec:f3:08 | account: ccollier; account: desktop-skbr25f$; domain: WIRESHARKWORKSH; full-name: Clark Collier; hostname: DESKTOP-SKBR25F |
Evidence timeline
| UTC | Frame | Candidate observation |
|---|---|---|
| 2024-07-30T02:38:49.102370+00:00 | 42 | low: Directory-service protocol activity |
| 2024-07-30T02:38:49.102776+00:00 | 44 | low: Directory-service protocol activity |
| 2024-07-30T02:38:49.246746+00:00 | 193 | low: Directory-service protocol activity |
| 2024-07-30T02:38:49.246973+00:00 | 194 | low: Directory-service protocol activity |
| 2024-07-30T02:39:12.789680+00:00 | 1055 | low: Directory-service protocol activity |
| 2024-07-30T02:39:12.790024+00:00 | 1056 | low: Directory-service protocol activity |
| 2024-07-30T02:40:05.953226+00:00 | 9066 | medium: Sustained external TCP conversation outside decoded application coverage |
| 2024-07-30T02:40:07.027145+00:00 | 9119 | high: Client announces a software label and host identity |
Highest-volume conversations
Wire volume includes overhead/retransmissions. A large or periodic flow is not automatically exfiltration or C2.
| Initiator | Responder | Stream | Wire bytes | First frame |
|---|---|---|---|---|
| 172.16.1.66:49752 | 199.232.196.209:443 | tcp 81 | 4,514,217 | 2511 |
| 172.16.1.66:49753 | 199.232.196.209:443 | tcp 82 | 2,802,406 | 2512 |
| 172.16.1.66:49751 | 199.232.196.209:443 | tcp 80 | 1,578,208 | 2510 |
| 172.16.1.66:49750 | 185.199.110.133:443 | tcp 79 | 833,969 | 1857 |
| 172.16.1.66:49734 | 23.198.7.175:443 | tcp 62 | 120,567 | 1234 |
| 172.16.1.66:49803 | 20.189.173.26:443 | tcp 133 | 70,374 | 10450 |
| 172.16.1.66:49793 | 52.113.194.132:443 | tcp 119 | 68,284 | 10133 |
| 172.16.1.66:49743 | 23.48.203.208:443 | tcp 71 | 65,007 | 1516 |
| 172.16.1.66:49694 | 172.16.1.4:445 | tcp 21 | 62,771 | 295 |
| 172.16.1.66:49814 | 23.53.11.166:443 | tcp 144 | 58,051 | 10890 |
| 172.16.1.66:49820 | 23.194.164.136:443 | tcp 150 | 48,861 | 11234 |
| 172.16.1.66:49817 | 23.198.7.168:443 | tcp 147 | 47,809 | 10962 |
| 172.16.1.66:49792 | 52.109.0.91:443 | tcp 118 | 39,650 | 10081 |
| 172.16.1.66:49754 | 141.98.10.79:12132 | tcp 83 | 39,064 | 9066 |
| 172.16.1.66:49801 | 20.189.173.10:443 | tcp 131 | 35,456 | 10346 |
| 172.16.1.66:49761 | 23.198.7.177:443 | tcp 90 | 33,472 | 9199 |
| 172.16.1.66:49819 | 23.46.192.165:443 | tcp 149 | 30,221 | 11032 |
| 172.16.1.66:49742 | 23.48.203.208:443 | tcp 70 | 28,407 | 1515 |
| 172.16.1.66:49810 | 204.79.197.203:443 | tcp 140 | 25,673 | 10817 |
| 172.16.1.66:49728 | 172.16.1.4:445 | tcp 56 | 23,383 | 1097 |
Native packet findings, artifacts and limitations
AdversaryGraph Deterministic PCAP Analysis
Source: 2024-07-30-traffic-analysis-exercise.pcap
Capture SHA-256: c48854c24223cf7b4e9880ea72a21a877e4138e4ce36df7b7656e5c6c4043f68
Semantic result SHA-256: 58e5064c997e69544c60ecc184cfd57339f05da2cfc2b75e8bf8ed7582621e64
Analyzer manifest SHA-256: ee952aeb7cdc6958f4ae5178c54c274a1e4f0aec4d42f3bdb95baaff063b3dde
Executive summary
Decoded 11562 packets across 45 IP endpoints and 199 transport flows. Observed 174 DNS events, 10 HTTP requests, 77 TLS ClientHello events, and 2 exported HTTP object(s). Deterministic rules produced 8 finding(s): 1 high, 1 medium, and 6 low. Findings are evidence-bound candidates and require analyst review; encrypted payload contents remain unavailable.
Capture facts
- Packets: 11562
- Duration: 585.662377 seconds
- Captured bytes: 11341372
- Endpoints: 45
- Flows: 199
Deterministic findings
LOW — Directory-service protocol activity
Directory protocol operations were decoded. Normal Windows logon uses these protocols; activity alone does not establish discovery, credential theft, or DCSync.
Rule: directory-service-activity@pcap-rules-v3; confidence: 0.95; evidence: frame 194 / TCP stream 11, frame 196 / TCP stream 11, frame 198 / TCP stream 11, frame 200 / TCP stream 11, frame 663 / TCP stream 34.
Metrics: {"destination":"172.16.1.66","event_count":33,"operation_numbers":["0","1","12","13"],"protocol":"drsuapi","source":"172.16.1.4"}
LOW — Directory-service protocol activity
Directory protocol operations were decoded. Normal Windows logon uses these protocols; activity alone does not establish discovery, credential theft, or DCSync.
Rule: directory-service-activity@pcap-rules-v3; confidence: 0.95; evidence: frame 44 / TCP stream 0, frame 45 / TCP stream 0, frame 49 / TCP stream 1, frame 50 / TCP stream 1, frame 136 / TCP stream 1.
Metrics: {"destination":"172.16.1.66","event_count":87,"operation_numbers":["","1","4","4,19,19,19,5","4,5","5"],"protocol":"ldap","source":"172.16.1.4"}
LOW — Directory-service protocol activity
Directory protocol operations were decoded. Normal Windows logon uses these protocols; activity alone does not establish discovery, credential theft, or DCSync.
Rule: directory-service-activity@pcap-rules-v3; confidence: 0.95; evidence: frame 1056 / TCP stream 21, frame 1058 / TCP stream 21, frame 1060 / TCP stream 21, frame 1062 / TCP stream 21, frame 1064 / TCP stream 21.
Metrics: {"destination":"172.16.1.66","event_count":15,"operation_numbers":["1","16","17","3","34","36","39","5","6","64","7"],"protocol":"samr","source":"172.16.1.4"}
LOW — Directory-service protocol activity
Directory protocol operations were decoded. Normal Windows logon uses these protocols; activity alone does not establish discovery, credential theft, or DCSync.
Rule: directory-service-activity@pcap-rules-v3; confidence: 0.95; evidence: frame 193 / TCP stream 11, frame 195 / TCP stream 11, frame 197 / TCP stream 11, frame 199 / TCP stream 11, frame 662 / TCP stream 34.
Metrics: {"destination":"172.16.1.4","event_count":33,"operation_numbers":["0","1","12","13"],"protocol":"drsuapi","source":"172.16.1.66"}
LOW — Directory-service protocol activity
Directory protocol operations were decoded. Normal Windows logon uses these protocols; activity alone does not establish discovery, credential theft, or DCSync.
Rule: directory-service-activity@pcap-rules-v3; confidence: 0.95; evidence: frame 42 / TCP stream 0, frame 46 / TCP stream 1, frame 128 / TCP stream 5, frame 130 / TCP stream 1, frame 133 / TCP stream 0.
Metrics: {"destination":"172.16.1.4","event_count":99,"operation_numbers":["","0","2","3"],"protocol":"ldap","source":"172.16.1.66"}
LOW — Directory-service protocol activity
Directory protocol operations were decoded. Normal Windows logon uses these protocols; activity alone does not establish discovery, credential theft, or DCSync.
Rule: directory-service-activity@pcap-rules-v3; confidence: 0.95; evidence: frame 1055 / TCP stream 21, frame 1057 / TCP stream 21, frame 1059 / TCP stream 21, frame 1061 / TCP stream 21, frame 1063 / TCP stream 21.
Metrics: {"destination":"172.16.1.4","event_count":15,"operation_numbers":["1","16","17","3","34","36","39","5","6","64","7"],"protocol":"samr","source":"172.16.1.66"}
HIGH — Client announces a software label and host identity
An otherwise unclassified TCP payload contains a structured ping, software label, client identifier, hostname and account. These are literal self-reported values, not authenticated identity or independent malware-family attribution.
Rule: cleartext-tool-self-identification@pcap-rules-v3; confidence: 0.98; evidence: frame 9119 / TCP stream 83, frame 9352 / TCP stream 83, frame 9530 / TCP stream 83, frame 9537 / TCP stream 83, frame 9563 / TCP stream 83.
Metrics: {"claimed_account":"ccollier","claimed_hostname":"DESKTOP-SKBR25F","client_id":"1BE8292C","destination":"141.98.10.79","destination_port":12132,"message_count":102,"software_label":"STRRAT","source":"172.16.1.66"}
MEDIUM — Sustained external TCP conversation outside decoded application coverage
The flow exchanges traffic with a public endpoint but has no HTTP/TLS/identity event in this profile. Inspect the stream for a custom protocol or a missing handshake. This is a coverage/investigation lead, not a malware verdict.
Rule: unclassified-external-tcp@pcap-rules-v3; confidence: 0.7; evidence: frame 9066 / TCP stream 83.
Metrics: {"destination":"141.98.10.79","destination_port":12132,"duration_seconds":508.67,"packets":411,"source":"172.16.1.66","wire_bytes":39064}
ATT&CK candidates
- No deterministic ATT&CK candidates.
Identities
- account:
ccollier; client IPs: 172.16.1.66; frames: 913, 921, 923, 935, 956 - account:
desktop-skbr25f$; client IPs: 172.16.1.66; frames: 58, 59, 71, 73, 84 - domain:
WIRESHARKWORKSH; client IPs: 172.16.1.66; frames: 275 - full-name:
Clark Collier; client IPs: 172.16.1.66; frames: 1070 - hostname:
DESKTOP-SKBR25F; client IPs: 172.16.1.66; frames: 29, 30, 275, 499, 500 - netbios-group:
WIRESHARKWORKSH; client IPs: unbound subject; frames: 31, 501, 615, 616, 624
IOC and artifact candidates
- domain:
a1834.dscg2.akamai.net; roles: dns-cname - domain:
api-msn-com.a-0003.a-msedge.net; roles: dns-cname - domain:
api.msn.com; roles: dns-query, tls-sni - domain:
arc.msn.com; roles: dns-query, tls-sni - domain:
assets.msn.com; roles: dns-query, tls-sni - domain:
autodiscover-s.outlook.com; roles: dns-query, tls-sni - domain:
autodiscover.wiresharkworkshop.online; roles: dns-query - domain:
client.wns.windows.com; roles: dns-query, tls-sni - domain:
config.edge.skype.com; roles: dns-query, tls-sni - domain:
default.exp-tas.com; roles: dns-query, tls-sni - domain:
desktop-skbr25f.wiresharkworkshop.online; roles: dns-query - domain:
dualstack.sonatype.map.fastly.net; roles: dns-cname - domain:
ecn.dev.virtualearth.net; roles: dns-query, tls-sni - domain:
ecs.office.com; roles: dns-query, tls-sni - domain:
fd.api.iris.microsoft.com; roles: dns-query - domain:
g.live.com; roles: dns-query, tls-sni - domain:
github.com; roles: dns-query, tls-sni - domain:
go.microsoft.com; roles: dns-query, tls-sni - domain:
img-s-msn-com.akamaized.net; roles: dns-query, tls-sni - domain:
ip-api.com; roles: dns-query, http-host - domain:
javadl-esd-secure.oracle.com; roles: dns-query, tls-sni - domain:
login.microsoftonline.com; roles: dns-query, tls-sni - domain:
metadata.templates.cdn.office.net; roles: dns-query, tls-sni - domain:
mobile.events.data.microsoft.com; roles: dns-query, tls-sni - domain:
msedge.api.cdp.microsoft.com; roles: dns-query, tls-sni - domain:
objects.githubusercontent.com; roles: dns-query, tls-sni - domain:
odc.officeapps.live.com; roles: dns-query, tls-sni - domain:
officeclient.microsoft.com; roles: dns-query, tls-sni - domain:
oneclient.sfx.ms; roles: dns-query, tls-sni - domain:
pti.store.microsoft.com; roles: dns-query - domain:
repo1.maven.org; roles: dns-query, tls-sni - domain:
settings-win.data.microsoft.com; roles: dns-query, tls-sni - domain:
srtb.msn.com; roles: dns-query, tls-sni - domain:
th.bing.com; roles: dns-query, tls-sni - domain:
v10.events.data.microsoft.com; roles: dns-query, tls-sni - domain:
v20.events.data.microsoft.com; roles: dns-query, tls-sni - domain:
windows.msn.com; roles: dns-query, tls-sni - domain:
wireshark-ws-dc.wiresharkworkshop.online; roles: dns-query - domain:
wiresharkworkshop.online; roles: dns-query - domain:
wns.notify.trafficmanager.net; roles: dns-cname - domain:
wpad.wiresharkworkshop.online; roles: dns-query - domain:
www.bing.com; roles: dns-query, tls-sni - domain:
www.msftconnecttest.com; roles: dns-query, http-host - domain:
www.msn.com; roles: dns-query, tls-sni - ipv4:
13.107.42.16; roles: dns-answer, network-endpoint - ipv4:
13.107.5.93; roles: dns-answer, network-endpoint - ipv4:
13.69.239.79; roles: dns-answer, network-endpoint - ipv4:
140.82.113.3; roles: dns-answer, network-endpoint - ipv4:
141.98.10.79; roles: network-endpoint - ipv4:
172.16.1.255; roles: network-endpoint - ipv4:
172.16.1.4; roles: dns-answer, network-endpoint - ipv4:
172.16.1.66; roles: dns-answer, network-endpoint - ipv4:
185.199.108.133; roles: dns-answer - ipv4:
185.199.109.133; roles: dns-answer - ipv4:
185.199.110.133; roles: dns-answer, network-endpoint - ipv4:
185.199.111.133; roles: dns-answer - ipv4:
199.232.192.209; roles: dns-answer - ipv4:
199.232.196.209; roles: dns-answer, network-endpoint - ipv4:
20.166.2.191; roles: dns-answer, network-endpoint - ipv4:
20.189.173.10; roles: dns-answer, network-endpoint - ipv4:
20.189.173.16; roles: dns-answer, network-endpoint - ipv4:
20.189.173.26; roles: dns-answer, network-endpoint - ipv4:
20.190.157.11; roles: dns-answer - ipv4:
20.190.157.9; roles: dns-answer - ipv4:
20.241.44.114; roles: dns-answer, network-endpoint - ipv4:
20.7.1.246; roles: network-endpoint - ipv4:
20.7.2.167; roles: dns-answer, network-endpoint - ipv4:
20.96.153.111; roles: dns-answer, network-endpoint - ipv4:
204.79.197.203; roles: dns-answer, network-endpoint - ipv4:
208.95.112.1; roles: dns-answer, network-endpoint - ipv4:
224.0.0.22; roles: network-endpoint - ipv4:
224.0.0.251; roles: network-endpoint - ipv4:
224.0.0.252; roles: network-endpoint - ipv4:
23.194.164.136; roles: dns-answer, network-endpoint - ipv4:
23.198.7.167; roles: dns-answer - ipv4:
23.198.7.168; roles: dns-answer, network-endpoint - ipv4:
23.198.7.169; roles: dns-answer - ipv4:
23.198.7.170; roles: dns-answer - ipv4:
23.198.7.172; roles: dns-answer - ipv4:
23.198.7.173; roles: dns-answer - ipv4:
23.198.7.174; roles: dns-answer - ipv4:
23.198.7.175; roles: dns-answer, network-endpoint - ipv4:
23.198.7.176; roles: dns-answer - ipv4:
23.198.7.177; roles: dns-answer, network-endpoint - ipv4:
23.198.7.182; roles: dns-answer - ipv4:
23.198.7.183; roles: dns-answer - ipv4:
23.198.7.186; roles: dns-answer - ipv4:
23.215.55.133; roles: dns-answer, network-endpoint - ipv4:
23.215.55.137; roles: dns-answer - ipv4:
23.215.55.140; roles: dns-answer, network-endpoint - ipv4:
23.215.55.144; roles: dns-answer - ipv4:
23.221.22.68; roles: dns-answer, network-endpoint - ipv4:
23.221.22.87; roles: dns-answer - ipv4:
23.46.192.165; roles: dns-answer, network-endpoint - ipv4:
23.48.203.199; roles: dns-answer - ipv4:
23.48.203.200; roles: dns-answer - ipv4:
23.48.203.201; roles: dns-answer - ipv4:
23.48.203.203; roles: dns-answer, network-endpoint - ipv4:
23.48.203.204; roles: dns-answer - ipv4:
23.48.203.205; roles: dns-answer - ipv4:
23.48.203.206; roles: dns-answer - ipv4:
23.48.203.207; roles: dns-answer - ipv4:
23.48.203.208; roles: dns-answer, network-endpoint - ipv4:
23.48.203.210; roles: dns-answer - ipv4:
23.52.9.140; roles: dns-answer, network-endpoint - ipv4:
23.52.9.222; roles: dns-answer, network-endpoint - ipv4:
23.53.11.164; roles: dns-answer - ipv4:
23.53.11.165; roles: dns-answer - ipv4:
23.53.11.166; roles: dns-answer, network-endpoint - ipv4:
23.53.11.174; roles: dns-answer - ipv4:
23.53.11.175; roles: dns-answer - ipv4:
23.53.11.176; roles: dns-answer - ipv4:
23.53.11.177; roles: dns-answer - ipv4:
23.53.11.178; roles: dns-answer - ipv4:
23.53.11.179; roles: dns-answer - ipv4:
23.96.180.189; roles: dns-answer - ipv4:
239.255.255.250; roles: http-host, network-endpoint - ipv4:
40.126.29.11; roles: dns-answer - ipv4:
40.126.29.13; roles: dns-answer - ipv4:
40.126.29.14; roles: dns-answer, network-endpoint - ipv4:
40.126.29.5; roles: dns-answer - ipv4:
40.126.29.7; roles: dns-answer - ipv4:
40.126.29.8; roles: dns-answer - ipv4:
40.97.199.114; roles: dns-answer, network-endpoint - ipv4:
40.99.169.130; roles: dns-answer - ipv4:
52.109.0.142; roles: dns-answer, network-endpoint - ipv4:
52.109.0.91; roles: dns-answer, network-endpoint - ipv4:
52.109.20.47; roles: dns-answer, network-endpoint - ipv4:
52.109.6.53; roles: dns-answer, network-endpoint - ipv4:
52.113.194.132; roles: dns-answer, network-endpoint - ipv4:
52.191.219.104; roles: dns-answer, network-endpoint - ipv4:
52.96.121.130; roles: dns-answer - ipv4:
52.96.57.2; roles: dns-answer - ja3:
026e5ca865ce1f09da3a81d8a4e3effb; roles: tls-client-fingerprint - ja3:
091f51a7a1c3a4504a224cc081ce9cee; roles: tls-client-fingerprint - ja3:
1541459f873df5079e5cf7ff2c951ca0; roles: tls-client-fingerprint - ja3:
17e7f892bd0cb5409482f240c9ca2934; roles: tls-client-fingerprint - ja3:
1968767952a7e119234b43165830caaf; roles: tls-client-fingerprint - ja3:
258a5a1e95b8a911872bae9081526644; roles: tls-client-fingerprint - ja3:
292a36e182b3281950ca910a639428ec; roles: tls-client-fingerprint - ja3:
3c293bdf2a25c07559b560ba86debc77; roles: tls-client-fingerprint - ja3:
3c4eb72b882d4d1442c67ce73f1292a9; roles: tls-client-fingerprint - ja3:
46f5131e766d248db0248a86c494b71c; roles: tls-client-fingerprint - ja3:
54e118fb6c893793f9955efcc86a6132; roles: tls-client-fingerprint - ja3:
65005c9d9ae0f0ebeaf22c210571d482; roles: tls-client-fingerprint - ja3:
6764675c1ca709250abb58a1ed36b1a9; roles: tls-client-fingerprint - ja3:
6a5d235ee78c6aede6a61448b4e9ff1e; roles: tls-client-fingerprint - ja3:
6d162fd4fcafeafc279a32732bb583ab; roles: tls-client-fingerprint - ja3:
7dcea60ae4f829abcfa00bd64ab6f937; roles: tls-client-fingerprint - ja3:
930a922a3aeaa3a5590435675e8a4bb9; roles: tls-client-fingerprint - sha256:
47729774d301b648e888dee3b5e215d63adabb069700e1d81671fcbdfb80e4bb; roles: exported-object - sha256:
5e9a7996fe94d7be10595d7133748760bf8348198b71b7a50fd8affaa980ac61; roles: exported-object - url:
http://239.255.255.250:1900*; roles: http-request - url:
http://ip-api.com/json/; roles: http-request - url:
http://www.msftconnecttest.com/connecttest.txt; roles: http-request - user_agent:
Microsoft NCSI; roles: http-client - user_agent:
Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/73.0.3683.86 Safari/537.36; roles: http-client - exported object
json; SHA-25647729774d301b648e888dee3b5e215d63adabb069700e1d81671fcbdfb80e4bb; size 294 bytes - exported object
connecttest.txt; SHA-2565e9a7996fe94d7be10595d7133748760bf8348198b71b7a50fd8affaa980ac61; size 22 bytes
Actor similarity leads
- No actor lead was calculated.
Local enrichment and correlations
No match means unknown in this corpus. Local CTI may postdate the capture. Matches and shared infrastructure require review; no automatic promotion or attribution.
Snapshot: 32e9d5fcf77c5a465a8b3ffc21d77a172a52a6eb0c40ad986ced99d0994dd0d3; recorded 2026-09-19T12:09:03.146463+00:00; mode: local-only.
Coverage: {"matched_observables":0,"no_exact_match":157,"observable_limit":5000,"observables_checked":157,"observables_total":157,"prior_case_limit_reached":false,"prior_cases_checked":9,"truncated":false}
- Prior analysis
b79032a8-d69e-4ac1-bdd4-542473fa8e3bshares 45 observations. This does not establish a common campaign. - Prior analysis
faf041c3-70e0-4a01-8780-10917e5e187cshares 33 observations. This does not establish a common campaign. - Prior analysis
08324647-35af-4af2-8d82-4387eec03918shares 33 observations. This does not establish a common campaign. - Prior analysis
616a90fa-f15e-4fcb-8d56-7b8e0eff5785shares 11 observations. This does not establish a common campaign. - Prior analysis
459e119d-191f-49e8-85ea-c78f9de41826shares 27 observations. This does not establish a common campaign. - Prior analysis
7a2cfe72-f48d-4894-8a2d-8889cb3b11b2shares 37 observations. This does not establish a common campaign. - Prior analysis
81373b30-6a59-49d1-89b0-bad73ed19eaashares 31 observations. This does not establish a common campaign. - Prior analysis
38851ad7-b3a0-423d-ae89-3b7be4e4b908shares 35 observations. This does not establish a common campaign. - Prior analysis
bfccc426-aa9b-4007-8558-a66d37ecb90cshares 48 observations. This does not establish a common campaign. - External provider queries: 0. Not requested; no unknown indicator is classified as benign.
Coverage and limitations
- Packet and protocol facts are deterministic for the recorded analyzer manifest.
- Encrypted application payloads are not decrypted; only available metadata is reported.
- ATT&CK mappings and actor overlaps are candidates until analyst review and promotion.
- HTTP object inventory:
{"compact_objects":0,"complete":true,"detailed_objects":2,"exported_objects":2,"hashed_bytes":316,"hashed_objects":2,"omitted_unique_hashes":0,"returned_unique_hashes":2,"selection":"content-classified first, then size descending, SHA256 tie-break; deduplicated by full hash; overflow retains a compact hash index","unhashed_objects":0,"unique_hashes":2}. Compact overflow hashes are retained in JSON coverage and observables. - A directory subject is not necessarily a logged-in user; consult identity bindings in the JSON evidence.
- Rendered / available: findings 8/8, identities 6/6, observables 157/157, artifacts 2/2. Full returned inventory is in the JSON result.
Live enrichment and correlation validation
The actual IOC library contained 156,125 records. Exact typed matches: 0; source actor assertions: 0. Independent SQL agrees: IOC=True, actors=True. A miss is unknown in this corpus, not evidence of benignness. The earlier isolated corpus included publisher-reference records; its positive matches were not live-provider detections and are not comparable to natural coverage here. ATT&CK catalog candidates: 0; current-version catalog checks passed: True. Detection-strategy joins were checked independently. Cross-case links: 9; independently verified: True. These are shared observations, predominantly common service infrastructure, not common-campaign assertions.
| Passive local lookup target | Type | Local matches |
|---|---|---|
141.98.10.79 |
ipv4 | 0 |
github.com |
domain | 0 |
objects.githubusercontent.com |
domain | 0 |
47729774d301b648e888dee3b5e215d63adabb069700e1d81671fcbdfb80e4bb |
sha256 | 0 |
5e9a7996fe94d7be10595d7133748760bf8348198b71b7a50fd8affaa980ac61 |
sha256 | 0 |
Approved external passive enrichment
Completed 5/5 planned case indicators. Shared indicators reuse one saved lookup rather than consume provider quota repeatedly.
These lookups used the actual local application and were explicitly authorized. No PCAP or payload was uploaded, no private address was disclosed, no target was scanned, and no AI provider was invoked. Tier-two/three pivots query the local corpus only.
Provider intelligence was retrieved after the captures: current reputation, hosting and service observations do not establish historical causality. not_found means absent from that provider, not benign. Family labels and ATT&CK/actor leads remain source assertions awaiting review.
Historical coverage caveat: ThreatFox documents a six-month IOC expiration policy for its API since May 2025. That can limit these older exercises; it does not prove why any particular lookup missed. ThreatFox API policy.
141.98.10.79
Type: ip; request: 5.371 seconds; completed: 2026-09-19T14:11:34.331731+00:00. Persistence reread identical: True. Public provider summary. Platform triage score: 46/100 (suspicious); a heuristic priority, not calibrated probability. Graph: 11 nodes, 11 edges; local deeper-tier matches: 0/0.
| Provider | Outcome | Returned context / limitation |
|---|---|---|
| local-db | ok | Found 0 local IOC record(s). |
| virustotal | ok | 6 engines marked malicious and 1 suspicious; 49 harmless, 33 undetected. |
| threatfox | not_found | ThreatFox returned 0 record(s). Query status: no_result |
| malwarebazaar | skipped | MalwareBazaar is hash-focused; input is not a hash. |
| otx | ok | OTX returned 5 pulse(s). |
| urlscan | ok | urlscan returned 2 scan result(s). urlscan activity analysis found no obvious suspicious pattern. |
| greynoise | not_found | GreyNoise classification: unknown. Query status: not_found |
| abuseipdb | ok | AbuseIPDB confidence score: 66/100. |
| shodan | ok | Shodan returned 2 open port(s). |
| censys | ok | Censys host lookup returned 3 service(s). |
No actor lead returned. This does not establish absence of an actor.
github.com
Type: domain; request: 9.468 seconds; completed: 2026-09-19T14:11:58.429037+00:00. Persistence reread identical: True. Public provider summary. Platform triage score: 73/100 (suspicious); a heuristic priority, not calibrated probability. Graph: 75 nodes, 76 edges; local deeper-tier matches: 2/0.
| Provider | Outcome | Returned context / limitation |
|---|---|---|
| local-db | ok | Found 0 local IOC record(s). |
| virustotal | ok | No malicious detections in last analysis; 59 harmless, 30 undetected. |
| threatfox | ok | ThreatFox returned 17 record(s). Query status: ok |
| malwarebazaar | skipped | MalwareBazaar is hash-focused; input is not a hash. |
| otx | ok | OTX returned 0 pulse(s). |
| urlscan | ok | urlscan returned 10 scan result(s). urlscan activity analysis found 6 suspicious pattern(s). |
| greynoise | skipped | GreyNoise is IP-focused; input is not an IP. |
| abuseipdb | skipped | AbuseIPDB is IP-focused; input is not an IP. |
| shodan | skipped | Shodan host lookup is IP-focused; input is not an IP. |
| censys | ok | Censys web property lookup returned 2 record(s) for github.com. Broader Censys search requires an organization-enabled account and API role. |
No actor lead returned. This does not establish absence of an actor.
Shared-service caution: this is a broadly used legitimate service. A feed/search hit may concern a specific hosted path or unrelated customer; do not classify or block the whole service based on this lookup.
objects.githubusercontent.com
Type: domain; request: 8.155 seconds; completed: 2026-09-19T14:12:17.114432+00:00. Persistence reread identical: True. Public provider summary. Platform triage score: 32/100 (needs review); a heuristic priority, not calibrated probability. Graph: 24 nodes, 32 edges; local deeper-tier matches: 0/0.
| Provider | Outcome | Returned context / limitation |
|---|---|---|
| local-db | ok | Found 0 local IOC record(s). |
| virustotal | ok | No malicious detections in last analysis; 55 harmless, 34 undetected. |
| threatfox | not_found | ThreatFox returned 0 record(s). Query status: no_result |
| malwarebazaar | skipped | MalwareBazaar is hash-focused; input is not a hash. |
| otx | ok | OTX returned 0 pulse(s). |
| urlscan | ok | urlscan returned 10 scan result(s). urlscan activity analysis found 2 suspicious pattern(s). |
| greynoise | skipped | GreyNoise is IP-focused; input is not an IP. |
| abuseipdb | skipped | AbuseIPDB is IP-focused; input is not an IP. |
| shodan | skipped | Shodan host lookup is IP-focused; input is not an IP. |
| censys | ok | Censys web property lookup returned 2 record(s) for objects.githubusercontent.com. Broader Censys search requires an organization-enabled account and API role. |
No actor lead returned. This does not establish absence of an actor.
Shared-service caution: this is a broadly used legitimate service. A feed/search hit may concern a specific hosted path or unrelated customer; do not classify or block the whole service based on this lookup.
47729774d301b648e888dee3b5e215d63adabb069700e1d81671fcbdfb80e4bb
Type: hash; request: 3.388 seconds; completed: 2026-09-19T14:12:32.347099+00:00. Persistence reread identical: True. Public provider summary. Platform triage score: 0/100 (low signal); a heuristic priority, not calibrated probability. Graph: 1 nodes, 0 edges; local deeper-tier matches: 0/0.
| Provider | Outcome | Returned context / limitation |
|---|---|---|
| local-db | ok | Found 0 local IOC record(s). |
| virustotal | ok | No malicious detections in last analysis; 0 harmless, 62 undetected. |
| VirusTotal classification/name hints | unreviewed; may include benign filenames | json |
| threatfox | not_found | ThreatFox returned 0 record(s). Query status: no_result |
| malwarebazaar | not_found | MalwareBazaar returned 0 sample record(s). Query status: hash_not_found |
| otx | ok | OTX returned 0 pulse(s). |
| urlscan | ok | urlscan returned 0 scan result(s). urlscan activity analysis found no obvious suspicious pattern. |
| greynoise | skipped | GreyNoise is IP-focused; input is not an IP. |
| abuseipdb | skipped | AbuseIPDB is IP-focused; input is not an IP. |
| shodan | skipped | Shodan host lookup is IP-focused; input is not an IP. |
| censys | skipped | Censys host and search pivots support IP, domain, and URL inputs. |
No actor lead returned. This does not establish absence of an actor.
5e9a7996fe94d7be10595d7133748760bf8348198b71b7a50fd8affaa980ac61
Type: hash; request: 7.910 seconds; completed: 2026-09-19T14:12:56.863653+00:00. Persistence reread identical: True. Public provider summary. Platform triage score: 6/100 (low signal); a heuristic priority, not calibrated probability. Graph: 19 nodes, 21 edges; local deeper-tier matches: 0/0.
| Provider | Outcome | Returned context / limitation |
|---|---|---|
| local-db | ok | Found 0 local IOC record(s). |
| virustotal | ok | No malicious detections in last analysis; 0 harmless, 61 undetected. |
| VirusTotal classification/name hints | unreviewed; may include benign filenames | connecttest.txt |
| threatfox | not_found | ThreatFox returned 0 record(s). Query status: no_result |
| malwarebazaar | not_found | MalwareBazaar returned 0 sample record(s). Query status: hash_not_found |
| otx | ok | OTX returned 1 pulse(s). |
| urlscan | ok | urlscan returned 10 scan result(s). urlscan activity analysis found no obvious suspicious pattern. |
| greynoise | skipped | GreyNoise is IP-focused; input is not an IP. |
| abuseipdb | skipped | AbuseIPDB is IP-focused; input is not an IP. |
| shodan | skipped | Shodan host lookup is IP-focused; input is not an IP. |
| censys | skipped | Censys host and search pivots support IP, domain, and URL inputs. |
No actor lead returned. This does not establish absence of an actor.
Packet-to-provider evidence links
The live case contains 5 explicitly linked, exact-type/value PCAP observables. 3 retain frame references; remaining exported-object hashes retain native object IDs and capture-export provenance, not an exact packet-frame map. Every link retains the capture checksum, points to a saved provider investigation, and was reread from the real API. Case actor associations remain empty. Verified graph links.
| Prior analysis | Shared count | Example observations |
|---|---|---|
| b79032a8-d69e-4ac1-bdd4-542473fa8e3b | 45 | a1834.dscg2.akamai.net, api.msn.com, assets.msn.com, client.wns.windows.com, default.exp-tas.com |
| faf041c3-70e0-4a01-8780-10917e5e187c | 33 | a1834.dscg2.akamai.net, api.msn.com, arc.msn.com, assets.msn.com, client.wns.windows.com |
| 08324647-35af-4af2-8d82-4387eec03918 | 33 | a1834.dscg2.akamai.net, api.msn.com, assets.msn.com, client.wns.windows.com, default.exp-tas.com |
| 616a90fa-f15e-4fcb-8d56-7b8e0eff5785 | 11 | fd.api.iris.microsoft.com, login.microsoftonline.com, mobile.events.data.microsoft.com, odc.officeapps.live.com, settings-win.data.microsoft.com |
| 459e119d-191f-49e8-85ea-c78f9de41826 | 27 | a1834.dscg2.akamai.net, api.msn.com, assets.msn.com, client.wns.windows.com, config.edge.skype.com |
| 7a2cfe72-f48d-4894-8a2d-8889cb3b11b2 | 37 | a1834.dscg2.akamai.net, api.msn.com, assets.msn.com, client.wns.windows.com, config.edge.skype.com |
| 81373b30-6a59-49d1-89b0-bad73ed19eaa | 31 | a1834.dscg2.akamai.net, api.msn.com, assets.msn.com, client.wns.windows.com, config.edge.skype.com |
| 38851ad7-b3a0-423d-ae89-3b7be4e4b908 | 35 | api.msn.com, assets.msn.com, client.wns.windows.com, config.edge.skype.com, ecs.office.com |
| bfccc426-aa9b-4007-8558-a66d37ecb90c | 48 | a1834.dscg2.akamai.net, api-msn-com.a-0003.a-msedge.net, api.msn.com, assets.msn.com, client.wns.windows.com |
Comparison with publisher answers and earlier runs
The following comparison is separate from native inference. It measures availability of selected facts, not 100% incident-diagnosis accuracy.
V2 missed meaningful non-web behavior. V3 reports the literal structured software/host/account announcement and sustained custom TCP flow. STRRAT is directly visible as a self-reported label, not cryptographically authenticated attribution. File-sharing domains and public-IP services are not inherently malicious.
| Client | Field | Packet-verified expected value | Live |
|---|---|---|---|
| 172.16.1.66 | ip | 172.16.1.66 | True |
| 172.16.1.66 | mac | 00:1e:64:ec:f3:08 | True |
| 172.16.1.66 | hostname | DESKTOP-SKBR25F | True |
| 172.16.1.66 | account | ccollier | True |
Declared IOC subset available: 5/5. Not exhaustive recall.
141.98.10.79: presentgithub.com: presentobjects.githubusercontent.com: presentrepo1.maven.org: presentip-api.com: present- Reference conflict: published
141.98.10.69, packet-supported141.98.10.79. Actual TCP/12132 endpoint is .79; frame 9119 includes the literal STRRAT software label.
Complete-flow checks and evidence links
Browser history/open, Markdown export and investigation transfer: True. Investigation ID: 087a87a3-97fa-4ca9-b481-e3d08ce92d90.
Investigation transfers preserve a bounded preview, total count, source-analysis URL and hashes. Complete evidence remains server-side. TTP-overlap leads are not inserted into actor associations.
PDF export: HTTP 200, including an explicitly non-authoritative packet-evidence appendix. STIX export remains HTTP 409 until a human completes review/promotion; this is a successful safety check.
- Full native JSON, independent database audit, native Markdown, PDF.
- Browser screenshot, investigation evidence.
Follow-up priorities
Validate high/medium findings using frame/stream evidence; obtain process and endpoint telemetry for execution, persistence and credential-theft hypotheses. Provider data above is current-time external context, not historical execution evidence. Review shared-CDN matches for specificity. Do not execute exported objects or treat encrypted payload metadata as decrypted evidence.
